Home > Products > Integrated Circuits (ICs) > Embedded - Microcontrollers > R7F7010223AFP#AA2
Renesas Electronics America Inc

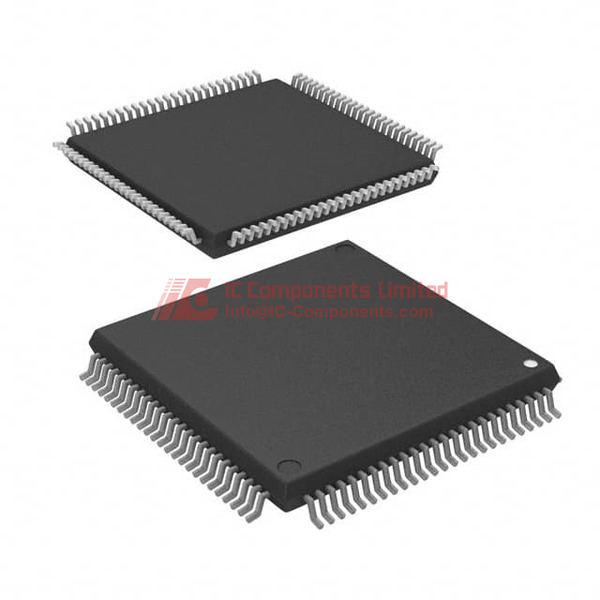

559 100-LQFP.jpg ImageView larger image
Image may be representation.
See specs for product details.

R7F7010223AFP#AA2

Manufacturer Part Number:
R7F7010223AFP#AA2
Manufacturer / Brand
Renesas Electronics America Inc
Part of Description:
IC MCU 32BIT 384KB FLSH 100LFQFP
Datasheets:
R7F7010223AFP#AA2(1).pdfR7F7010223AFP#AA2(2).pdfR7F7010223AFP#AA2(3).pdf
Lead Free Status / RoHS Status:
ROHS3 Compliant
Stock Condition:
New original, 9326 pcs Stock Available.
ECAD Model:
Ship From:
Hong Kong
Shipment Way:
DHL/Fedex/TNT/UPS

Inquiry Online

Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Info@IC-Components.com
Part Number
Manufacturer
Require Quantity
Target Price(USD)
Company Name
Contact Name
E-mail
Phone
Message
Please enter Verify Code and click "Submit"
Part Number R7F7010223AFP#AA2
Manufacturer / Brand Renesas Electronics America Inc
Stock Quantity 9326 pcs Stock
Category Integrated Circuits (ICs) > Embedded - Microcontrollers
Description IC MCU 32BIT 384KB FLSH 100LFQFP
Lead Free Status / RoHS Status: ROHS3 Compliant
Voltage - Supply (Vcc/Vdd) 3V ~ 5.5V
Supplier Device Package 100-LFQFP (14x14)
Speed 80MHz
Series RH850/F1L
RAM Size 48K x 8
Program Memory Type FLASH
Program Memory Size 384KB (384K x 8)
Peripherals DMA, PWM, WDT
Package / Case 100-LQFP
Package Tray
Oscillator Type Internal
Operating Temperature -40°C ~ 105°C (TA)
Number of I/O 81
Mounting Type Surface Mount
EEPROM Size 32K x 8
Data Converters A/D 20x10b, 16x12b
Core Size 32-Bit Single-Core
Core Processor RH850G3K
Connectivity CANbus, CSI, I²C, LINbus, SPI, UART/USART
Base Product Number R7F7010223

Packaging & ESD

Industry-standard static shielding packaging is used for electronic components.Anti-static, light-transparent materials allow easy identification of ICs and PCB assemblies.
The packaging structure provides electrostatic protection based on Faraday cage principles.This helps protect sensitive components from static discharge during handling and transportation.


All products are packed in ESD-safe anti-static packaging. Outer packaging labels include part number, brand, and quantity for clear identification. Goods are inspected prior to shipment to ensure proper condition and authenticity.

ESD protection is maintained throughout packing, handling, and global transportation. Secure packaging provides reliable sealing and resistance during transit. Additional cushioning materials are applied when required to protect sensitive components.

QC(Part Testing by IC Components)Quality Warranty

We can offer worldwide express delivery service, such as DHLor FedEx or TNT or UPS or other forwarder for shipment.

Global Shipment by DHL/FedEx/TNT/UPS

Shipping Fees reference DHL/FedEx
1). You can offer your express delivery account for shipment, ifyou haven’t any express account for shipment, we can offer our account inadvance.
2). Use our account for shipment, Shipment charges(Reference DHL/FedEx, Different Countries has different price.)
Shipment charges： (Reference DHL and FedEX)
Weight(KG): 0.00kg-1.00kg Price(USD$) : USD$60.00
Weight(KG): 1.00kg-2.00kg Price(USD$) : USD$80.00
* The price of cost is reference with DHL/FedEx. The detail charges, please contact us. Different country the express charges are different.



We accept the payment terms: Telegraphic Transfer(T/T), Credit Card, PayPal and Western Union.

PayPal:

PayPal Bank Information:
Company Name : IC COMPONENTS LTD
Paypal ID: PayPal@IC-Components.com

BANK TRANSFAR (Telegraphic Transfer)

Payment For Telegraphic Transfers:
Company Name : IC COMPONENTS LTD Beneficiary Account Number : 549-100669-701
Beneficiary Bank name : Bank of Communications (Hong Kong) Ltd Beneficiary Bank Code : 382 (for local payment)
Beneficiary Bank SWIFT : COMMHKHK
Beneficiary Bank Address : Tsuen Wan Market Street Branch 53 Market Street, Tsuen Wan N.T., Hong Kong

Any inquires or questions, please kindly contact us Email: Info@IC-Components.com


R7F7010223AFP#AA2 Product Details:

The Renesas R7F7010223AFP#AA2 is a sophisticated 32-bit microcontroller from the RH850/F1L series, designed to address the demanding requirements of automotive and industrial control applications. This embedded microcontroller integrates the powerful RH850G3K core processor operating at 80MHz, delivering robust single-core performance for real-time control systems.

The device features substantial memory resources with 384KB of flash program memory and 48KB of RAM, complemented by 32KB of EEPROM for non-volatile data storage. This memory configuration enables complex application development while providing adequate space for data logging and parameter storage. The microcontroller incorporates comprehensive analog capabilities through its dual analog-to-digital converter system, featuring 20 channels of 10-bit resolution and 16 channels of 12-bit resolution, making it ideal for precision sensor interfacing and signal processing applications.

Connectivity options are extensive, supporting multiple communication protocols including CANbus for automotive networks, LINbus for cost-effective automotive communication, SPI and CSI for high-speed serial data transfer, I²C for multi-device communication, and UART/USART for standard serial communication. This diverse connectivity suite addresses the complex communication requirements found in modern automotive and industrial systems.

The device provides 81 I/O pins in a compact 100-LFQFP package measuring 14x14mm, offering high pin density while maintaining manageable board space requirements. Essential peripherals include DMA controllers for efficient data transfer, PWM modules for motor control and power management applications, and watchdog timer functionality for system reliability. The internal oscillator eliminates the need for external timing components, simplifying system design and reducing component count.

Operating across an extended temperature range of -40°C to 105°C with a flexible supply voltage range of 3V to 5.5V, this microcontroller is engineered for harsh automotive and industrial environments. The surface-mount LQFP package facilitates automated assembly processes while ensuring reliable electrical connections. RoHS3 compliance ensures environmental responsibility and regulatory adherence.

Primary applications include automotive body control modules, engine management systems, industrial automation controllers, motor drive systems, and embedded control applications requiring robust communication capabilities. The combination of processing power, memory resources, and comprehensive peripheral integration makes it particularly suitable for applications demanding real-time performance with multiple communication interfaces.

Equivalent and alternative models within the RH850 family include the R7F7010213AFP for applications requiring less memory, the R7F7010233AFP offering expanded memory capacity, and the R7F7010243AFP providing additional peripheral features. Competitive alternatives from other manufacturers include the Infineon AURIX TC2xx series microcontrollers, STMicroelectronics SPC5 automotive microcontrollers, NXP S32K series automotive MCUs, and Microchip dsPIC33 series controllers, each offering similar 32-bit performance with varying peripheral configurations and memory options tailored to specific automotive and industrial control requirements.

R7F7010223AFP#AA2 Key Technical Attributes

Manufacturer: Renesas Electronics Corporation

Part Number: R7F7010223AFP#AA2

Main Category: 32-bit Embedded Microcontrollers

R7F7010223AFP#AA2 Packing Size

Type: 100-LFQFP (Low-profile Fine Pitch Quad Flat Package) with body dimensions of 14mm x 14mm.

Material: Standard surface-mount plastic encapsulation designed for durability and efficient heat dispersion.

Pin Configuration: 100 pins offering extensive I/O capability with up to 81 programmable inputs or outputs.

R7F7010223AFP#AA2 Application

This microcontroller is optimal for automotive and industrial embedded applications requiring robust processing power, real-time control, and extensive connectivity, such as advanced engine management, automotive body control, and safety systems. It is equally suited to industrial automation and complex control systems.

R7F7010223AFP#AA2 Features

The R7F7010223AFP#AA2 is driven by an RH850G3K 32-bit single-core processor, achieving speeds up to 80MHz, ensuring high-performance computing for demanding applications. It integrates 384KB of embedded FLASH memory for code storage, 48KB of RAM for rapid data access, and 32KB of EEPROM for reliable non-volatile data retention. This microcontroller features advanced connectivity options, including CANbus, LINbus, SPI, UART/USART, CSI, and IC interfaces, making it adaptable for highly networked environments. Peripheral capabilities include DMA for direct memory access, PWM for precise control outputs, and a windowed watchdog timer (WDT) for system reliability. Its comprehensive data converter options include 20 channels of 10-bit A/D converters and 16 channels of 12-bit A/D converters, supporting precise analog signal measurements. With an internal oscillator and a wide supply voltage operating range of 3V to 5.5V, it provides design flexibility for various power architectures.

R7F7010223AFP#AA2 Quality and Safety Features

The R7F7010223AFP#AA2 is compliant with RoHS 3 environmental standards, ensuring lead-free and environmentally safe manufacturing. Integrated watchdog timers and robust error detection mechanisms provide enhanced reliability and system integrity, meeting stringent automotive and industrial quality requirements. The extended operating temperature range of -40°C to 105°C makes it suitable for harsh operating environments, ensuring consistent performance and protection against thermal stresses.

R7F7010223AFP#AA2 Compatibility

Designed within the Renesas RH850/F1L series, this MCU is compatible with development platforms and software frameworks built around this popular architecture. Its surface mount LFQFP package supports automated PCB assembly, and its pin compatibility within the RH850 family aids in seamless system upgrades and scalability in design revisions.

R7F7010223AFP#AA2 Datasheet PDF

Our website offers the most authoritative and comprehensive datasheet for the R7F7010223AFP#AA2. For in-depth technical details, electrical specifications, and recommended application circuits, we strongly encourage you to download the official PDF from this page to ensure your design uses the latest and most accurate information.

Quality Distributor

IC-Components is recognized as a premium distributor of Renesas components. For trusted sourcing, rapid delivery, and competitive pricing on the R7F7010223AFP#AA2 and related RH850/F1L series products, request your quote today on our website. Experience our commitment to quality, authenticity, and customer service—your reliable partner for all Renesas embedded solutions.

Frequently Asked Questions

How should I select the appropriate power supply voltage for the Renesas R7F7010223AFP#AA2 microcontroller to ensure reliable operation?
The R7F7010223AFP#AA2 operates with a supply voltage (Vcc/Vdd) range of 3V to 5.5V. To select the optimal power supply, consider your application's required operating voltage and peripheral compatibility. Ensure that the power supply provides stable and low-noise voltage within this range, especially for high-speed or sensitive analog functions. Power sequencing and decoupling capacitors are critical for preventing voltage dips that could cause system resets or data corruption.
Can the Renesas R7F7010223AFP#AA2 be directly replaced with a similar microcontroller from another manufacturer without redesigning the circuitry?
Direct replacement is generally not recommended due to differences in pinout, peripheral configuration, and internal architecture. The R7F7010223AFP#AA2 features specific peripherals, memory sizes, and I/O capabilities tailored to its RH850G3K core. To ensure seamless migration, validate pin compatibility, peripheral functions, voltage levels, and timing requirements. Consider using the manufacturer's migration guides or evaluation boards before physical replacement.
What considerations should I keep in mind when integrating the R7F7010223AFP#AA2 with external CANbus or LINbus transceivers in my automotive application?
When integrating with CANbus or LINbus transceivers, confirm that the microcontroller’s UART or dedicated communication peripherals support the data rates used in your system. Proper termination resistors and adequate impedance matching are essential for signal integrity. Additionally, ensure the supply voltage and I/O levels are compatible with transceiver requirements. Use existing hardware abstraction layers or middleware to handle protocol compliance and error management effectively.
Is the internal oscillator of the R7F7010223AFP#AA2 sufficient for high-precision timing in my industrial automation system?
The R7F7010223AFP#AA2 uses an internal oscillator that provides basic clocking but may lack the frequency stability required for high-precision timing applications. For precise timing, consider adding an external crystal or oscillator module if supported, or use a clock recovery method. Evaluate the oscillator's stability specifications and account for temperature variations (-40°C to 105°C) that could affect frequency accuracy.
Are there any specific design constraints or best practices for handling the 81 I/O pins of the R7F7010223AFP#AA2 in a complex embedded system?
When designing interfaces for all 81 I/O pins, ensure proper impedance matching, signal integrity, and EMI considerations. Use dedicated I/O planning to prevent conflicts in multifunction pins. Implement adequate decoupling and shielding, especially in noisy environments. When multiple peripherals share I/O lines, consider bus multiplexing or tri-state configurations to avoid interference. During PCB layout, maintain shortest traces for high-speed signals and adhere to the recommended placement guidelines.
What are the main factors to consider when selecting the R7F7010223AFP#AA2 for long-term industrial deployment?
For industrial applications, verify that the operating temperature range (-40°C to 105°C) aligns with your environment. The RoHS3 compliance ensures environmental safety but check supply chain stability to prevent obsolescence issues. Ensure the microcontroller's reliability features, such as embedded Watchdog Timer (WDT) and robust power management, are configured properly. Regular testing and validation under real-world conditions are essential for maintaining system longevity.
How does the 384KB Flash program memory of the R7F7010223AFP#AA2 impact my firmware design and update procedures?
The sizable Flash memory supports complex firmware and multiple application layers, allowing for feature-rich designs. During firmware updates, ensure proper access control and error checking to prevent corruptions. Use sector-based updates or dual-bank memory if supported to enable reliable over-the-air or field updates. Consider the erase/write cycle limits and incorporate routines to monitor flash endurance and wear leveling over time.
Can I use the 20-channel 10-bit and 16-channel 12-bit A/D converters of the R7F7010223AFP#AA2 for simultaneous sampling in a multi-sensor measurement system?
The integrated A/D converters are designed for multiple channels but may not support true simultaneous sampling. Check the timing and conversion mode information to determine if they meet your sample rate and synchronization requirements. For truly simultaneous readings, consider external sample-and-hold circuitry or specialized ADC modules. Proper sequencing and calibration are vital for accurate multi-sensor data acquisition.
What are the key considerations for designing a low-noise power supply and decoupling network for the R7F7010223AFP#AA2 in sensitive analog or communication modules?
Use regulated, low-noise power sources with adequate filtering components such as LC filters and decoupling capacitors close to the Vcc pins. Employ separate power domains if possible for analog and digital sections. Select ceramic capacitors with low Equivalent Series Resistance (ESR) and place them close to the device pins. Proper PCB grounding and star grounding techniques reduce noise coupling and improve signal integrity in sensitive circuits.
How does the choice of the R7F7010223AFP#AA2 impact the overall system design in terms of package size and thermal management?
The 100-LFQFP package (14x14 mm) provides ample I/O connectivity but requires careful PCB layout to manage heat dissipation, especially at higher operating frequencies and power levels. Ensure sufficient copper area and heat sinking if necessary. The surface-mount design simplifies automated assembly but necessitates precise soldering practices. Adequate spacing and thermal vias can help maintain optimal operating temperatures and prolong device lifespan.
