The SPC5668EK0VMG from Freescale/NXP Semiconductors is a high-performance 32-bit microcontroller integrated circuit designed for demanding embedded applications requiring robust processing capabilities and extensive connectivity options. This sophisticated MCU features an e200z650 core processor operating at 116MHz with a 32-bit single-core architecture, providing substantial computational power for complex control and processing tasks. The device incorporates an impressive 2MB of flash program memory (organized as 2M x 8) alongside 128K x 8 RAM, delivering ample storage for sophisticated firmware and real-time data handling requirements. The microcontroller addresses critical design challenges in automotive, industrial control, and embedded systems where reliable operation across extreme temperature ranges (-40°C to 105°C) is essential, while the wide supply voltage range of 3V to 5.5V offers flexibility in power system design and compatibility with various power architectures.
Key specifications include 155 I/O pins for extensive peripheral interfacing, comprehensive connectivity options encompassing CANbus, LINbus, SCI, SPI, and I²C protocols enabling seamless integration into networked systems, and an internal oscillator that simplifies clock generation. The device features 64 channels of 10-bit analog-to-digital conversion for precise sensor interfacing and signal acquisition, while integrated peripherals including DMA for efficient data transfers, PWM for motor control and signal generation, watchdog timer (WDT) for system reliability, and power-on reset (POR) for controlled startup enhance system functionality. The 208-pin BGA package (17x17mm) in a surface-mount configuration optimizes board space utilization while providing high pin density for complex applications, and the device is RoHS3 compliant, meeting current environmental standards.
Primary advantages include the powerful processing core suitable for real-time control applications, extensive memory resources supporting complex algorithms, comprehensive communication interfaces ideal for automotive and industrial networking, wide operating temperature range ensuring reliability in harsh environments, and rich peripheral set reducing external component requirements. This microcontroller belongs to the MPC56xx Qorivva series and finds primary application in automotive body electronics, engine management systems, industrial automation and control, motor control applications, gateway and networking devices, and safety-critical embedded systems. Equivalent and alternative models within the same family include the SPC5668GK0VMG (similar specifications with potential package or grade variations), other MPC56xx Qorivva series members like SPC5674K, SPC5675K, and SPC5676K offering different memory configurations and peripheral sets, as well as competitive alternatives from STMicroelectronics' SPC5 series, Infineon's AURIX TC2xx family, and Renesas' RH850 series, all targeting similar automotive and industrial microcontroller applications with comparable performance characteristics.
SPC5668EK0VMG Key Technical Attributes
32-Bit Single-Core e200z650
2MB Flash, 128KB RAM
155 I/O, 116MHz Speed
SPC5668EK0VMG Packing Size

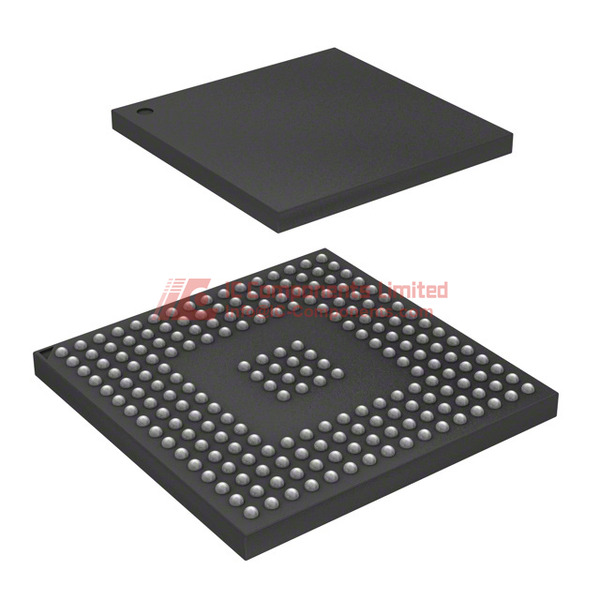

The SPC5668EK0VMG comes in a robust 208-BGA (Ball Grid Array) package with dimensions of 17mm x 17mm. This configuration offers 155 available I/O pins, suitable for dense PCB designs and requiring surface mount technology for installation. The tray packaging further ensures secure transport and simplified handling during automated assembly. The device’s thermal rating supports sustained operation from -40°C to +105°C, making it durable for industrial environments. Its power requirement ranges from 3V to 5.5V, offering flexibility for various system voltages.
SPC5668EK0VMG Application
This microcontroller is engineered for demanding embedded control applications, including automotive systems, industrial equipment, and advanced robotics. It is ideal for tasks requiring high-speed data handling, real-time control, and robust communication across multiple protocols such as CANbus, LINbus, and SPI.
SPC5668EK0VMG Features
The Freescale/NXP SPC5668EK0VMG integrates advanced peripherals like DMA for efficient data transfer, Power-On Reset (POR), Pulse Width Modulation (PWM) for precise motor control, and Watchdog Timer (WDT) for system reliability. The internal oscillator simplifies clock circuitry and reduces PCB complexity. With built-in 64-channel 10-bit A/D converters, the device enables high-resolution analog data acquisition. Its 32-bit e200z650 core delivers up to 116 MHz performance, supporting intensive embedded computations. Program memory is generous at 2MB Flash, and 128KB RAM ensures rapid data access. Compliance with RoHS3 assures eco-friendly manufacturing and materials. The package’s BGA format optimizes electrical and thermal characteristics for stable, long-term operation.
SPC5668EK0VMG Quality and Safety Features
SPC5668EK0VMG meets RoHS3 standards for hazardous substance reduction, promoting safe and environmentally conscious production. The Power-On Reset and Watchdog Timer provide hardware-level fault tolerance and system protection, essential for mission-critical applications. Extended temperature range guarantees secure operation under extreme temperatures, while the tray packaging protects against electrostatic discharge and mechanical damage during shipping.
SPC5668EK0VMG Compatibility
Versatile connectivity options such as CANbus, IC, LINbus, SCI, and SPI make this microcontroller compatible with a wide array of interface standards, widely used across automotive, industrial, and consumer electronics sectors. Its 32-bit architecture and standardized MPC56xx Qorivva series assure seamless integration with existing hardware and software ecosystems.
SPC5668EK0VMG Datasheet PDF
For the most authoritative and up-to-date technical information on SPC5668EK0VMG, we strongly encourage customers to download the official datasheet directly from our website. Accessing the datasheet here ensures you receive verified design details, comprehensive specifications, and application notes tailored to the current product revision.
