The Micrel / Microchip Technology TC7660EOA713 is a sophisticated charge pump switching regulator IC designed to provide versatile voltage conversion in compact electronic systems. This integrated circuit stands out in the PMIC (Power Management Integrated Circuit) category, specifically addressing voltage regulation challenges through an innovative charge pump topology.
The device enables flexible voltage conversion, capable of generating either positive or negative output voltages with remarkable efficiency. It operates across a wide input voltage range of 1.5V to 10V, making it suitable for various portable and low-power electronic applications. The IC can produce output voltages at -Vin or 2Vin, delivering up to 20mA of current, which makes it ideal for powering small electronic circuits and components.

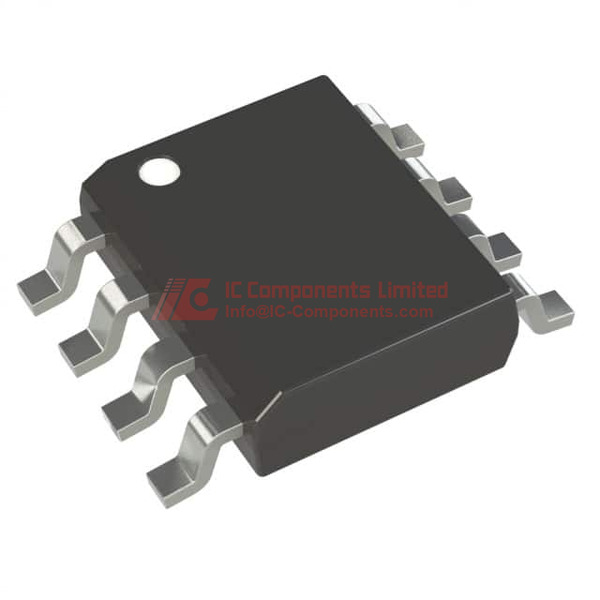

Engineered for robust performance, this switching regulator functions effectively within an operating temperature range of -40°C to 85°C, ensuring reliability in diverse environmental conditions. Its surface-mount 8-SOIC package (0.154" width) facilitates compact design integration and supports modern electronics manufacturing processes.
Key advantages include its lead-free and RoHS-compliant design, low-voltage operation, and efficient charge pump switching mechanism operating at 10kHz. The IC's ratiometric function provides precise voltage conversion, making it particularly useful in applications requiring consistent power management.
Potential application areas encompass portable electronics, sensor systems, low-power embedded devices, communication equipment, and compact electronic instrumentation where space-efficient and energy-efficient power conversion is critical.
Equivalent or alternative models that share similar characteristics include the Maxim MAX1673, Linear Technology LTC1044, and Texas Instruments TL7660. These alternatives offer comparable charge pump switching capabilities and are often used in similar electronic design scenarios.
The TC7660EOA713 represents an elegant solution for engineers seeking a compact, efficient voltage conversion component with flexible output configuration and broad operational compatibility.
TC7660EOA713 Key Technical Attributes
Manufacturer: Micrel / Microchip Technology
Part Number: TC7660EOA713
Package / Case: 8-SOIC
TC7660EOA713 Packing Size
Packaging: Cut Tape (CT)
Type: 8-SOIC
Material: Plastic encapsulated
Supplier Device Package: 8-SOIC
Pin Configuration: SOP8
Thermal Characteristics: Operating Temperature -40°C ~ 85°C
Electrical Properties: Output Voltage -Vin, 2Vin; Current - Output 20mA; Voltage - Input (Max) 10V
TC7660EOA713 Application
The TC7660EOA713 from Micrel / Microchip Technology is primarily used in applications that require voltage regulation and conversion. It is suitable for devices where a fixed output voltage is needed from a varied input voltage, including battery-powered devices, portable electronics, and other low-power applications.
TC7660EOA713 Features
The TC7660EOA713 is a highly efficient Charge Pump Switching Regulator IC that delivers a fixed output of either -Vin or 2Vin with an output current of 20mA. It operates over a wide input voltage range from 1.5V to 10V and features a frequency of switching at 10kHz. Its main function includes ratiometric conversion ensuring stability and reliability in performance. This model does not include a synchronous rectifier.
TC7660EOA713 Quality and Safety Features
The device complies with RoHS standards, being lead-free and RoHS compliant. It also has a moisture sensitivity level of 1, which indicates unlimited floor life under normal environmental conditions. The surface mount design of the TC7660EOA713 enables secure placement on circuit boards with minimal risk of detachment.
TC7660EOA713 Compatibility
The TC7660EOA713 is designed for use in systems that need stable voltage regulation and simple integration with existing circuit designs due to its surface mount design. It is compatible with various electronic assemblies due to its operational temperature range and voltage input flexibility.
TC7660EOA713 Datasheet PDF
For complete technical details, specifications, and application guidelines, visit our website to access the most authoritative datasheet for the TC7660EOA713. We recommend that customers download the datasheet directly from the product page to ensure you have all the necessary information for utilizing this IC effectively.
