The ATSAMD20J18A-AUT is a sophisticated 32-bit microcontroller from Microchip Technology's SAM D20J series, engineered to deliver robust performance in embedded system applications. This advanced integrated circuit combines powerful processing capabilities with comprehensive peripheral integration, making it an ideal solution for developers seeking a balance between functionality and efficiency in their designs.
At its core, this microcontroller features an ARM Cortex-M0+ processor operating at 48MHz, providing substantial computational power while maintaining excellent energy efficiency. The device incorporates 256KB of flash program memory organized as 256K x 8, offering ample space for complex application code and data storage, complemented by 32KB of RAM (32K x 8) for dynamic data processing and temporary storage needs. This memory configuration addresses the design challenge of accommodating increasingly sophisticated embedded applications that require both substantial code space and sufficient working memory for real-time operations.
The ATSAMD20J18A-AUT comes in a compact 64-LQFP (10x10mm) surface mount package, which presents an optimal solution for space-constrained designs while providing 52 general-purpose I/O pins for extensive connectivity options. This package design addresses the common challenge of maximizing functionality within limited board space, making it particularly suitable for portable devices, industrial controls, and consumer electronics where miniaturization is critical. The device operates reliably across an industrial temperature range of -40°C to 85°C, ensuring consistent performance in harsh environmental conditions.
The microcontroller's comprehensive peripheral set includes multiple connectivity interfaces such as I²C, SPI, and UART/USART, enabling seamless communication with various sensors, displays, and other system components. Data conversion capabilities are particularly noteworthy, featuring 20 channels of 12-bit analog-to-digital conversion and one 10-bit digital-to-analog converter, which effectively addresses the challenge of interfacing with analog sensors and generating analog control signals without requiring external conversion circuitry. Essential system management features include brown-out detection/reset, power-on reset (POR), and a watchdog timer (WDT), providing robust system reliability and fault recovery mechanisms.
Operating from a flexible voltage supply range of 1.62V to 3.6V, this microcontroller accommodates various power design requirements and battery-powered applications, while the internal oscillator eliminates the need for external timing components, simplifying board design and reducing bill-of-materials costs. The device is RoHS3 compliant, meeting current environmental regulations and ensuring compatibility with modern manufacturing processes. Available in tape and reel packaging with a quantity of 7,361 units, it's well-suited for high-volume production environments.
Primary application areas include industrial automation systems, building control systems, consumer electronics, portable medical devices, smart home applications, motor control systems, sensor networks, and battery-powered IoT devices. The combination of processing power, peripheral integration, and low power consumption makes it particularly effective in applications requiring real-time control, data acquisition, and communication capabilities.
Regarding equivalent and alternative models, the SAM D20 family offers several compatible options including the ATSAMD20J17A (128KB flash variant), ATSAMD20J16A (64KB flash variant), and ATSAMD20J15A (32KB flash variant), all sharing the same pin configuration but differing in memory capacity. Alternative series within Microchip's portfolio include the ATSAMD21 series, which offers enhanced features and USB connectivity, and the ATSAMD10 series for more cost-sensitive applications. Competitive alternatives from other manufacturers include STMicroelectronics' STM32F0 series, NXP's LPC11xx series, and Silicon Labs' EFM32 Zero Gecko family, all featuring ARM Cortex-M0+ cores with comparable specifications and peripheral sets.
ATSAMD20J18A-AUT Key Technical Attributes
Manufacturer: Micrel / Microchip Technology
Part Number: ATSAMD20J18A-AUT
Operating Temperature: -40°C ~ 85°C
ATSAMD20J18A-AUT Packing Size

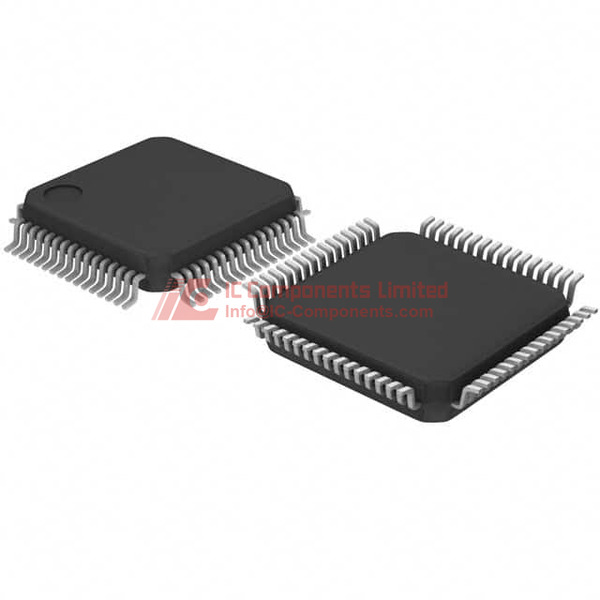

This product is supplied in a 64-LQFP (Low Profile Quad Flat Package) with a physical dimension of 10mm x 10mm. The package is optimized for surface-mount assembly, supporting automated PCB population. The tape and reel (TR) format ensures safe bulk handling and high-volume manufacturing. The 64-pin configuration offers ample I/O flexibility, and the LQFP design enhances heat dissipation characteristics.
ATSAMD20J18A-AUT Application
ATSAMD20J18A-AUT microcontrollers are suited for a wide range of embedded and industrial applications. Typical use cases include consumer electronics, automation systems, smart metering, instrumentation, home appliances, and industrial control solutions. Its flexibility makes it ideal for cost-efficient, performance-driven embedded designs requiring robust peripherals and connectivity.
ATSAMD20J18A-AUT Features
The ATSAMD20J18A-AUT integrates a 32-bit ARM Cortex-M0+ core running at up to 48MHz for efficient performance and low power consumption. Embedded with 256KB of FLASH program memory and 32KB of SRAM, it provides substantial space for complex applications. The device offers rich peripherals including brown-out detection/reset, power-on reset, and a watchdog timer for enhanced system reliability. Connectivity options cover I²C, SPI, and UART/USART, allowing for seamless external communications. It boasts 52 general-purpose I/Os and a broad voltage operating range of 1.62V to 3.6V. Data conversion is enabled by a high-resolution 20-channel 12-bit ADC and a single-channel 10-bit DAC. The internal oscillator brings design simplification and cost reduction, supporting precise timing. The microcontroller meets ROHS3 environmental standards, thus facilitating eco-friendly manufacturing and global compliance.
ATSAMD20J18A-AUT Quality and Safety Features
The microcontroller features robust brown-out detection and reset circuitry, ensuring reliable operation under varying voltage conditions, and a watchdog timer for system fault tolerance. Its power-on reset provides safe system startup. With industry-standard ESD handling and comprehensive RoHS3 compliance, this IC is designed for highest quality and safety expectations.
ATSAMD20J18A-AUT Compatibility
The ATSAMD20J18A-AUT is fully compatible with the SAM D20 family hardware and software ecosystem. Support for the ARM Cortex-M0+ architecture ensures straightforward migration and development using modern software tools, and the package is standardized for drop-in design updates.
ATSAMD20J18A-AUT Datasheet PDF
Our website provides the most authoritative and up-to-date datasheet for the ATSAMD20J18A-AUT. We highly recommend downloading the PDF directly from this page to ensure you have access to comprehensive, manufacturer-approved technical details.
