The MAX2659ELT+T is a high-performance RF amplifier specifically designed for GPS and GNSS (Global Navigation Satellite System) applications, developed by Analog Devices / Maxim Integrated. This compact integrated circuit addresses critical design challenges in satellite navigation receiver front-end signal amplification, offering exceptional performance in a miniature 6-uDFN (1.5x1) surface-mount package.
Engineered to operate precisely at the GPS L1 frequency of 1575.42 MHz, this RF amplifier provides a remarkable gain of 20.5 dB with an impressively low noise figure of 0.8 dB. The device is optimized for low-power mobile and portable navigation devices, consuming only 4.1 mA of current while operating across a flexible supply voltage range of 1.6V to 3.3V.
The amplifier's key technical characteristics include a P1dB (compression point) of -12 dBm, making it suitable for applications requiring consistent signal amplification in challenging reception environments. Its compact 6-WFDFN package ensures minimal board space requirements, ideal for modern compact electronic designs in smartphones, portable navigation systems, and wearable technology.
Primary advantages include excellent signal conditioning, low power consumption, and robust performance in GPS/GNSS receiver front-end architectures. The device is RoHS compliant, ensuring environmental sustainability and adherence to global electronic manufacturing standards.
While direct equivalent models are not explicitly listed, similar RF amplifiers in the GPS/GNSS domain might include products from manufacturers like Skyworks Solutions, NXP Semiconductors, and STMicroelectronics. Potential application areas encompass mobile communications, automotive navigation systems, location-based services, and precision tracking technologies.
The MAX2659ELT+T is available in tape and reel packaging, facilitating streamlined surface-mount assembly processes for electronics manufacturers seeking high-performance GPS signal amplification solutions.
MAX2659ELT+T Key Technical Attributes
Manufacturer Part Number: MAX2659ELT+T
Test Frequency: 1575.42MHz
Gain: 20.5dB
MAX2659ELT+T Packing Size

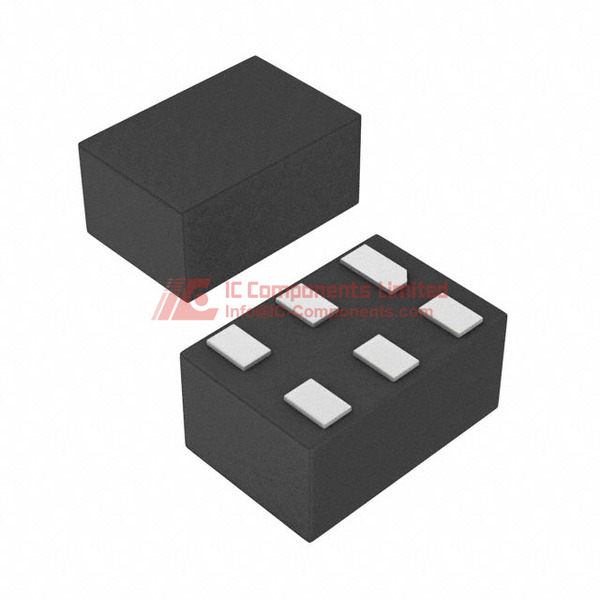

The MAX2659ELT+T is packaged in a compact 6-uDFN (1.5mm x 1mm) surface-mount encapsulation, specifically identified as 6-WFDFN, making it ideal for high-density PCB designs. The package is engineered for tape & reel (TR) delivery, ensuring compatibility with automated assembly processes. The 6-uDFN configuration features a well-defined pinout for optimized RF performance and facilitates efficient thermal management due to its small footprint and exposed-pad design. Electrical properties include an operating voltage range of 1.6V to 3.3V and a nominal supply current of 4.1mA, supporting applications where space and power consumption are critical.
MAX2659ELT+T Application
The MAX2659ELT+T is primarily designed as a low-noise RF amplifier for GPS and GNSS applications, optimized for frequency bands centered at 1575.42MHz. Its superior low noise figure and small size make it suited for portable navigation devices, mobile handsets, automotive GPS systems, and other sensitive RF front-end implementations. It can also be deployed in systems where exceptionally low signal degradation and high linearity are required for satellite-based location accuracy.
MAX2659ELT+T Features
This device features a high gain of 20.5dB with an ultra-low noise figure of 0.8dB, effectively enhancing weak GPS signals and improving system sensitivity. The supply current is exceptionally low at just 4.1mA, extending battery life in mobile applications. The amplifier’s P1dB (output compression point) of -12dBm ensures robust linearity under demanding signal conditions. Its operating voltage flexibility (1.6V to 3.3V) accommodates various power architectures. The small 6-uDFN package not only reduces the board area but also improves RF performance through reduced lead inductance and minimal parasitic effects. The device is optimized to reject out-of-band signals, minimizing interference from adjacent frequencies and increasing GPS acquisition speed and reliability. Comprehensive design enhancements enable stable operation across temperature and voltage variations, supporting reliable GPS reception in diverse environments.
MAX2659ELT+T Quality and Safety Features
Manufactured in accordance with high reliability standards, this component meets design criteria for RoHS compliance, although inventory verification is recommended for specific batches. The tightly controlled package construction and quality assurance during wafer fabrication and assembly ensure product consistency, longevity, and performance over time. Features such as ESD protection and environmental compliance further contribute to its robust safety profile, minimizing the risk of field failures in mission-critical applications.
MAX2659ELT+T Compatibility
The MAX2659ELT+T is highly compatible with a wide range of GPS and GNSS receiver ICs and matching networks, due to its flexible voltage supply range and RF characteristics. It’s designed for seamless integration into modern PCB layouts, and its footprint enables straightforward replacement or implementation in existing projects using the MAX2659 base product number series. The standardized 6-WFDFN package aligns with prevailing SMT processes.
MAX2659ELT+T Datasheet PDF
For the most complete and authoritative technical details, including application circuits, design guidance, and performance graphs, please download the official datasheet PDF from our website. We strongly encourage customers to use the datasheet available on this page to ensure precise and up-to-date information for design and procurement decisions.
