The TXS0108EZXYR is a sophisticated voltage level translator designed by Texas Instruments, offering advanced bidirectional signal conversion capabilities for electronic systems requiring seamless communication between different voltage domains. This integrated circuit addresses critical design challenges in mixed-voltage electronic interfaces by providing automatic direction sensing and high-speed signal translation.
Engineered as a high-performance logic translator, this device enables efficient communication between circuits operating at different voltage levels, specifically supporting VCCA voltages from 1.2V to 3.6V and VCCB voltages from 1.65V to 5.5V. The translator features a single circuit with 8 bidirectional channels, capable of achieving impressive data transmission rates up to 60 Mbps, making it ideal for complex digital communication requirements.
Key advantages include its automatic direction sensing capability, which eliminates the need for manual signal direction control, and its flexible output configuration supporting both open drain and push-pull modes. The device is surface-mountable in a compact 20-BGA Microstar Junior package (2.5x3.0), enabling efficient integration into space-constrained electronic designs.
The translator is particularly well-suited for applications in microcontroller interfaces, digital communication systems, and electronic devices requiring voltage level compatibility between different circuit domains. Its wide operating temperature range of -40°C to 85°C ensures robust performance across diverse environmental conditions.
This product is lead-free and RoHS compliant, meeting modern environmental and regulatory standards. Its advanced design makes it an excellent solution for engineers seeking reliable, high-speed voltage translation in mixed-voltage electronic systems.
Equivalent or alternative models include other Texas Instruments level shifters such as:
- TXS0104EPWR
- TXS0108EPWR
- SN74AVC8T245ZQER
- SN74LVC8T245DGVR
These alternative models offer similar functionality with slight variations in voltage ranges, channel configurations, and package types, providing engineers with multiple options to suit specific design requirements.
TXS0108EZXYR Key Technical Attributes
Voltage Level Translator Bidirectional
1 Circuit 8 Channel 60Mbps

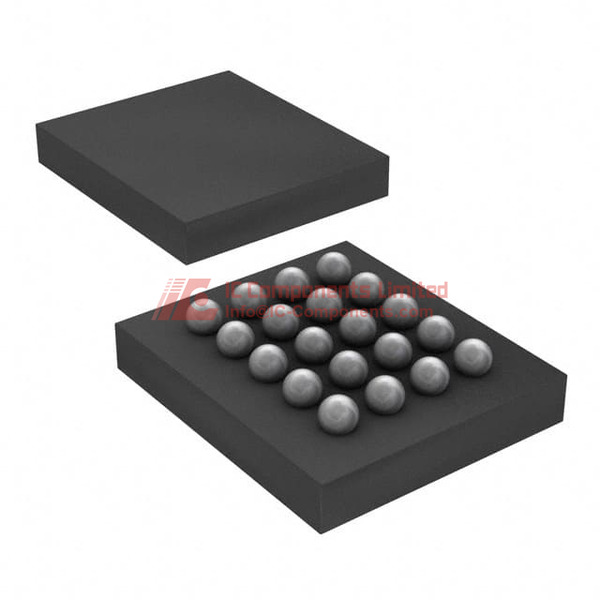

20-BGA Microstar Junior (2.5x3.0)
TXS0108EZXYR Packing Size
Package Type: 20-BGA Microstar Junior
Package Material: BGA
Pin Configuration: 20-Pin
Thermal Characteristics: Suitable for -40°C ~ 85°C
Electrical Properties: 1.2V ~ 3.6V (VCCA), 1.65V ~ 5.5V (VCCB)
TXS0108EZXYR Application
Used in systems where signal voltage levels need translation
Ideal for multi-voltage digital systems interfacing
TXS0108EZXYR Features
The TXS0108EZXYR offers a bidirectional voltage level translation with auto-direction sensing which simplifies design in mixed voltage environments. Its data rate capability up to 60Mbps facilitates fast signal processing for high-speed applications. The Open Drain and Push-Pull output types allow for versatility in connecting different types of loads and contributing to robust peripheral interfacing. This device operates efficiently across a wide temperature range from -40°C to 85°C, making it suitable for various operating conditions.
TXS0108EZXYR Quality and Safety Features
Complies with RoHS, lead-free for environmental compliance
Moisture Sensitivity Level (MSL) 1, indicating unlimited shelf life under normal environmental conditions
Integrated robustness in mounting with the Surface Mount technology enhancing durability and reliability in assemblies
TXS0108EZXYR Compatibility
Designed to interface seamlessly within digital systems requiring logic voltage level adjustments
TXS0108EZXYR Datasheet PDF
For in-depth technical specifications and operational guidelines, our website hosts the most authoritative datasheet PDF for the TXS0108EZXYR. We highly recommend downloading it directly from the product page to ensure you have accurate and detailed information when integrating or utilizing this component.
