Home > Products > Integrated Circuits (ICs) > Logic - Flip Flops > SN74AUP1G79YZPR

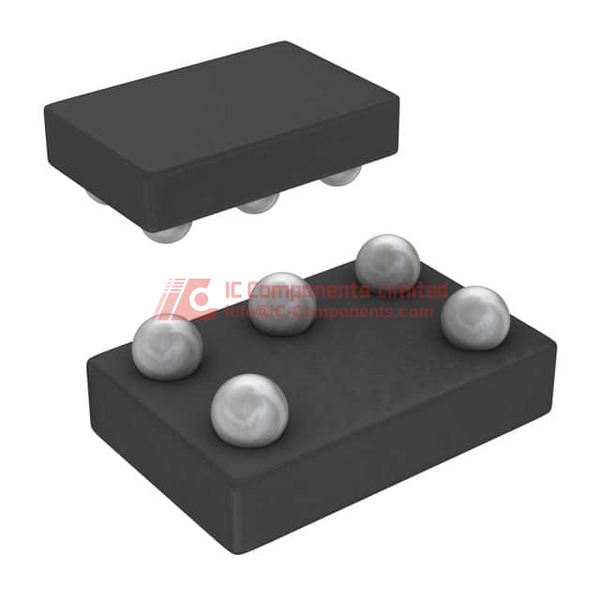

5-DSBGA-YZP.jpg ImageView larger image
Image may be representation.
See specs for product details.

SN74AUP1G79YZPR

In Stock 90856 pcs Reference Price(In US Dollars)
3000+
$0.2521
6000+
$0.2461
Manufacturer Part Number:
SN74AUP1G79YZPR
Manufacturer / Brand
Texas Instruments
Part of Description:
IC FF D-TYPE SNGL 1BIT 5DSBGA
Datasheets:
SN74AUP1G79YZPR(1).pdfSN74AUP1G79YZPR(2).pdfSN74AUP1G79YZPR(3).pdf
Lead Free Status / RoHS Status:
ROHS3 Compliant
Stock Condition:
New original, 90856 pcs Stock Available.
ECAD Model:
Ship From:
Hong Kong
Shipment Way:
DHL/Fedex/TNT/UPS

Inquiry Online

Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Info@IC-Components.com
Part Number
Manufacturer
Require Quantity
Target Price(USD)
Company Name
Contact Name
E-mail
Phone
Message
Please enter Verify Code and click "Submit"
Part Number SN74AUP1G79YZPR
Manufacturer / Brand Texas Instruments
Stock Quantity 90856 pcs Stock
Category Integrated Circuits (ICs) > Logic - Flip Flops
Description IC FF D-TYPE SNGL 1BIT 5DSBGA
Lead Free Status / RoHS Status: ROHS3 Compliant
Voltage - Supply 0.8V ~ 3.6V
Type D-Type
Trigger Type Positive Edge
Supplier Device Package 5-DSBGA (1.4x0.9)
Series 74AUP
Package / Case 5-XFBGA, DSBGA
Package Tape & Reel (TR)
Output Type Non-Inverted
Operating Temperature -40°C ~ 85°C (TA)
Number of Elements 1
Number of Bits per Element 1
Mounting Type Surface Mount
Max Propagation Delay @ V, Max CL 5.8ns @ 3.3V, 30pF
Input Capacitance 1.5 pF
Function Standard
Current - Quiescent (Iq) 500 nA
Current - Output High, Low 4mA, 4mA
Clock Frequency 266 MHz
Base Product Number 74AUP1G79
