The MAX208IDBG4 is a sophisticated RS232 interface transceiver integrated circuit manufactured by Texas Instruments (formerly Luminary Micro) that serves as a critical communication bridge in electronic systems requiring reliable serial data transmission. This full-duplex transceiver belongs to the interface drivers, receivers, and transceivers category within the broader integrated circuits classification, specifically engineered to address the design challenges of converting between TTL/CMOS logic levels and RS232 voltage standards while maintaining signal integrity across varying environmental conditions.
The device incorporates four independent drivers and four receivers in a single package, enabling simultaneous bidirectional communication across multiple channels with a maximum data transmission rate of 120 kilobits per second. Operating within a supply voltage range of 4.5V to 5.5V, the transceiver features robust receiver hysteresis of 500 millivolts, which significantly enhances noise immunity and ensures reliable data recovery even in electrically noisy environments. The wide operating temperature range from -40°C to 85°C makes it suitable for both commercial and industrial applications where temperature variations are substantial.

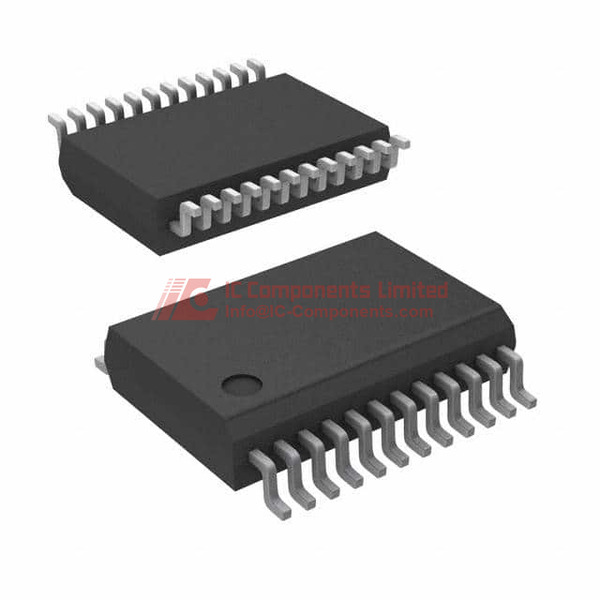

Housed in a compact 24-pin SSOP (Shrink Small Outline Package) measuring 5.30mm in width, the surface-mount design addresses space constraints in modern electronic designs while facilitating automated assembly processes. The package's small footprint and standardized pin configuration enable designers to implement multiple communication channels without consuming excessive board real estate, which is particularly valuable in portable devices and densely packed circuit boards.
The primary advantages of this transceiver include its ability to handle full-duplex communication, meaning simultaneous transmission and reception of data, along with its integrated charge pump circuitry that eliminates the need for external capacitors in many applications. The device's compliance with RoHS3 environmental standards ensures it meets current regulatory requirements for lead-free manufacturing, while its robust ESD protection and fail-safe receiver inputs provide enhanced reliability in harsh operating environments.
Compatibility extends across a wide range of microcontrollers, processors, and communication systems that utilize RS232 protocol, making it suitable for interfacing with legacy equipment, industrial automation systems, point-of-sale terminals, networking equipment, and embedded control applications. The transceiver seamlessly integrates with both 3.3V and 5V logic systems, providing flexibility in mixed-voltage designs commonly found in modern electronic products.
Primary application areas encompass industrial control systems where reliable communication with sensors and actuators is critical, telecommunications equipment requiring multiple serial interfaces, medical devices demanding high reliability and noise immunity, automotive electronics operating in temperature-extreme environments, and consumer electronics needing compact yet robust communication solutions. The device is particularly valuable in applications requiring multiple simultaneous RS232 connections, such as multi-port serial servers, data acquisition systems, and industrial gateways.
Equivalent and alternative models include the MAX232 series for single-channel applications, the MAX3232 for 3.3V operation, the SP232A and SP208A from MaxLinear, the ADM232A and ADM208A from Analog Devices, and the ST232A from STMicroelectronics. For higher data rates, alternatives include the MAX3245E supporting up to 1Mbps, while for lower power applications, the MAX13232E offers shutdown capability. Pin-compatible alternatives from various manufacturers include the ICL232, HIN232, and LT1032, though specific electrical characteristics may vary. When selecting alternatives, designers should carefully compare parameters such as supply voltage range, data rate capabilities, package options, and specific feature sets to ensure optimal performance in their target applications.
MAX208IDBG4 Key Technical Attributes
Transceiver Type: RS232
Voltage Supply: 4.5V ~ 5.5V
Temperature Range: -40°C ~ 85°C
MAX208IDBG4 Packing Size
The MAX208IDBG4 comes in a compact 24-SSOP package, with a width of 5.30mm (0.209 inches), designed specifically for surface mounting on PCBs. The tube package format ensures secure handling and shipping. The device features a 24-pin configuration, supporting straightforward integration into existing designs while maintaining high thermal efficiency. Its SSOP package provides adequate heat dissipation to ensure stable operation even under challenging environmental conditions.
MAX208IDBG4 Application
This transceiver IC is ideally suited for RS232 communication tasks, including industrial control systems, embedded computing, data acquisition, networking equipment, and any device requiring reliable serial signal transmission. Its support for full duplex communication enables simultaneous send/receive operations, making it valuable for complex signal control setups and advanced electronic interfaces.
MAX208IDBG4 Features
The MAX208IDBG4 integrates a full 4-driver and 4-receiver configuration within a single IC, enabling comprehensive RS232 protocol support. Features include a robust receiver hysteresis of 500 mV to maximize noise immunity, a data rate capability of up to 120Kbps for reliable and efficient signal transmission, and full duplex mode for enhanced versatility. It supports a wide supply voltage range (4.5V to 5.5V), catering to varied design requirements. The RoHS3 compliance ensures that the product meets strict environmental standards. The surface mount configuration assists in high-density device placement and automated assembly processes.
MAX208IDBG4 Quality and Safety Features
Manufactured by Luminary Micro/Texas Instruments, the MAX208IDBG4 is built using proprietary design techniques to enhance reliability and minimize failure rates. RoHS3 compliance guarantees it is free from hazardous substances, contributing to safer manufacturing and end-use environments. The device supports stable operation across a broad temperature range, from -40°C to 85°C, which is essential for both industrial and consumer applications.
MAX208IDBG4 Compatibility
The MAX208IDBG4 matches seamlessly with systems based on the RS232 communications standard. Its 24-SSOP pinout supports easy drop-in replacement or integration into legacy designs and modern circuits alike. The wide operating voltage range and robust receiver hysteresis improve tolerance to supply variations and transient electrical disturbances, ensuring compatibility within demanding electronic ecosystems.
MAX208IDBG4 Datasheet PDF
The official datasheet for MAX208IDBG4 is available on our website, providing detailed technical specifications, pin configuration, recommended operating conditions, and application guidance. For the most accurate and authoritative information, we strongly encourage customers to download the datasheet directly from this page.
