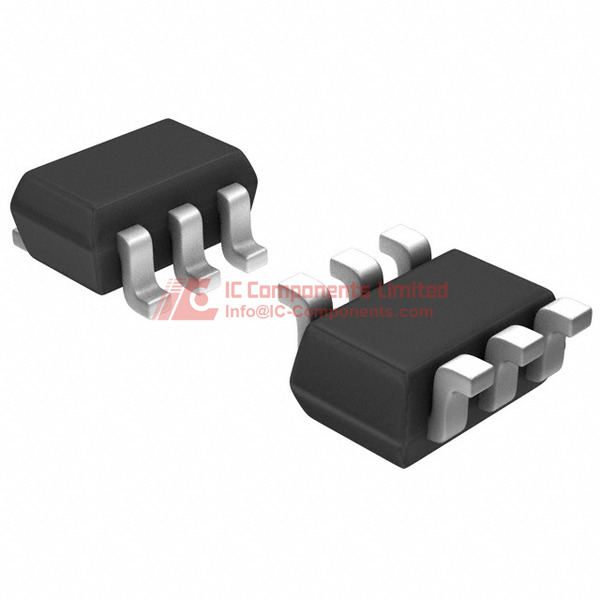

The Diodes Incorporated 74LVC1G11DW-7 is a high-performance, compact single-channel AND gate integrated circuit designed for versatile digital logic applications. Part of the 74LVC series, this logic gate provides efficient signal processing in a miniature surface-mount package, specifically the SOT-363 (6-TSSOP) form factor, making it ideal for space-constrained electronic designs.
This three-input AND gate operates across a wide temperature range of -40°C to 125°C, offering exceptional reliability in diverse environmental conditions. The device supports a flexible supply voltage range of 1.65V to 5.5V, enabling compatibility with various low-power and standard logic systems. Its advanced design ensures low power consumption, with a quiescent current of just 40µA.
Key performance characteristics include a rapid propagation delay of 3.5ns at 5V with a 50pF load, enabling high-speed signal processing. The gate delivers robust output capabilities, providing 32mA high and low current drive, which supports direct interfacing with multiple logic circuits and components.
The 74LVC1G11DW-7 features precise logic thresholds, with low-level inputs ranging from 0.7V to 0.8V and high-level inputs between 1.7V and 2V. Its lead-free, RoHS-compliant construction ensures environmental responsibility and meets modern electronic manufacturing standards.
Potential application areas include telecommunications equipment, consumer electronics, automotive systems, industrial control devices, and computer peripherals where compact, high-speed logic integration is crucial.
Equivalent or alternative models in the same product family include other variants like the 74LVC1G11GW, 74LVC1G11GV, and similar logic gate ICs from manufacturers such as Texas Instruments and NXP Semiconductors.
This versatile AND gate provides engineers with a reliable, efficient solution for complex digital logic design requirements, combining compact size, high performance, and broad compatibility.
74LVC1G11DW-7 Key Technical Attributes
Manufacturer Part Number: 74LVC1G11DW-7
Manufacturer: Diodes Incorporated
Logic Type: AND Gate
74LVC1G11DW-7 Packing Size
Package: Digi-Reel
Type of Packaging: Manufacturer's packaging SOT-363
Material: Lead free / RoHS Compliant
Thermal and Electrical Characteristics: Operating Temperature -40°C ~ 125°C, Voltage - Supply 1.65 V ~ 5.5 V
74LVC1G11DW-7 Application
Use in high-speed logic switching application, timing circuits, and logic gates
74LVC1G11DW-7 Features
The 74LVC1G11DW-7 is an AND Gate IC featuring one channel encased in a small 6-TSSOP, SC-88, or SOT-363 package. This IC is ideal for implementing logic functions in circuit designs. It supports a wide supply voltage range from 1.65 V to 5.5 V, which contributes to its high adaptability in various logic systems. With maximum output current of 32mA at both high and low states, and a low quiescent current of maximum 40A, it optimizes power consumption. The device exhibits fast propagation delay of only 3.5ns at 5V with a maximum capacitive load of 50pF.
74LVC1G11DW-7 Quality and Safety Features
Moisture Sensitivity Level (MSL) 1 (Unlimited), ensuring stability and reliability in humid conditions. RoHS Compliant for environmental health and safety.
74LVC1G11DW-7 Compatibility
Compatible with SOT-363 package allowing uniformity in usage across various designs that accommodate this package type.
74LVC1G11DW-7 Datasheet PDF
For comprehensive and authoritative specifications of IC 74LVC1G11DW-7, visit our website to download the datasheet PDF. This resource will provide you with detailed information necessary for your design and application needs.
