The 350762-4 from Agastat Relays/TE Connectivity is a robust through-hole header connector designed for reliable board-to-cable and board-to-wire interconnection applications. This rectangular connector falls within the headers, receptacles, and female sockets category, specifically engineered to address the design challenges of creating secure, durable electrical connections in industrial and commercial electronic assemblies where space efficiency and mechanical stability are critical.

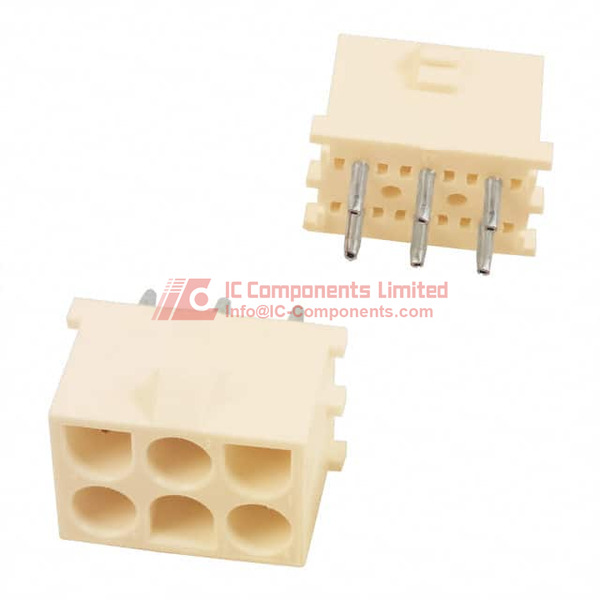

This 6-position female socket header connector features a 3-row configuration with all positions loaded, utilizing a 0.250-inch (6.35mm) pitch spacing that provides excellent contact accessibility and current-carrying capacity. The connector employs phosphor bronze contact material with tin plating on the mating surface, delivering superior electrical conductivity, corrosion resistance, and reliable signal integrity across its contact points. The through-hole mounting design with solder termination ensures strong mechanical anchoring to printed circuit boards, while the 0.250-inch (6.35mm) contact length post provides adequate engagement depth for stable connections.
The connector body is constructed from polyamide (PA) nylon insulation material in a natural color, meeting UL94 V-2 flammability rating standards for enhanced safety in various operating environments. With an insulation height of 0.155 inches (3.94mm), the compact vertical profile optimizes board space utilization. The locking ramp fastening mechanism provides positive mating retention, preventing accidental disconnection during vibration or handling, which is particularly valuable in industrial automation, transportation, and equipment manufacturing applications.
Key specifications include the 0.250-inch row spacing for mating interfaces, a moisture sensitivity level of A1496 indicating minimal moisture concerns, and full RoHS compliance with lead-free status meeting current environmental regulations. The connector is supplied in bulk packaging with a standard package quantity of 100 units and currently maintains active production status with approximately 2,663 units available and a manufacturer standard lead time of 15 weeks.
This connector is part of TE Connectivity's Universal MATE-N-LOK system, ensuring compatibility with corresponding male header connectors within the same product family. Primary advantages include its robust construction, reliable tin-plated contacts, secure locking mechanism, and compliance with international safety standards. The product finds extensive application in power distribution systems, control panels, industrial machinery, instrumentation, automotive electronics, and general-purpose electronic equipment requiring dependable interconnection solutions. Alternative designations for cross-referencing include part number 3507624, and equivalent or compatible models can typically be found within TE Connectivity's broader MATE-N-LOK connector series featuring similar pitch, position count, and mounting configurations.
350762-4 Key Technical Attributes
Mounting Type: Through Hole
Number of Positions: 6
Contact Material: Phosphor Bronze
350762-4 Packing Size
This product is supplied in bulk packaging to ensure safe delivery and easy handling for large-volume users. The connector features a board-to-cable/wire header design with an insulation height of 0.155" (3.94mm) and a row spacing of 0.250" (6.35mm). The header’s post length is 0.250" (6.35mm) with a finish thickness offering reliable mechanical and electrical performance. The pin configuration comprises three rows, fully loaded with six contacts. Contacts are finished with tin for both mating and post areas, providing good conductivity and corrosion resistance. The body and insulation components are manufactured from Polyamide (PA), also known as Nylon, which is UL94 V-2 rated for flame retardancy. Bulk packaging is particularly suited for efficient manufacturing workflows and inventory management.
350762-4 Application
The Agastat Relays / TE Connectivity 350762-4 rectangular header connector is widely used in industrial, automotive, and general electronic applications requiring robust board-to-cable/wire interconnection. Its through-hole mounting and solder termination make it ideal for PCB assembly, where strong mechanical bonding and reliable electrical contact are essential for demanding environments.
350762-4 Features
This 6-position vertical header connector provides a secure board-to-cable mating interface with a locking ramp to prevent accidental disconnection. The solder termination ensures long-lasting, stable connection points even under vibration or shifting mechanical loads. UL94 V-2 flammability rating and RoHS compliant, the connector suits both commercial and environmentally regulated markets. The Universal MATE-N-LOK conduit hub design offers broad compatibility with other interconnect systems from TE Connectivity. The connector's natural color, along with its corrosion-resistant tin-plated phosphor bronze contacts, ensures both aesthetic alignment and extended durability. With a moisture sensitivity level (MSL) identified as unlimited, it offers resilience against environmental factors encountered during storage and operation.
350762-4 Quality and Safety Features
Ensuring user safety and compliance, the 350762-4 connector meets UL94 V-2 flammability requirements and is fully RoHS compliant, containing no hazardous substances and certified as lead-free. The robust tin-plated contacts and polyamide insulation guarantee continued safety and reliability in high-density and harsh conditions. The California Prop 65 status affirms its suitability for unrestricted sale and deployment.
350762-4 Compatibility
This header connector is part of TE Connectivity’s MATE-N-LOK family, ensuring seamless compatibility with a range of universal headers, receptacles, and cables. Its standardized 0.250" (6.35mm) row spacing aligns with common wire harnesses and PCB layouts, facilitating easy integration into new and existing designs.
350762-4 Datasheet PDF
For comprehensive technical specifications and design guidelines, please download the most authoritative and up-to-date datasheet for the 350762-4 directly from our website. The datasheet available on this page is the official resource recommended for engineers and procurement professionals to ensure proper selection and implementation.
