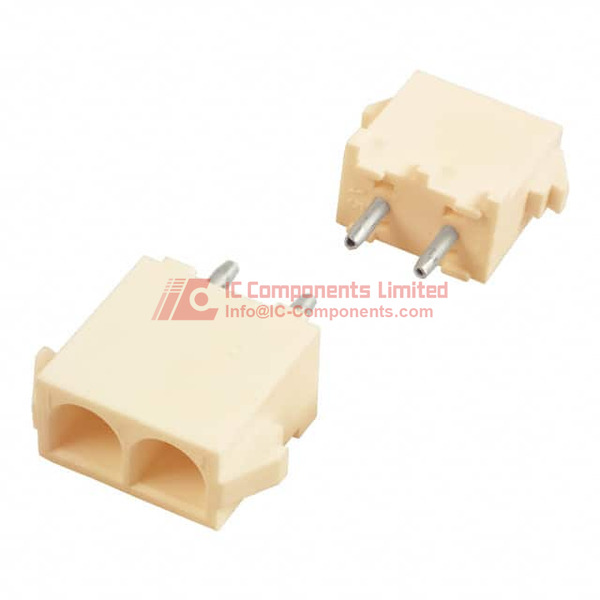

The Agastat Relays / TE Connectivity 350759-4 is a high-performance 2-position header connector designed for versatile electronic interconnection applications. This through-hole mounted connector represents a robust solution for reliable electrical connections in various electronic systems.
Manufactured with precision, the connector features a vertical orientation with a 0.250" (6.35mm) pitch, making it ideal for board-to-cable and wire connection interfaces. Constructed from phosphor bronze with a tin-plated finish, the connector ensures excellent electrical conductivity and corrosion resistance. The natural-colored polyamide (nylon) insulation provides durability and meets UL94 V-2 flammability ratings, enhancing its safety and reliability in demanding environments.
Key technical specifications include a single-row configuration with two positions, designed for solder termination. The connector utilizes a locking ramp fastening mechanism, which ensures secure and stable connections. Its female socket contact type enables flexible and reliable electrical interconnectivity across multiple applications.
The connector is fully lead-free and RoHS compliant, addressing contemporary environmental and regulatory requirements. Its universal MATE-N-LOK design allows for broad compatibility across various electronic systems and industries. The connector's compact design, with an insulation height of 0.155" (3.94mm), makes it suitable for space-constrained electronic assemblies.
Primary advantages include its robust construction, high reliability, easy installation, and compatibility with standard mounting techniques. The connector is particularly well-suited for automotive, industrial control, telecommunications, and consumer electronics applications where consistent and secure electrical connections are critical.
While specific equivalent models are not explicitly mentioned in the specifications, similar connectors from manufacturers like Molex, AMP/TE Connectivity, and Samtec might offer comparable specifications and functionality. Potential alternatives would likely share similar 2-position, through-hole header connector characteristics.
The standard packaging comes in bulk quantities, with a typical package size of 100 units, and the manufacturer indicates a standard lead time of 10 weeks for order fulfillment.
350759-4 Key Technical Attributes
2 Position, Board-to-Cable/Wire Header
Through Hole Mounting, Tin Finish
UL94 V-2 Flammability, Lead Free/RoHS
350759-4 Packing Size
This product is supplied in bulk packaging, ensuring safe transportation and easy handling for high-volume assembly lines. The rectangular header connector features dimensions tailored for secure board integration: 0.250" (6.35mm) row spacing and insulation height of 0.155" (3.94mm), delivering compactness for dense PCB layouts. The pin configuration includes two fully loaded positions in a single row, designed for reliable solder termination and efficient lock-in to corresponding receptacles.
350759-4 Application
The 350759-4 header connector is ideal for use in interconnection systems demanding secure board-to-cable or wire connectivity, such as industrial equipment, consumer electronics, control panels, and communication devices. Its universal MATE-N-LOK usage broadens its compatibility across numerous design architectures.
350759-4 Features
The connector boasts a robust design with phosphor bronze contacts, providing excellent electrical conductivity and mechanical durability. The tin plated contacts offer enhanced corrosion resistance and stable electrical performance under varying environmental conditions. It utilizes a locking ramp fastening type, ensuring steadfast retention even in vibration-prone environments. Natural insulation color aids in visual identification, while the insulation material, polyamide (PA) nylon, ensures stability under thermal stress. The connector's female socket contact type and standard lead time of 10 weeks cater to both immediate and scheduled production requirements. Its through-hole solder termination guarantees straightforward installation in standard PCB assembly processes. The bulk pack configuration supports scalable deployments, from prototyping to mass production. Moisture Sensitivity Level A1490 and California Prop 65 compliance allow for use in regulated markets and conditions.
350759-4 Quality and Safety Features
Manufactured by TE Connectivity, a leader in reliable interconnect solutions, the connector is certified with UL94 V-2 flammability rating, ensuring enhanced fire-resistant performance. It is lead free and RoHS compliant, supporting environmentally responsible manufacturing and deployment. The unit's robust moisture sensitivity rating and compliance with Proposition 65 standards further reinforce the connector's suitability for safe, long-term use in high-performance settings.
350759-4 Compatibility
Suitable for universal MATE-N-LOK systems, the connector supports direct mating with corresponding female or receptacle components, ensuring broad design and system compatibility. It is compatible with standard bulk assembly practices, making it a flexible choice for custom projects or standardized production lines.
350759-4 Datasheet PDF
Our website features the most authoritative and up-to-date datasheet for the 350759-4 product model. Customers are strongly encouraged to download the comprehensive datasheet directly from this page to access critical specifications, electrical profiles, and assembly guidelines for optimal deployment.
