The STMicroelectronics BTA26-600BWRG is a high-performance triac alternistor designed for robust power control and switching applications in electronic systems. This through-hole mounted device is engineered to handle significant electrical loads with exceptional reliability across a wide temperature range from -40°C to 125°C.
As a single-configuration triac with snubberless technology, the BTA26 series offers superior switching capabilities, capable of managing up to 25A RMS current and withstanding up to 600V off-state voltage. Its unique alternistor design provides enhanced performance in power control circuits, particularly in applications requiring efficient and precise electrical switching.
The device features a low gate trigger voltage of 1.3V maximum and a modest gate trigger current of 50 mA, making it highly efficient for controlled electrical switching scenarios. Its impressive non-repetitive surge current capability of 250-260A at 50/60 Hz ensures robust performance under challenging electrical conditions.
Packaged in a TOP3 insulated case and designed for through-hole mounting, this triac is ideal for industrial control systems, motor speed regulation, lighting control, and other power management applications. Its RoHS compliance and extensive temperature tolerance make it suitable for diverse electronic design environments.
Key advantages include its snubberless operation, which simplifies circuit design, low triggering requirements, and high current handling capacity. The device is particularly well-suited for applications demanding reliable, efficient power switching with minimal circuit complexity.
Equivalent or alternative models in the market might include similar triacs from manufacturers like Vishay, ON Semiconductor, and NXP, though specific model comparisons would require detailed technical evaluation.
BTA26-600BWRG Key Technical Attributes
600V Off-State Voltage
25A RMS On-State Current

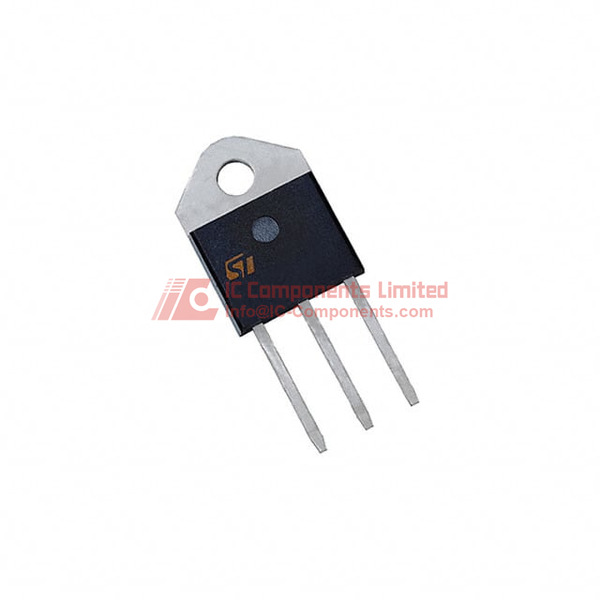

TOP3 Through-Hole Package
BTA26-600BWRG Packing Size
The component is delivered in a robust TOP3 insulated package, designed for secure through-hole mounting that ensures exceptional mechanical stability during assembly. The device is supplied in tube packaging, which facilitates handling and storage, particularly when dealing with a quantity of 7,400 units. The pin configuration of the package is compatible with typical through-hole PCB layouts, and the encapsulation type meets the 28561 standard, providing optimal heat dissipation and enhanced electrical performance. The thermal design allows reliable operation in ambient environments, maximizing the rated operating junction temperature from -40°C up to 125°C. Electrical characteristics such as a gate trigger voltage of up to 1.3V and a gate trigger current up to 50mA guarantee that the device will be responsive to standard logic-level control signals.
BTA26-600BWRG Application
BTA26-600BWRG is widely used for switching AC loads in applications requiring high robustness and low EMI emissions. Typical uses include light dimmers, motor speed controllers, static switching relays, and heater controls. It is also applicable for industrial and consumer equipment where high surge immunity and reliability are demanded.
BTA26-600BWRG Features
The device is part of the snubberless alternistor Triac series, specifically engineered to handle inductive loads without the need for an external snubber circuit. It supports a maximum RMS on-state current of 25A, an impressive 600V off-state voltage threshold, and surge handling capabilities of 250A (50Hz) and 260A (60Hz), making it ideal for circuits exposed to transient overloads. The insulated TOP-3 case enhances user safety by ensuring electrical separation between the control circuitry and the load. The BTA26-600BWRG exhibits minimal gate trigger current requirements, facilitating direct interfacing with microcontrollers or signal processors. The extended operating temperature range ensures stable performance in a wide variety of environments. The device also incorporates proprietary technologies by STMicroelectronics for superior commutation, which grants additional suppression of EMI and dV/dt robustness, equipping it for demanding power switching applications.
BTA26-600BWRG Quality and Safety Features
As part of the RoHS initiative, this product can be supplied in compliance with environmental regulations. The insulated case design, coupled with its snubberless topology, reduces component count and enhances system safety. The rigorous manufacturing standards of STMicroelectronics ensure that each Triac meets high-quality benchmarks, further supported by the robust surge-current capability and high holding current to mitigate accidental latching.
BTA26-600BWRG Compatibility
BTA26-600BWRG offers broad compatibility with typical AC mains voltage circuits globally, thanks to its 600V off-state voltage capability. Its standard gate characteristics and through-hole mounting allow seamless replacement and integration in most designs that leverage BTA26 alternistors or require upgrades within the Snubberless family.
BTA26-600BWRG Datasheet PDF
Our website provides the most authoritative, up-to-date datasheet for the BTA26-600BWRG. We strongly recommend downloading the full datasheet from this page to access essential technical specifications, reference designs, and detailed performance data, ensuring proper selection and application in your projects.
