The Renesas Electronics Corporation R5F100JHAFA#30 is a high-performance 16-bit microcontroller designed for embedded applications that demand precision, efficiency, and versatility. Part of the RL78/G13 series, this integrated circuit represents a sophisticated solution for engineers and developers seeking a compact yet powerful microcontroller with comprehensive functionality.
At its core, this microcontroller features a robust 16-bit processor operating at 32MHz, providing substantial computational capabilities for complex embedded systems. The device offers an impressive 192KB of flash program memory and 16KB of RAM, enabling sophisticated software implementations across various application domains. Its flexible voltage range of 1.6V to 5.5V ensures broad compatibility with different power supply configurations.
The microcontroller distinguishes itself through multiple advanced peripheral features, including Direct Memory Access (DMA), Low Voltage Detection (LVD), Watchdog Timer (WDT), and Pulse Width Modulation (PWM) capabilities. These integrated peripherals simplify system design and enhance overall performance. Additionally, it incorporates a 12-channel, 8/10-bit analog-to-digital converter, expanding its sensing and measurement potential.
Connectivity is another strong point, with support for multiple communication protocols such as CSI, I2C, LIN bus, and UART/USART. This versatility makes it suitable for automotive, industrial control, consumer electronics, and IoT applications. The device's surface-mount 52-LQFP package and wide operating temperature range of -40°C to 85°C further underscore its robustness and adaptability.
Key advantages include its compact form factor, low power consumption, integrated peripherals, and comprehensive communication interfaces. The microcontroller is RoHS3 compliant, meeting stringent environmental regulations. Engineers will appreciate its 38 I/O pins and 8KB EEPROM, which provide flexibility in design and data storage.
Alternative or equivalent models in the Renesas RL78 family include the R5F100FC, R5F100FE, and R5F100GG, which offer similar architectures with slight variations in memory size, package, and specific peripheral configurations. These models provide drop-in replacements or scalable solutions depending on specific project requirements.
R5F100JHAFA#30 Key Technical Attributes
- Renesas Electronics Corporation
- Manufacturer part number R5F100JHAFA#30
- Series RL78 G13
- Core RL78 16 bit, maximum frequency 32 MHz
- Program memory Flash 192 KB
- RAM 16 KB
- EEPROM or data flash 8 KB
- Number of I O 38
- Connectivity CSI, IC I2C, LIN bus, UART or USART
- A D converter 12 channels with selectable 8 or 10 bit resolution
- Supply voltage range 1.6 V to 5.5 V
- Operating temperature minus 40 to 85 degrees Celsius ambient
- Internal oscillator available
- Peripherals DMA, low voltage detection LVD, power on reset POR, PWM, watchdog timer WDT
- Package 52 LQFP nominal 10 mm by 10 mm, surface mount, tray
- RoHS3 compliant
- Base product number R5F100
- Available stock 785 units
R5F100JHAFA#30 Packing Size

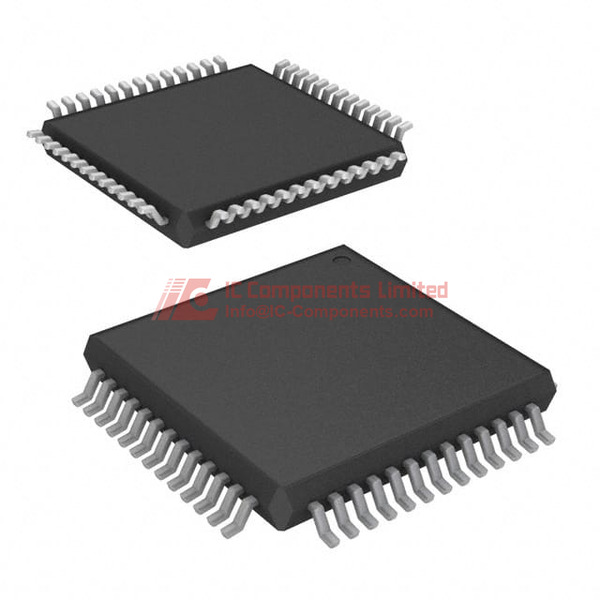

- Package type 52 lead LQFP, molded epoxy plastic, gull wing leads
- Body size nominal 10 mm x 10 mm low profile quad flat
- Mounting method surface mount, reflow compatible
- Pin configuration 52 total leads with 38 general purpose I O and multiplexed peripheral pins
- Thermal characteristics suitable for ambient operation minus 40 to 85 Celsius, junction temperature depends on board copper and airflow
- Electrical properties wide supply 1.6 to 5.5 volts, up to 32 MHz internal clock, CMOS style digital I O
- Supplier device package 52 LQFP 10x10, shipped in trays
R5F100JHAFA#30 Application
- General purpose embedded control
- Battery powered consumer electronics
- Home appliances and white goods controllers
- Industrial sensing and control nodes
- Communication interfaces using UART, I2C IC, SPI CSI
- LIN bus sub nodes where automotive qualification is not required
- Human machine interface and keypad controllers
- Smart metering and utility devices
R5F100JHAFA#30 Features
This RL78 G13 microcontroller delivers a balanced mix of performance, memory, and connectivity for mainstream embedded designs. The 16 bit RL78 core running up to 32 MHz provides efficient code execution and low power operation, while 192 KB on chip Flash and 16 KB RAM accommodate substantial firmware with room for communication stacks and application logic. The integrated 8 KB data flash or EEPROM like storage supports non volatile parameters, logs, and calibration data without external memory.
The device integrates versatile serial interfaces including UART or USART for asynchronous communication, CSI for SPI like synchronous transfers, and IC for I2C style control buses. LIN bus support enables simple networking in appliances and general machinery where lightweight serial communication is preferred. The 12 channel analog to digital converter offers selectable 8 or 10 bit resolution, suitable for sensor inputs, voltage monitoring, and user interface analog measurements.
A rich peripheral set enhances real time control. Multiple PWM capable timers drive motors, actuators, and LEDs with accurate duty cycle control. The DMA engine offloads data movement to improve throughput and reduce CPU load. The internal oscillator simplifies the clock tree and can reduce bill of materials by eliminating an external crystal in many use cases.
Robust operation is supported by safety oriented hardware. Low voltage detection helps the system respond gracefully to brown outs. Power on reset ensures correct startup behavior. The watchdog timer provides fault recovery from software hang conditions. Together with the wide supply range from 1.6 V to 5.5 V, the device operates reliably from batteries, regulated rails, or USB derived supplies.
The 52 LQFP package with 38 available general purpose I O pins gives ample digital connectivity while staying compact on the PCB. Ports are multiplexed to map peripheral functions where needed, allowing flexible pin assignment during design. The surface mount package is compatible with standard SMT assembly and reflow processes.
R5F100JHAFA#30 Quality and Safety Features
The microcontroller includes multiple hardware features that reinforce quality and operational safety in embedded products. Low voltage detection and power on reset protect against improper supply conditions and help maintain predictable system states during power transients. The watchdog timer enables recovery from firmware faults, improving system availability. On chip Flash and data flash simplify traceability and configuration retention by keeping software and parameters within a single qualified component. The device is RoHS3 compliant, supporting environmentally responsible manufacturing. Recommended ESD handling procedures and moisture controls during assembly should be followed for plastic LQFP packages, and thermal performance should be validated on the target PCB to maintain safe junction temperatures across the full operating range.
R5F100JHAFA#30 Compatibility
This device is part of the RL78 G13 family, offering software compatibility across RL78 core derivatives and enabling code reuse of drivers, middleware, and application layers written for RL78. Many G13 variants share similar pinouts in 52 pin LQFP, easing migration between memory sizes or feature sets within the family. Development is supported by Renesas tools including e2 studio and the CC RL compiler, and third party toolchains such as IAR Embedded Workbench for RL78. Debug and programming solutions from Renesas provide smooth bring up and field update workflows. Always verify pin mapping and peripheral availability against the specific part datasheet when planning migration.
R5F100JHAFA#30 Datasheet PDF
Our website hosts the most authoritative and up to date datasheet for R5F100JHAFA#30. For definitive electrical characteristics, pin descriptions, timing, thermal guidelines, and packaging information, download the datasheet directly from this product page. Using the datasheet from our site ensures you are referencing the correct document revision for this exact model.
