The TPD12S015AYFFR is a highly integrated circuit designed by Luminary Micro / Texas Instruments for use in portable electronic devices such as PDAs, portable audio/video players, and smartphones. As an interface IC, it addresses the design challenges associated with integrating HDMI connectivity into these compact and power-constrained products.

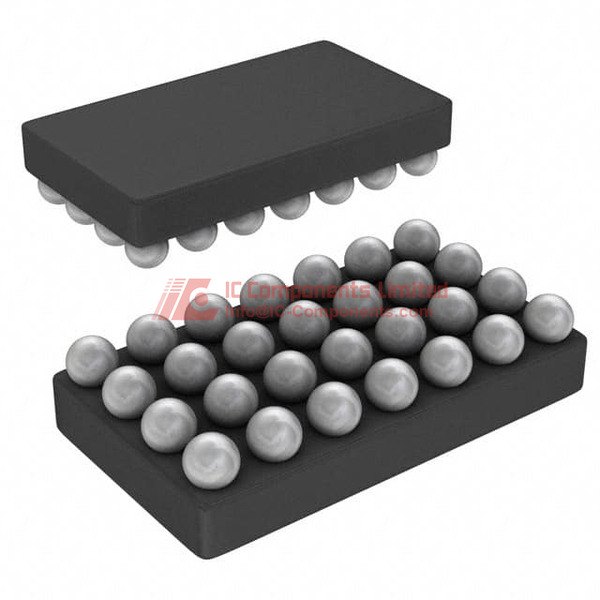

The TPD12S015AYFFR features a 28-pin DSBGA (2.79x1.59) package, providing a compact and space-efficient solution for integrating HDMI functionality. It operates within a wide voltage range of 1.1V to 3.6V, or 2.3V to 5.5V, making it suitable for a variety of mobile device power supply configurations.
The key advantages of the TPD12S015AYFFR include its ability to seamlessly integrate HDMI connectivity into portable devices, enabling users to enjoy high-quality video and audio content on the go. Its small form factor and low power consumption make it an ideal choice for battery-powered mobile applications.
The TPD12S015AYFFR is compatible with a wide range of portable electronic devices, including PDAs, portable audio/video players, and smartphones. It is designed to be surface-mounted, providing a straightforward integration solution for manufacturers.
In terms of equivalent or alternative models, the TPD12S015AYFFR may be compared to other HDMI interface ICs from Texas Instruments, such as the TPD12S521 and TPD12S542. These models offer similar functionality and performance characteristics, providing manufacturers with multiple options to meet their specific design requirements.
TPD12S015AYFFR Key Technical Attributes
Manufacturer Part Number: TPD12S015AYFFR
Manufacturer: Luminary Micro / Texas Instruments
Package / Case: 28-UFBGA, DSBGA
TPD12S015AYFFR Packing Size
Type: Tape & Reel (TR)
Material: 28-DSBGA (2.79x1.59)
Pin Configuration: Surface Mount
Thermal Characteristics: Moisture Sensitivity Level (MSL): 1 (Unlimited)
Electrical Properties: Voltage - Supply: 1.1 V ~ 3.6 V, 2.3 V ~ 5.5 V
TPD12S015AYFFR Application
The TPD12S015AYFFR is designed for use in PDA's, Portable Audio/Video Equipment, and Smartphones.
TPD12S015AYFFR Features
The TPD12S015AYFFR offers an integrated HDMI interface solution with a 28-DSBGA configuration. It supports a broad supply voltage range from 1.1 V to 5.5 V, making it versatile for various digital applications. Its robust design includes features that protect against electrostatic discharge and other electronic inconsistencies, ensuring smooth and reliable operation.
TPD12S015AYFFR Quality and Safety Features
This Integrated Circuit (IC) is lead-free and RoHS compliant, adhering to international safety and environmental standards. It also comes with a high Moisture Sensitivity Level (MSL) of 1, indicating its robustness against humidity and temperature fluctuations during storage and operation.
TPD12S015AYFFR Compatibility
The TPD12S015AYFFR is compatible with a variety of applications that require HDMI functionality, particularly catering to the digital needs of PDA's, Portable Audio/Video devices, and Smartphones.
TPD12S015AYFFR Datasheet PDF
For the most authoritative and detailed information on the TPD12S015AYFFR, please download the datasheet PDF available on our website. This datasheet will provide comprehensive specifications and installation guidance necessary for optimal utilization of the product.
