The DAC7741YC/2KG4 is a precision digital-to-analog converter integrated circuit manufactured by Texas Instruments (formerly Luminary Micro), designed to transform digital signals into accurate analog voltage outputs for demanding industrial and instrumentation applications. This high-performance DAC belongs to the data acquisition IC family, specifically engineered to address the critical design challenges of maintaining signal integrity, minimizing conversion errors, and delivering stable voltage outputs in systems requiring precise analog control.
At its core, this device features a 16-bit resolution converter utilizing R-2R ladder architecture, enabling it to produce 65,536 discrete voltage levels for exceptionally fine output granularity. The converter accepts digital input through a parallel data interface, facilitating high-speed data transfer and simplified integration with microcontrollers and digital signal processors. With a single D/A converter channel providing voltage-buffered output, the device delivers robust drive capability without requiring external buffering stages in most applications. The settling time of 5 microseconds ensures rapid response to input changes, making it suitable for dynamic signal generation and real-time control systems.
The power supply configuration demonstrates versatility with dual analog supply voltage ranges of ±11.4V to ±15.75V and -4.75V to -15.75V, accommodating various system architectures, while the digital circuitry operates from a standard 5V supply. This flexible voltage reference system supports both external and internal reference options, allowing designers to optimize performance based on application-specific accuracy requirements. The device maintains excellent linearity performance with maximum integral nonlinearity (INL) of ±3 LSB and differential nonlinearity (DNL) of ±1 LSB, ensuring monotonic operation and minimal conversion errors across the full output range.

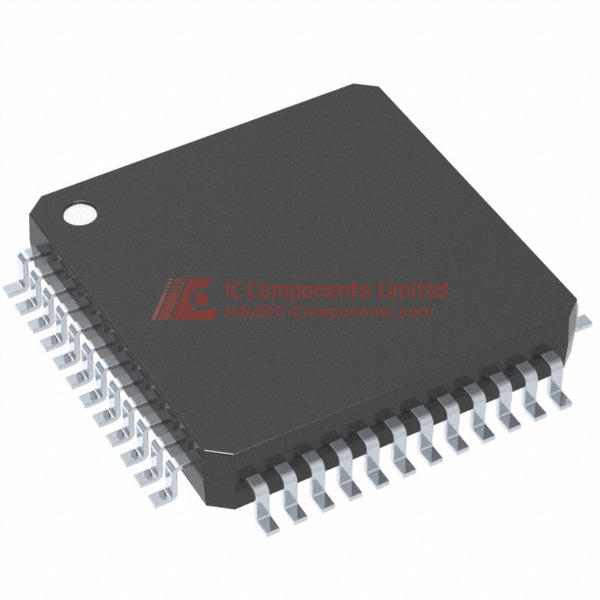

Housed in a compact 48-pin LQFP (Low-profile Quad Flat Package) measuring 7x7mm, this surface-mount component addresses space constraints in modern electronic designs while providing adequate pin count for comprehensive functionality and control. The package is fully RoHS3 compliant, meeting current environmental regulations for lead-free manufacturing. Rated for industrial temperature operation from -40°C to 85°C, the DAC7741YC/2KG4 maintains reliable performance across harsh environmental conditions. The device is supplied in tape and reel packaging, facilitating automated assembly processes for high-volume manufacturing.
Primary advantages include exceptional resolution for precise analog control, flexible power supply options for diverse system integration, buffered output eliminating the need for additional amplification stages, and robust industrial-grade temperature performance. The parallel interface enables straightforward microprocessor connectivity, while the combination of internal and external reference options provides design flexibility for optimizing noise performance and accuracy.
This DAC finds extensive application in industrial process control systems, precision instrumentation, automated test equipment, programmable power supplies, motor control systems, waveform generation, sensor calibration equipment, and data acquisition systems where accurate voltage output is paramount. It serves particularly well in applications requiring programmable voltage sources, closed-loop control systems, and high-resolution analog signal synthesis.
Regarding equivalent and alternative models, designers may consider the DAC7741Y, DAC7741YB, and other variants within the DAC7741 family that share the base architecture but may differ in package options or temperature grades. Alternative solutions from Texas Instruments include the DAC8043, DAC8043A, and DAC8043F series offering similar 16-bit resolution. Competing manufacturers provide comparable devices such as Analog Devices' AD5541/AD5542 series, Maxim Integrated's MAX5541/MAX5542 family, and Linear Technology's LTC1650/LTC1655 converters, all offering 16-bit voltage-output DACs with similar performance characteristics, though specific electrical parameters, package options, and interface configurations may vary.
DAC7741YC/2KG4 Key Technical Attributes
Single-channel, 16-bit resolution, voltage-output DAC
48-LQFP package, parallel interface, R-2R architecture
Operating temperature: -40°C to 85°C, RoHS3 compliant
DAC7741YC/2KG4 Packing Size
The DAC7741YC/2KG4 is offered in a 48-LQFP surface-mount package measuring 7x7 mm. This packaging type is favored for its compact footprint, low-profile design, and optimal thermal dissipation characteristics, suited for dense PCB layouts. It comes supplied in Tape & Reel (TR) format to facilitate automated assembly processes and is constructed from robust plastic material to ensure durability during handling. The pin configuration follows the standardized 48-pin layout for LQFP, supporting secure solder connections and reliable electrical contacts.
DAC7741YC/2KG4 Application
This model excels in applications requiring precise digital-to-analog conversion such as automatic testing systems, industrial process control, medical instrumentation, and data acquisition systems. The 16-bit resolution ensures high-fidelity analog output, making it ideal for accurate signal generation in programmable voltage sources and measurement devices.
DAC7741YC/2KG4 Features
The DAC7741YC/2KG4 integrates a fast 5μs settling time, supporting quick and accurate conversions. Its voltage supply range for analog input is ±11.4V to 15.75V (positive rail) and -4.75V to -15.75V (negative rail), ensuring versatile operation under varying system voltages. The digital supply is a standard 5V, compatible with mainstream logic circuits. Users can select either internal or external reference sources to optimize performance for specific designs. The device delivers buffered voltage output for stable signal delivery and supports a parallel interface that accelerates data transfer speeds in high-throughput environments. The R-2R architecture underpins its precision and linearity, with maximum INL/DNL errors of ±3 LSB and ±1 LSB respectively. Its temperature range from -40°C to +85°C covers both commercial and industrial operating conditions.
DAC7741YC/2KG4 Quality and Safety Features
The DAC7741YC/2KG4 adheres to ROHS3 compliance, guaranteeing the absence of hazardous substances and promoting environmentally responsible production and disposal. Its robust LQFP package provides superior protection against mechanical stresses and supports reliable surface mounting. The low INL/DNL specification ensures dependable analog output accuracy, minimizing error rates in critical measurement and control applications.
DAC7741YC/2KG4 Compatibility
This DAC model is compatible with systems requiring parallel interfacing, 5V digital logic, and analog rail voltages within its supply range. The standard 48-LQFP footprint allows seamless integration with a wide variety of PCB designs and socket configurations. It is well-aligned for use with Texas Instruments’ microcontrollers and data acquisition platforms, enabling efficient hardware development cycles.
DAC7741YC/2KG4 Datasheet PDF
We strongly recommend downloading the authoritative datasheet for the DAC7741YC/2KG4 directly from our webpage. The datasheet contains comprehensive performance data, interface specifications, recommended application circuits, and absolute maximum ratings, ensuring successful integration and reliable operation. Our website ensures that you always access the latest and most accurate technical details for this model.
