The RC0603JR-07200KL is a precision surface mount chip resistor manufactured by Yageo, designed for modern electronic applications requiring compact, reliable passive components. This thick film resistor belongs to the chip resistor category within the broader resistors classification, specifically engineered to address the design challenges of miniaturization, thermal stability, and manufacturing efficiency in contemporary electronic circuits.
This component delivers a resistance value of 200 kilohms with a tolerance of ±5%, housed in the industry-standard 0603 package measuring 0.063" L x 0.032" W (1.60mm x 0.80mm) with a maximum seated height of 0.022" (0.55mm). The resistor operates with a power rating of 0.1W (1/10W) and maintains stable performance across an operating temperature range of -55°C to 155°C, featuring a temperature coefficient of ±100ppm/°C. The thick film composition provides excellent stability and reliability while the moisture-resistant design ensures consistent performance in various environmental conditions.
Key specifications include RoHS compliance with lead-free construction, Moisture Sensitivity Level (MSL) 1 rating allowing unlimited floor life, and two terminations for straightforward surface mount installation. The component is supplied in tape and reel packaging with a standard package quantity of 5,000 units, facilitating automated assembly processes. The part maintains an active status with a manufacturer standard lead time of 29 weeks.
The primary advantages of this resistor include its compact footprint enabling high-density circuit designs, excellent thermal stability across wide temperature ranges, moisture resistance for enhanced reliability, and compatibility with automated pick-and-place assembly equipment. The 0603 package size represents an optimal balance between miniaturization and handling capability, while the thick film technology ensures consistent electrical characteristics and long-term stability.
This resistor demonstrates broad compatibility with standard surface mount assembly processes, reflow soldering profiles, and automated manufacturing equipment. The component integrates seamlessly with modern PCB designs and supports both prototype and high-volume production requirements.
Primary application areas encompass consumer electronics, telecommunications equipment, automotive electronics, industrial control systems, medical devices, and computing hardware where space constraints and reliability are critical factors. The 200K ohm value makes it particularly suitable for signal conditioning, voltage dividers, pull-up/pull-down applications, and analog circuit implementations.
Equivalent models and alternatives include the Yageo RC series variants with different resistance values, Vishay CRCW0603 series resistors, Panasonic ERJ-3EKF series components, Rohm ESR03 series resistors, and KOA Speer RK73H series parts. Alternative manufacturers offering comparable 0603 thick film resistors include Bourns CR0603 series, Samsung RC1608 series, Walsin WR06X series, and Susumu RG1608 series components. These alternatives typically share similar package dimensions, power ratings, and electrical characteristics while potentially offering different tolerance options, temperature coefficients, or specialized features for specific applications.
RC0603JR-07200KL (1)
RC0603JR-07200KL Key Technical Attributes
200 kOhms Resistance
±5% Tolerance
0.1W Power Rating
RC0603JR-07200KL Packing Size

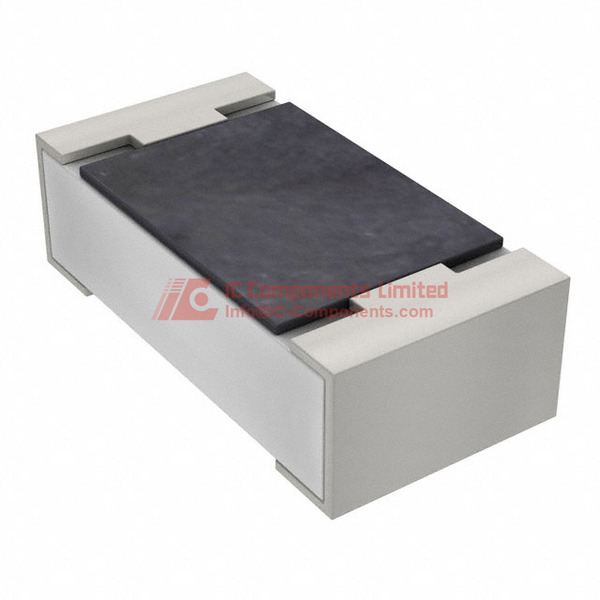

This product is a surface mount chip resistor in the 0603 package, which means the dimensions are 0.063 inches (1.60mm) long by 0.032 inches (0.80mm) wide, with a maximum seated height of 0.022 inches (0.55mm). The chip resistor comes in Tape & Reel (TR) packaging, optimized for automated placement during manufacturing, and has a supplier device package of 0603 (1608 Metric). It features two terminations and is designed to handle up to 0.1 watt of power. The resistor material composition is thick film, giving it stable electrical properties and good durability.
RC0603JR-07200KL Application
This RC0603JR-07200KL resistor from Yageo is commonly used in consumer electronics, industrial equipment, telecommunications devices, automotive circuits, and computing hardware. It is suitable for applications where space is limited and precision is not the highest priority but reliability and compactness are required.
RC0603JR-07200KL Features
The Yageo RC series RC0603JR-07200KL offers moisture resistance, making it suitable for use in environments prone to varied humidity or exposure to moisture. With a temperature coefficient of ±100ppm/°C, the resistance value remains relatively stable across a wide temperature range from -55°C to 155°C. Its thick film construction ensures robust performance and long operational life, while the ±5% tolerance allows for general-purpose use. The product's active status means it is currently in production and available for new designs. The standard package contains 5,000 units, supporting high-volume manufacturing needs.
RC0603JR-07200KL (2)
RC0603JR-07200KL Quality and Safety Features
This model is certified lead-free and fully RoHS compliant, ensuring safety for both users and the environment. The device features a Moisture Sensitivity Level (MSL) of 1, which means there are no special requirements for storage or handling, contributing to process reliability. Yageo’s manufacturing standards provide tightly controlled production batches and consistently high product reliability.
RC0603JR-07200KL Compatibility
The RC0603JR-07200KL surface mount resistor integrates easily with all standard 0603 footprint PCBs and is compatible with automated SMT equipment. It is also backward compatible with any designs calling for resistors of similar rating in the 1608 metric format, making it a convenient drop-in solution for upgrades or replacements.
RC0603JR-07200KL Datasheet PDF
For the most accurate and comprehensive information regarding the RC0603JR-07200KL, please download the authoritative datasheet directly from our website. IC-Components ensures that you access the official and latest documentation so you can make informed decisions—simply download the datasheet from this page to review all electrical, mechanical, and environmental specifications in detail.
