The TDK Corporation C0402C0G1C910G is a high-precision ceramic multilayer capacitor (MLCC) designed for versatile electronic applications. This compact surface-mount component offers exceptional performance in a remarkably small form factor, measuring just 0.016" x 0.008" (0.40mm x 0.20mm), making it ideal for modern miniaturized electronic devices that demand space-efficient solutions.
Engineered with a C0G/NP0 temperature coefficient, this capacitor provides exceptional stability across a wide operating temperature range from -55°C to 125°C, ensuring consistent electrical characteristics in diverse environmental conditions. The component features a 91 pF capacitance rating with a tight ±2% tolerance, delivering precise and reliable electrical performance critical for sophisticated electronic circuits.
Rated at 16V, this MLCC is particularly suited for general-purpose applications in telecommunications, consumer electronics, automotive systems, and industrial equipment. Its robust design and surface-mount packaging allow for easy integration into compact electronic assemblies, supporting the ongoing trend of miniaturization in electronic design.
The capacitor's tape and reel packaging facilitates automated assembly processes, enhancing manufacturing efficiency. Its exceptional temperature stability, compact dimensions, and high-reliability specifications make it a preferred choice for engineers seeking dependable passive components in demanding electronic environments.
Equivalent models in the market include similar MLCC capacitors from manufacturers like Murata, Samsung Electro-Mechanics, and Yageo, offering comparable specifications in the 0402 metric package size with C0G/NP0 characteristics.

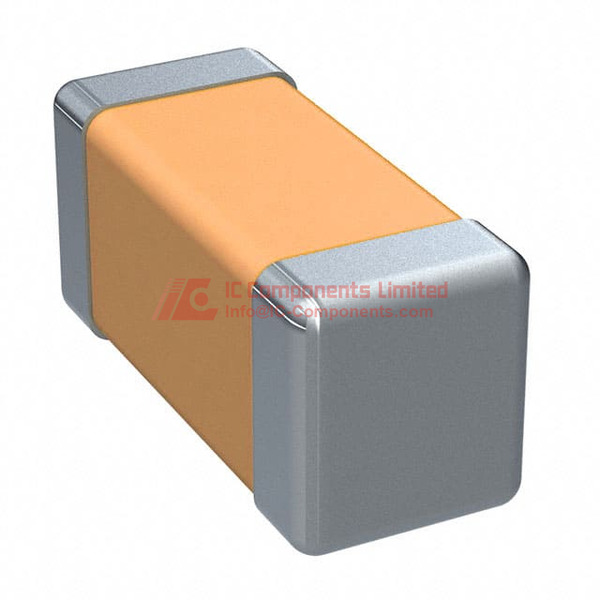

C0402C0G1C910G (1)
C0402C0G1C910G Key Technical Attributes
Capacitance: 91 pF
Rated Voltage: 16V
Tolerance: ±2%
C0402C0G1C910G Packing Size
This product is packaged using Tape & Reel (TR) for automated assembly processes, ensuring consistent and efficient use in high-volume production. The component follows a 01005 (0402 Metric) size with extremely compact dimensions of 0.016" length × 0.008" width (0.40mm × 0.20mm) and a maximum thickness of 0.009" (0.22mm). The pin configuration is designed for Surface Mount Technology (SMT) with multilayer ceramic construction, which provides robust mechanical strength and stable electrical performance even under thermal stress. The package material offers excellent thermal characteristics to support reliable operation within the specified temperature range.
C0402C0G1C910G Application
The C0402C0G1C910G is specifically designed for general purpose applications in compact electronic circuits. It is ideal for use in power supply lines, filtering, signal coupling and decoupling, oscillator circuits, and timing components in a wide array of consumer, industrial, and automotive electronic devices where space efficiency and precise capacitance are critical.
C0402C0G1C910G Features
This multilayer ceramic capacitor (MLCC) utilizes a C0G (NP0) dielectric, offering an ultra-stable temperature coefficient with minimal change in capacitance over the full operating temperature range from -55°C to 125°C. It delivers low dielectric loss, ensuring high-frequency performance and very low equivalent series resistance (ESR). The device holds a very tight capacitance tolerance of ±2%, making it ideal for frequency-determining circuits and applications where precision is paramount. Its robust surface mount design supports high-density PCB layouts, while the compact 01005 (0402 metric) footprint suits next-generation miniaturized electronics. Additionally, the component's ceramic material offers high insulation resistance and superior reliability against mechanical stress, humidity, and voltage fluctuations.
C0402C0G1C910G Quality and Safety Features
Produced by TDK Corporation, this component meets stringent quality control and environmental standards. It is manufactured using premium grade raw materials and undergoes comprehensive electrical and mechanical testing. The capacitor complies with major safety certifications, with high insulation resistance, long operating life, and stable electrical properties even in demanding environments. The multilayer construction provides inherent self-healing capabilities and minimizes the risk of short-circuit failures, ensuring safety and durability in mission-critical designs.
C0402C0G1C910G Compatibility
The C0402C0G1C910G capacitor demonstrates full compatibility with industry-standard SMT assembly processes, making it suitable for integration into automated pick-and-place systems. Its universal 01005 (0402 Metric) form factor and electrical characteristics allow seamless replacement or design-in for a broad spectrum of PCB designs, especially in applications demanding miniaturization and high reliability.
C0402C0G1C910G Datasheet PDF
For authoritative and comprehensive technical details, customers are strongly encouraged to download the official datasheet for the C0402C0G1C910G from our website. Our datasheet is the most up-to-date and detailed resource available for this product model. Please visit this page to access the latest information and ensure optimal performance in your application.
