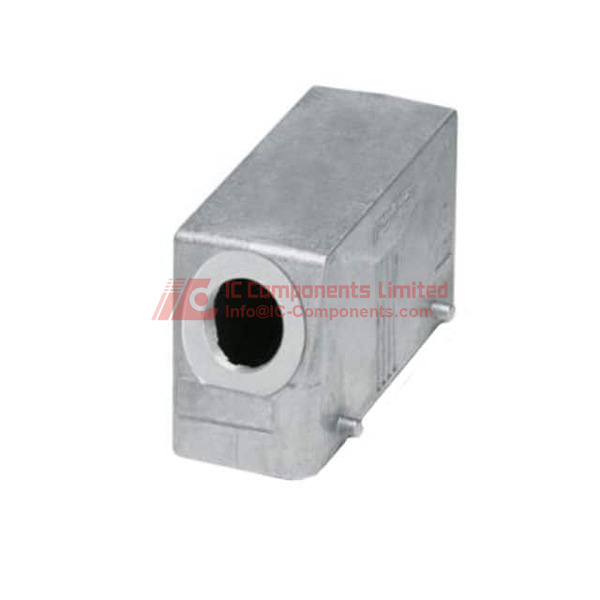

1412774

In Stock 2019 pcs Reference Price(In US Dollars)
1+
$20.8632
Manufacturer Part Number:
1412774
Manufacturer / Brand
Phoenix Contact
Part of Description:
CONN HOOD SIDE ENTRY SZB24 M32
Datasheets:
1412774.pdf
Lead Free Status / RoHS Status:
RoHS Compliant
Stock Condition:
New original, 2019 pcs Stock Available.
ECAD Model:
Ship From:
Hong Kong
Shipment Way:
DHL/Fedex/TNT/UPS

Inquiry Online

Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Info@IC-Components.com
Part Number
Manufacturer
Require Quantity
Target Price(USD)
Company Name
Contact Name
E-mail
Phone
Message
Please enter Verify Code and click "Submit"
Part Number 1412774
Manufacturer / Brand Phoenix Contact
Stock Quantity 2019 pcs Stock
Category Connectors, Interconnects > Heavy Duty Connectors - Heavy Duty Connector Housings, Hoods, Bases
Description CONN HOOD SIDE ENTRY SZB24 M32
Lead Free Status / RoHS Status: RoHS Compliant
Thread Size M32
Style Side Entry
Size / Dimension 4.724' L x 1.732' W x 2.362' H (120.00mm x 44.00mm x 60.00mm)
Size B24
Series HEAVYCON® B
Package Bulk
Operating Temperature -40°C ~ 125°C
Lock Location Locking Clip (2) on Base Bottom
Ingress Protection IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Housing Material Aluminum, Die Cast
Housing Finish -
Housing Color -
Features Salt Water Resistant
Connector Type Hood
