The PRTR5V0U2X,215 is a specialized transient voltage suppressor (TVS) diode designed by NXP Semiconductors, specifically engineered for robust power line protection and signal integrity in electronic systems. This compact surface-mount device provides exceptional electromagnetic interference (EMI) and electrostatic discharge (ESD) protection for sensitive electronic components.
Featuring a sophisticated SOT-143B package, the TVS diode offers bidirectional protection with two unidirectional channels, capable of handling voltage transients up to 5.5V with a breakdown voltage of 6V. Its exceptional design addresses critical challenges in electronic circuit protection, particularly in high-reliability applications where component durability and signal preservation are paramount.
The device operates effectively across a wide temperature range from -40°C to 85°C, making it versatile for diverse environmental conditions. Its ultra-low capacitance of 1pF at 1MHz ensures minimal signal interference, preserving circuit performance while providing robust protection against electrical stress.
Primary applications include general-purpose electronic systems requiring reliable power line protection, such as telecommunications equipment, automotive electronics, consumer devices, and industrial control systems. The device's surface-mount configuration allows for easy integration into compact and sophisticated electronic designs.
Key advantages include its compact form factor, low parasitic capacitance, high reliability, and comprehensive protection against transient voltage events. The RoHS compliance further enhances its suitability for modern electronic manufacturing standards.
Equivalent or alternative models in the market might include similar TVS diodes from manufacturers like Texas Instruments, Littelfuse, and Vishay, though the specific PRTR5V0U2X,215's unique characteristics make it distinctively positioned in the market.
The substantial quantity of 23,000 units available suggests this is a popular component for large-scale electronic manufacturing and prototyping needs, offering engineers a reliable and consistent solution for circuit protection.
PRTR5V0U2X,215 Key Technical Attributes
5.5V Maximum Reverse Standoff Voltage
6V Minimum Breakdown Voltage
1pF Capacitance at 1MHz
PRTR5V0U2X,215 Packing Size

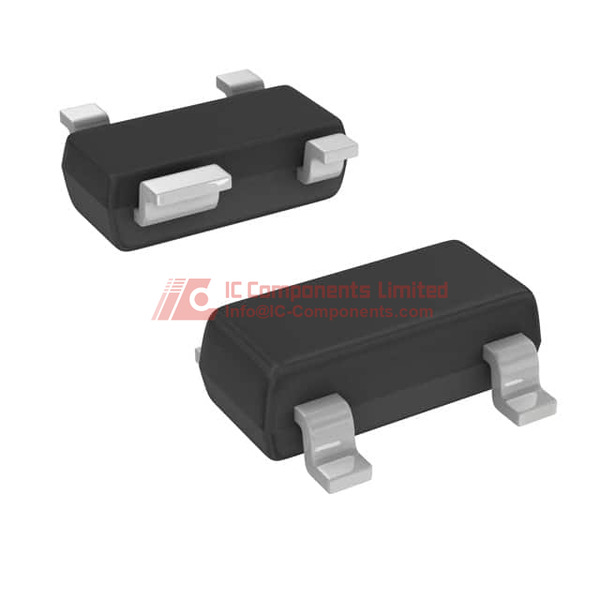

The PRTR5V0U2X,215 TVS Diode is supplied in a compact SOT-143B package, supporting high-density surface mount designs. The tape & reel packaging format is optimized for automated production lines, ensuring efficient handling and storage for quantities such as 23,000 units. This device features a 4-pin configuration, compatible with TO-253-4 (TO-253AA) footprints, and provides robust thermal characteristics suitable for operation across wide temperature extremes.
PRTR5V0U2X,215 Application
This model is intended for general-purpose use, particularly in protecting sensitive circuits against transient voltage spikes. It is ideal for use in signal line and power line protection in consumer electronics, industrial controllers, and communication equipment applications.
PRTR5V0U2X,215 Features
The PRTR5V0U2X,215 boasts a rail-to-rail (steering) diode configuration, enabling superior performance for both positive and negative transients. Its low capacitance of 1pF at 1MHz minimizes signal distortion, making it especially suitable for high-speed data line and interface applications. The maximum reverse standoff voltage of 5.5V and minimum breakdown voltage of 6V ensure reliable clamping action under surge conditions, protecting downstream components. This device has two unidirectional channels for comprehensive ESD and surge protection. It supports a temperature operation range from -40°C to +85°C, making it suitable for demanding environments. The device is RoHS compliant, responding to industry regulations on hazardous substances.
PRTR5V0U2X,215 Quality and Safety Features
This product is qualified according to international solid-state device safety standards, delivering consistent, reliable protection in line with stringent quality norms. Its proven performance in electrostatic discharge (ESD) and transient voltage defenses ensures safeguarding of high-value electronics against common electrical hazards.
PRTR5V0U2X,215 Compatibility
The TVS diode is designed to be compatible with a variety of SOT-143B footprints and is suitable for modern surface mount PCB assembly. Standard pin configuration allows easy integration into a wide array of circuit designs. It can also be cross-matched with other steering-type TVS diodes in similar voltage ranges, streamlining product selection and design processes.
PRTR5V0U2X,215 Datasheet PDF
We provide the most authoritative and up-to-date datasheet for the PRTR5V0U2X,215 directly on our website. For comprehensive technical data, electrical characteristics, and application guidelines, we strongly recommend downloading the datasheet from the current page to ensure you have the best reference material for your engineering or procurement needs.
