The MAX6328UR31+T is a single-channel power management integrated circuit (PMIC) supervisor from Maxim Integrated. It is designed to provide reliable power-on reset (POR) and monitoring functions in a wide range of electronic devices and systems.
The MAX6328UR31+T is part of Maxim's PMIC supervisor product category, which is a subcategory of integrated circuits (ICs). It is housed in a compact SOT-23-3 package, making it suitable for space-constrained applications. The device operates over a wide temperature range of -40°C to 85°C, ensuring reliable performance in diverse environmental conditions.
The key features of the MAX6328UR31+T include:
- Voltage monitoring and power-on reset (POR) functionality
- Single-channel design with an open-drain or open-collector output
- Adjustable reset threshold with a default value of 3.08V
- Minimum reset timeout of 100 ms
- Active-low logic output
- Lead-free and RoHS-compliant construction
The primary advantages of the MAX6328UR31+T include its small form factor, wide operating temperature range, and reliable power monitoring capabilities. It is well-suited for applications that require robust power management and supervision, such as portable electronics, industrial controls, and embedded systems.
The MAX6328UR31+T is compatible with a variety of electronic devices and can be used in conjunction with other power management components, such as voltage regulators and power supplies.
Equivalent or alternative models available from Maxim Integrated include:
- MAX6327 series: Similar PMIC supervisors with different voltage monitoring thresholds and features
- MAX6328 series: Variants of the MAX6328 with different package options and temperature ranges
- MAX6329 series: Supervisors with integrated voltage reference and additional monitoring capabilities
These alternative models may offer different reset thresholds, package options, or additional features to meet the specific requirements of your application.

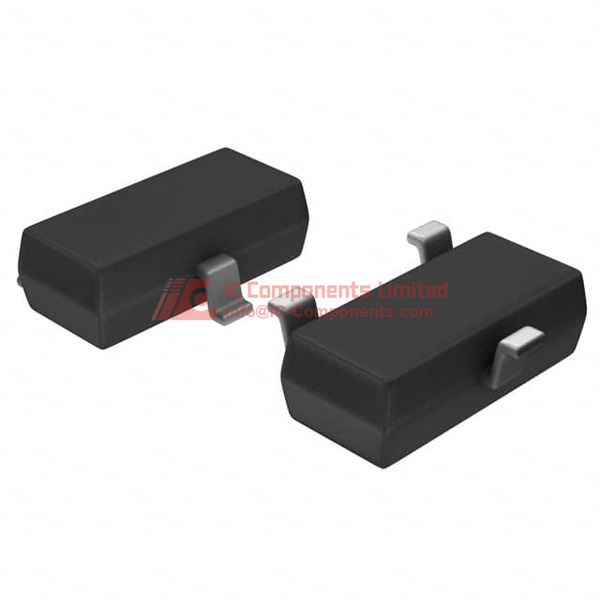

MAX6328UR31+T (1)
MAX6328UR31+T Key Technical Attributes
Manufacturer Part Number MAX6328UR31+T
Manufacturer Maxim Integrated
Main Category Integrated Circuits (ICs)
MAX6328UR31+T Packing Size
Package Type SOT-23-3
Material Type Tape & Reel (TR)
Pin Configuration 3 pins
Thermal Characteristics -40°C ~ 85°C (TA)
Electrical Properties 3.08V voltage reset
MAX6328UR31+T Application
Application includes use in power monitoring circuits within commercial and industrial electronics for simple reset/power-on reset functions.
MAX6328UR31+T Features
The MAX6328UR31+T features a supervisor open drain or open collector with one monitoring channel. The reset logic is active low, and there is a reset timeout of 100 ms minimum. It is designed for mounting on the surface and its quiescent current is minimal, ensuring low power consumption. The reset tolerance feature provides reliable operation by maintaining system integrity through automatic resets under specific conditions.
MAX6328UR31+T Quality and Safety Features
ROHS compliant indicating lead free and safety adherence
High reliability under industry standard supervision protocol of operational temperatures ranging from -40°C to 85°C.
MAX6328UR31+T Compatibility
Compatible with applications requiring voltage monitoring, open drain or open collector output with active low logic type reset.
MAX6328UR31+T Datasheet PDF
The most authoritative and detailed datasheet PDF for MAX6328UR31+T is available on our website. Customers are recommended to download it directly on the current page for complete and accurate technical information.
