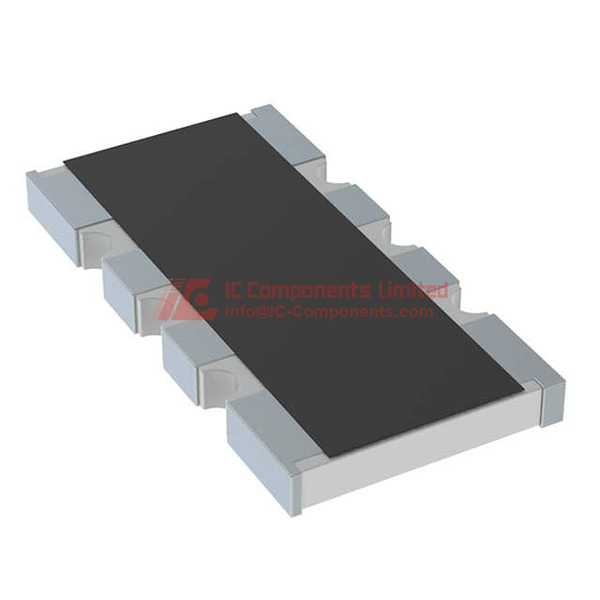

The CAY16-330J4LF from Bourns, Inc. is a surface mount resistor network array designed to provide four isolated 33-ohm resistors in a compact, space-saving configuration. This component belongs to the resistor networks and arrays category, offering an efficient solution for applications requiring multiple resistors with identical values while minimizing board real estate and simplifying assembly processes.
This resistor array addresses critical design challenges including PCB space optimization, component count reduction, and manufacturing efficiency. By integrating four separate resistors into a single 1206 (3.20mm x 1.60mm) package with convex long side terminals, it significantly reduces placement time and potential assembly errors compared to using individual discrete resistors. The isolated circuit type ensures that each resistor operates independently, providing design flexibility for various circuit configurations requiring separate signal paths or current limiting functions.
Key specifications include a resistance value of 33 ohms per element with ±5% tolerance, operating across a wide temperature range of -55°C to 125°C with a temperature coefficient of ±200ppm/°C. The device features 8 pins to accommodate the four resistor elements, with each element rated for 62.5mW power dissipation. The maximum seated height of 0.024 inches (0.60mm) makes it suitable for low-profile applications, and it comes in tape and reel packaging for automated pick-and-place assembly. The component is RoHS3 compliant, meeting current environmental regulations.
Primary advantages include reduced PCB footprint compared to four discrete resistors, improved manufacturing efficiency through decreased component count, consistent matching characteristics between resistors due to monolithic construction, and enhanced reliability through reduced solder joints. The surface mount design facilitates automated assembly processes, while the isolated configuration provides maximum circuit design flexibility.
This resistor array is compatible with standard SMT assembly equipment and reflow soldering processes. It finds application in numerous areas including pull-up/pull-down resistor networks, LED current limiting circuits, signal termination, voltage divider networks, I/O port protection, bus termination, analog and digital circuit biasing, and general-purpose current limiting applications across consumer electronics, industrial controls, telecommunications equipment, automotive systems, and computing devices.
Equivalent and alternative models within the Bourns CAY16 series include various resistance values sharing the same package and configuration, while competing manufacturers offer comparable products such as the CTS/Resistor Products 742C series, Panasonic EXB-V8V series, Yageo YC164 series, and KOA Speer CN series, all providing similar 4-resistor isolated arrays in 1206 packages with varying resistance values and tolerances to suit different application requirements.
CAY16-330J4LF Key Technical Attributes
Resistance: 33 Ohms
Circuit Type: Isolated
Tolerance: ±5%
CAY16-330J4LF Packing Size
The product is packaged in 1206 surface mount configuration, measuring 3.20mm x 1.60mm (0.126" L x 0.063" W). Each unit features a tape & reel (TR) package style suitable for automated assembly processes, with a maximum height seated at 0.60mm. The array consists of 8 pins with long side terminals, providing efficient thermal dissipation and reliable electrical connections. The component supports a maximum power per element of 62.5mW and is compliant with RoHS3 standards, ensuring environmental safety in packing and materials.
CAY16-330J4LF Application
The CAY16-330J4LF resistor network is ideal for use in voltage divider circuits, pull-up/pull-down applications, signal conditioning, and current limiting functions in consumer electronics, telecommunications devices, industrial control systems, and computing equipment. Its isolated circuit type and compact packaging make it highly suitable for high-density PCB layouts where space is at a premium.
CAY16-330J4LF Features
This resistor array boasts four isolated 33 Ohm resistors in a single package, optimizing board space and reducing placement costs. The ±5% tolerance ensures reliable signal management and consistency across multiple boards. With a temperature coefficient of ±200ppm/°C, the device delivers stable performance across a broad operating temperature range (-55°C to +125°C). Its convex, long side terminal structure increases solderability and enhances mechanical endurance. The surface mount design is ideal for automated pick-and-place assembly, and the tape and reel packaging further streamlines manufacturing workflows.
CAY16-330J4LF Quality and Safety Features
The CAY16-330J4LF complies with RoHS3, eliminating hazardous substances and supporting green manufacturing initiatives. The surface mount construction promotes robust mechanical attachment, reducing the risk of detachment under stress or vibration. Its reliable electrical properties, consistent tolerance, and stable thermal performance ensure safe long-term operation in demanding environments.
CAY16-330J4LF Compatibility
Engineered for compatibility with standard 1206 (3216 metric) surface mount layouts, this resistor network integrates seamlessly into modern PCB designs. It supports automated assembly processes and is aligned with industry standards for resistor arrays. The product is fully compatible with a wide range of Bourns CAY16 series devices, offering flexibility in design choices.
CAY16-330J4LF Datasheet PDF
Our website features the most authoritative and up-to-date datasheet for the CAY16-330J4LF model. For complete technical specifications, recommended soldering profiles, and detailed performance graphs, customers are strongly encouraged to download the datasheet directly from the current page to ensure accurate use and optimal design integration.
