Home > Products > Capacitors > Tantalum Capacitors > TAP336M016SRW
KYOCERA AVX

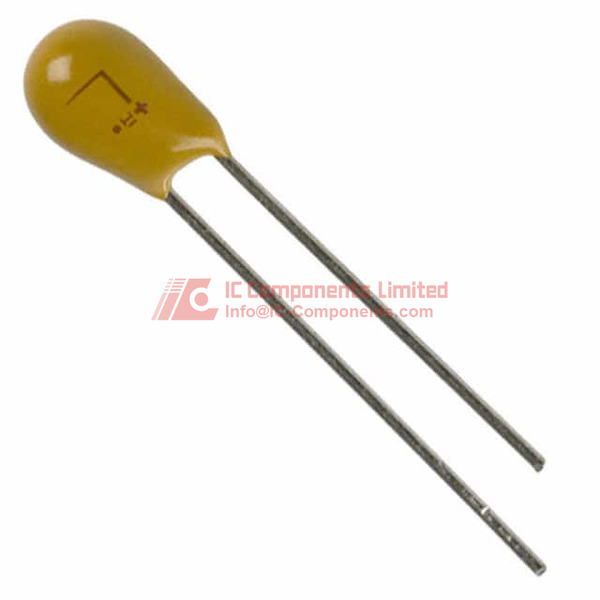

TAP SCS SERIES 10.0H,6.0D.jpg ImageView larger image
Image may be representation.
See specs for product details.

TAP336M016SRW

In Stock 50000 pcs Reference Price(In US Dollars)
1+
$1.7351
10+
$1.4029
50+
$1.2248
100+
$1.0717
500+
$0.8165
Manufacturer Part Number:
TAP336M016SRW
Manufacturer / Brand
KYOCERA AVX
Part of Description:
CAP TANT 33UF 20% 16V RADIAL
Datasheets:
TAP336M016SRW(1).pdfTAP336M016SRW(2).pdf
Lead Free Status / RoHS Status:
ROHS3 Compliant
Stock Condition:
New original, 50000 pcs Stock Available.
ECAD Model:
Ship From:
Hong Kong
Shipment Way:
DHL/Fedex/TNT/UPS

Inquiry Online

Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Info@IC-Components.com
Part Number
Manufacturer
Require Quantity
Target Price(USD)
Company Name
Contact Name
E-mail
Phone
Message
Please enter Verify Code and click "Submit"
Part Number TAP336M016SRW
Manufacturer / Brand KYOCERA AVX
Stock Quantity 50000 pcs Stock
Category Capacitors > Tantalum Capacitors
Description CAP TANT 33UF 20% 16V RADIAL
Lead Free Status / RoHS Status: ROHS3 Compliant
RFQ TAP336M016SRW Datasheets TAP336M016SRW Details PDF
TAP336M016SRW Details PDF for FR.pdf
TAP336M016SRW Details PDF for KR.pdf
TAP336M016SRW Details PDF for DE.pdf
TAP336M016SRW Details PDF for IT.pdf
TAP336M016SRW Details PDF for ES.pdf
Voltage - Rated 16 V
Type Conformal Coated
Tolerance ±20%
Size / Dimension 0.236' Dia (6.00mm)
Series TAP
Package / Case Radial
Package Tape & Reel (TR)
Operating Temperature -55°C ~ 125°C
Mounting Type Through Hole
Manufacturer Size Code F
Lifetime @ Temp. 1000 Hrs @ 85°C
Lead Spacing 0.098' (2.50mm)
Height - Seated (Max) 0.394' (10.00mm)
Features General Purpose
Failure Rate -
ESR (Equivalent Series Resistance) 1.6Ohm
Capacitance 33 µF
