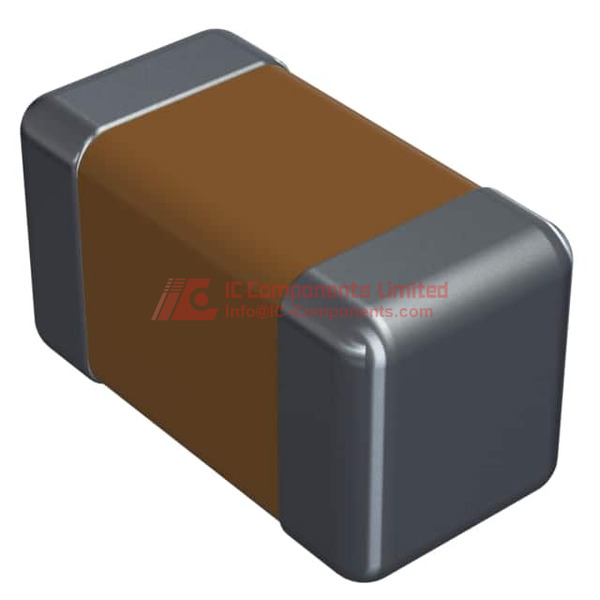

The AVX (KYOCERA AVX) 06035C223MAT4A is a high-performance ceramic multilayer chip capacitor (MLCC) designed for versatile electronic applications. This compact surface-mount component offers precise electrical characteristics suitable for general-purpose power and signal conditioning circuits.
Measuring just 0.063" x 0.032" (1.60mm x 0.81mm), the capacitor provides a robust 0.022µF capacitance with a 50V rating, making it ideal for a wide range of electronic design requirements. Its X7R temperature coefficient ensures stable performance across a challenging -55°C to 125°C operating temperature range, delivering consistent electrical characteristics under varying environmental conditions.
The capacitor features a ±20% tolerance, which allows for flexible integration into different circuit designs. Its surface-mount packaging in the standard 0603 (1608 metric) format enables efficient PCB assembly and supports modern miniaturization trends in electronic manufacturing.
Key advantages include its compact form factor, reliable temperature performance, and broad compatibility with general-purpose electronic applications. The component is RoHS compliant, ensuring environmental sustainability and adherence to contemporary manufacturing standards.
Potential application areas encompass consumer electronics, automotive systems, industrial control equipment, telecommunications infrastructure, and medical devices where compact, stable capacitance is critical.
Equivalent alternative models might include similar MLCC capacitors from manufacturers like Murata, Samsung Electro-Mechanics, and TDK, offering comparable electrical specifications in the 0603 package format.
The component is supplied in a convenient tape and reel packaging, facilitating streamlined electronic component procurement and assembly processes.
06035C223MAT4A Key Technical Attributes
Capacitance: 0.022μF
Voltage Rating: 50V
Tolerance: ±20%
Temperature Range: -55°C to 125°C
Dielectric Type: X7R
06035C223MAT4A Packing Size
The AVX (KYOCERA AVX) 06035C223MAT4A features compact dimensions at 0.063 inches in length and 0.032 inches in width (1.60mm x 0.81mm), with a thickness up to 0.035 inch (0.90mm). It is offered in the industry-standard 0603 (1608 Metric) surface mount package and is supplied in Tape & Reel (TR) format, making it fully compatible with automated assembly processes.
06035C223MAT4A Application
Primarily designed for general purpose use, this capacitor is ideally suited for a variety of electronic devices and circuit board applications that require stable capacitance values, reliable filtering, and efficient decoupling capabilities within a wide range of operating conditions.
06035C223MAT4A Features
The 06035C223MAT4A is a multilayer ceramic capacitor (MLCC) constructed using advanced X7R dielectric material, ensuring consistent performance across temperature fluctuations from -55°C to 125°C. Its 0.022μF capacitance and 50V voltage rating make it versatile for both signal and power line filtering applications. The compact 0603 size package supports high-density PCB layouts, while the ±20% tolerance provides operational flexibility across different use-cases. Surface mount termination allows for easy and reliable placement with automatic soldering equipment. With robust ceramic construction, it provides a high degree of mechanical strength and excellent insulation resistance, enabling resilience under demanding operating environments.
06035C223MAT4A Quality and Safety Features
This component is RoHS compliant, ensuring environmentally responsible manufacturing processes. The encapsulation offers significant protection against mechanical shock, moisture, and other environmental factors. The X7R dielectric material is recognized for its stable dielectric constant, making it suitable for circuits that demand reliability and precision. The capacitor is rated to withstand a broad operating temperature range, thereby supporting the safe and consistent operation of electronic assemblies.
06035C223MAT4A Compatibility
The AVX 06035C223MAT4A is widely compatible with various general-purpose electronic assemblies and power management systems. It can be used in conjunction with other standard 0603-size components and fits seamlessly into automated surface-mount manufacturing lines, supporting both small- and large-scale production requirements.
06035C223MAT4A Datasheet PDF
For comprehensive and authoritative technical details, we strongly recommend downloading the official datasheet for the 06035C223MAT4A model directly from our website. Our platform provides the most up-to-date and reliable documentation for this product, ensuring that you always have access to essential specifications and compliance information.
