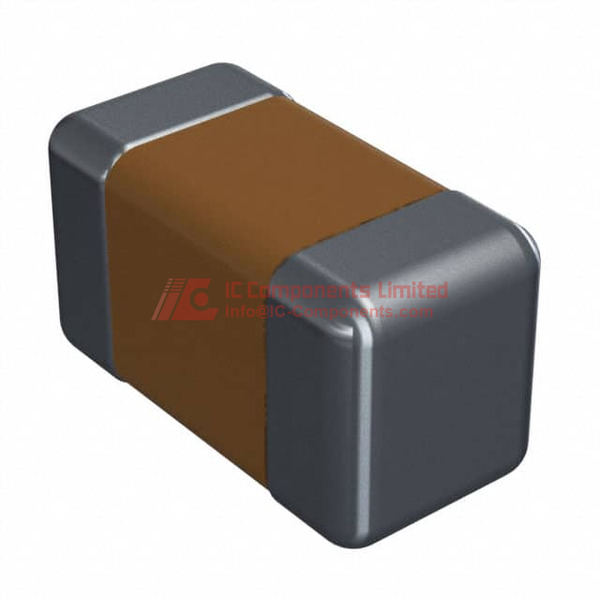

The AVX (KYOCERA AVX) 04025A220JAQ2A is a high-performance ceramic capacitor designed for versatile electronic applications. This compact surface-mount multilayer ceramic capacitor (MLCC) offers precise electrical characteristics in an extremely small form factor, measuring just 0.039" x 0.020" (1.00mm x 0.50mm), making it ideal for modern miniaturized electronic designs.
Engineered with a C0G/NP0 temperature coefficient, this 22 pF capacitor ensures exceptional stability across a wide temperature range from -55°C to 125°C, providing reliable performance in demanding environmental conditions. The capacitor is rated at 50V with a tight ±5% tolerance, which ensures consistent and predictable electrical behavior in various circuit applications.
The component's surface-mount design allows for easy integration into compact electronic assemblies, supporting general-purpose applications across multiple industries such as telecommunications, consumer electronics, automotive systems, and industrial equipment. Its robust construction and compact 0402 (1005 Metric) package make it particularly suitable for space-constrained electronic designs requiring high-precision capacitance.
Packaged in a tape and reel format, this capacitor facilitates streamlined manufacturing processes and supports automated pick-and-place assembly techniques. The device meets RoHS compliance requirements, ensuring environmental responsibility and adherence to global electronic manufacturing standards.
While specific equivalent models are not directly listed in the specifications, similar ceramic capacitors from manufacturers like Murata, TDK, and Samsung Electro-Mechanics would likely offer comparable electrical and mechanical characteristics in the same 0402 form factor.
04025A220JAQ2A Key Technical Attributes
22 pF Capacitance, 50V Voltage Rated, ±5% Tolerance
04025A220JAQ2A Packing Size
Type: Tape & Reel (TR), Material: Ceramic, Size: 0.039" L x 0.020" W (1.00mm x 0.50mm), Pin Configuration: Surface Mount, MLCC, Thermal Characteristics: Operating Temperature -55°C ~ 125°C, Electrical Properties: C0G, NP0
04025A220JAQ2A Application
General Purpose
04025A220JAQ2A Features
The 04025A220JAQ2A from AVX (KYOCERA AVX) is a high-quality ceramic capacitor with a capacitance value of 22 picofarads and a rated voltage of 50V. This capacitor is designed for surface mounting using the MLCC (Multi-Layer Ceramic Capacitor) technology and is encased in a small 0402 (1005 metric) package. With a tight tolerance of ±5%, it ensures reliability and stability in circuit functionality. Its temperature coefficient, C0G or NP0, signifies negligible changes in capacitance with temperature variations, making it suitable for applications requiring high stability and low losses.
04025A220JAQ2A Quality and Safety Features
The ceramic capacitor is manufactured to comply with rigorous quality and safety standards, ensuring high performance and durability under varying environmental conditions. Its compliance with RoHS guidelines highlights its safety for use in electronic equipment.
04025A220JAQ2A Compatibility
This component, with the package/case of 0402 (1005 metric), can be implemented in various general-purpose applications, making it compatible with a wide range of electronic devices and circuit boards designed for a 50V capacitor with such footprint considerations.
04025A220JAQ2A Datasheet PDF
Our website offers the most authoritative datasheet for the 04025A220JAQ2A from AVX. Customers are encouraged to review and download the datasheet directly from the current product page to ensure they obtain complete and accurate technical details.
