Home > Products > Integrated Circuits (ICs) > Linear - Video Processing > ADV7611BSWZ-P

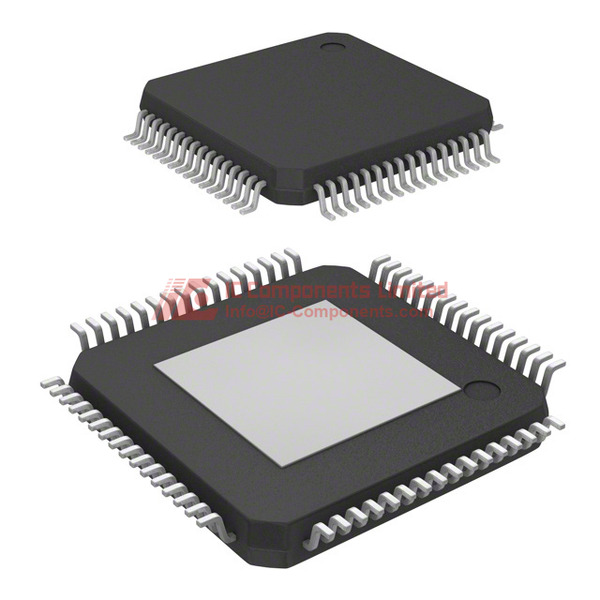

STA321.jpg ImageView larger image
Image may be representation.
See specs for product details.

ADV7611BSWZ-P

In Stock 64942 pcs Reference Price(In US Dollars)
1+
$4.0321
Manufacturer Part Number:
ADV7611BSWZ-P
Manufacturer / Brand
ADI (Analog Devices, Inc.)
Part of Description:
IC RCVR HDMI 165MHZ LP 64LQFP
Datasheets:
ADV7611BSWZ-P.pdf
Lead Free Status / RoHS Status:
Lead free / RoHS Compliant
Stock Condition:
New original, 64942 pcs Stock Available.
ECAD Model:
Ship From:
Hong Kong
Shipment Way:
DHL/Fedex/TNT/UPS

Inquiry Online

Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Info@IC-Components.com
Part Number
Manufacturer
Require Quantity
Target Price(USD)
Company Name
Contact Name
E-mail
Phone
Message
Please enter Verify Code and click "Submit"
Part Number ADV7611BSWZ-P
Manufacturer / Brand ADI (Analog Devices, Inc.)
Stock Quantity 64942 pcs Stock
Category Integrated Circuits (ICs) > Linear - Video Processing
Description IC RCVR HDMI 165MHZ LP 64LQFP
Lead Free Status / RoHS Status: Lead free / RoHS Compliant
RFQ ADV7611BSWZ-P Datasheets ADV7611BSWZ-P Details PDF
ADV7611BSWZ-P Details PDF for FR.pdf
ADV7611BSWZ-P Details PDF for KR.pdf
ADV7611BSWZ-P Details PDF for ES.pdf
ADV7611BSWZ-P Details PDF for IT.pdf
ADV7611BSWZ-P Details PDF for DE.pdf
Type HDMI, Receiver
Supplier Device Package 64-LQFP-EP (10x10)
Standard Package 1
Series Advantiv®
Part Status Active
Packaging Tray
Package / Case 64-LQFP Exposed Pad
Other Names ADV7611BSWZP
Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Manufacturer Standard Lead Time 7 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Base Part Number ADV7611
Applications HDTV, Projectors, Set-Top Boxes

Packaging & ESD

Industry-standard static shielding packaging is used for electronic components.Anti-static, light-transparent materials allow easy identification of ICs and PCB assemblies.
The packaging structure provides electrostatic protection based on Faraday cage principles.This helps protect sensitive components from static discharge during handling and transportation.


All products are packed in ESD-safe anti-static packaging. Outer packaging labels include part number, brand, and quantity for clear identification. Goods are inspected prior to shipment to ensure proper condition and authenticity.

ESD protection is maintained throughout packing, handling, and global transportation. Secure packaging provides reliable sealing and resistance during transit. Additional cushioning materials are applied when required to protect sensitive components.

QC(Part Testing by IC Components)Quality Warranty

We can offer worldwide express delivery service, such as DHLor FedEx or TNT or UPS or other forwarder for shipment.

Global Shipment by DHL/FedEx/TNT/UPS

Shipping Fees reference DHL/FedEx
1). You can offer your express delivery account for shipment, ifyou haven’t any express account for shipment, we can offer our account inadvance.
2). Use our account for shipment, Shipment charges(Reference DHL/FedEx, Different Countries has different price.)
Shipment charges： (Reference DHL and FedEX)
Weight(KG): 0.00kg-1.00kg Price(USD$) : USD$60.00
Weight(KG): 1.00kg-2.00kg Price(USD$) : USD$80.00
* The price of cost is reference with DHL/FedEx. The detail charges, please contact us. Different country the express charges are different.



We accept the payment terms: Telegraphic Transfer(T/T), Credit Card, PayPal and Western Union.

PayPal:

PayPal Bank Information:
Company Name : IC COMPONENTS LTD
Paypal ID: PayPal@IC-Components.com

BANK TRANSFAR (Telegraphic Transfer)

Payment For Telegraphic Transfers:
Company Name : IC COMPONENTS LTD Beneficiary Account Number : 549-100669-701
Beneficiary Bank name : Bank of Communications (Hong Kong) Ltd Beneficiary Bank Code : 382 (for local payment)
Beneficiary Bank SWIFT : COMMHKHK
Beneficiary Bank Address : Tsuen Wan Market Street Branch 53 Market Street, Tsuen Wan N.T., Hong Kong

Any inquires or questions, please kindly contact us Email: Info@IC-Components.com


ADV7611BSWZ-P Product Details:

The ADV7611BSWZ-P is a highly integrated circuit (IC) designed for video processing applications, such as HDTV, projectors, and set-top boxes. Manufactured by Analog Devices, Inc. (ADI), this device belongs to the Advantiv series and is classified as a linear video processing IC.

The ADV7611BSWZ-P is a versatile HDMI receiver that addresses the design challenges of modern digital video systems. It features a comprehensive set of functionalities, including support for HDMI, which enables seamless integration into a wide range of audio-visual (AV) products. The device's small form factor, represented by its 64-LQFP-EP (10x10) package, allows for efficient integration into compact designs.

The key specifications of the ADV7611BSWZ-P include its compliance with the RoHS (Restriction of Hazardous Substances) directive, ensuring environmentally-friendly production and usage. The device's moisture sensitivity level (MSL) is 3, indicating that it can withstand exposure to humidity during the manufacturing process.

The primary advantages of the ADV7611BSWZ-P lie in its ability to handle high-definition video signals, making it an excellent choice for HDTV, projector, and set-top box applications. Its compatibility with the HDMI standard ensures seamless integration into a wide range of digital video systems.

Equivalent or alternative models to the ADV7611BSWZ-P may include the following:

- ADV7611BSWZ (same device without the "-P" suffix)

- ADV7611BSTZ-P (similar device in a smaller 48-LQFP package)

- ADV7611BSVZ-P (similar device with a different package option)

- ADV7611BSWZ-ND (same device with a different Digi-Key part number)

These equivalent models may offer slightly different packaging options or minor variations, but they are generally comparable in terms of functionality and performance.

ADV7611BSWZ-P Image
ADV7611BSWZ-P (1)

ADV7611BSWZ-P Key Technical Attributes

Manufacturer Part Number: ADV7611BSWZ-P

Manufacturer: ADI (Analog Devices, Inc.)

Type: HDMI, Receiver

ADV7611BSWZ-P Packing Size

Package Type: 64-LQFP-EP (10x10)

Packaging Material: Tray

Electrical Properties: Optimized for video signal processing

Thermal Characteristics: Exposed Pad for enhanced thermal dissipation

ADV7611BSWZ-P Application

Designed for use in HDTV, Projectors, Set-Top Boxes

ADV7611BSWZ-P Features

The ADV7611BSWZ-P is a highly integrated HDMI receiver with capabilities for video processing. It supports a variety of video resolutions and formats, making it ideal for high-definition audio and video applications. The device is equipped with an advanced decoder to handle up to 8-channel I2S audio outputs, which can decode Dolby TrueHD and DTS-HD master audio streams. It also includes CEC and HDCP 1.4 compatibility, providing secure content management and device control.

ADV7611BSWZ-P Quality and Safety Features

RoHS Compliant, lead-free to meet environmental standards

Moisture Sensitivity Level (MSL) 3, withstands up to 168 hours in damp conditions

Designed with protection mechanisms for electrostatic discharge

ADV7611BSWZ-P Compatibility

Compatible with HDMI 1.4 interfaces

Mounting Type: Surface Mount, ensures reliable and sturdy placement on PCBs

ADV7611BSWZ-P Datasheet PDF

Our website offers the most authoritative and comprehensive datasheet for the ADV7611BSWZ-P. We recommend downloading the datasheet from the current page to ensure you have the most accurate and detailed product information.

Quality Distributor

IC-Components is a premium distributor for ADI products, providing top-quality components like the ADV7611BSWZ-P. For reliable sourcing and competitive pricing, we encourage customers to get a quote directly from our website. Trust IC-Components for your electronic component needs.

Frequently Asked Questions

What are the critical power supply sequencing requirements for the ADV7611BSWZ-P to avoid latch-up or internal damage during power-up or power-down cycles?
The ADV7611BSWZ-P requires strict adherence to power supply sequencing: the 1.8 V core supply (VDD) must be stable before or simultaneously with the 3.3 V I/O supply (VDDIO). Applying VDDIO before VDD can forward-bias internal ESD protection diodes, leading to latch-up or excessive current draw. A power-good signal from the 1.8 V regulator should gate the 3.3 V supply enable, or use sequencing controllers compliant with the timing margins specified in the ADV7611BSWZ-P datasheet (typically <100 ms skew). Failure to follow this sequence risks permanent damage, especially in hot-plug HDMI scenarios.
Can the ADV7611BSWZ-P be used in industrial environments with extended temperature ranges, and what derating or design changes are necessary?
The ADV7611BSWZ-P is rated for commercial temperature range (0°C to +70°C), not industrial grade. While it may operate temporarily beyond this range, long-term reliability in industrial environments (e.g., -40°C to +85°C) is not guaranteed. Key risks include timing drift in the HDMI receiver PLL, reduced margin for signal integrity at low temperatures, and increased electromigration in bond wires at high temperatures. For industrial use, consider thermal cycling testing, enhanced PCB thermal management, and validation of HDMI compliance across the full operating envelope. ADI does not recommend the ADV7611BSWZ-P for mission-critical industrial applications without extensive qualification.
What are the key differences between the ADV7611BSWZ-P and the ADV7612 in terms of channel count, power consumption, and design-in complexity for dual-HDMI input systems?
The ADV7611BSWZ-P is a single-input HDMI receiver, while the ADV7612 supports dual HDMI inputs with independent processing paths. In a dual-input design, using two ADV7611BSWZ-P devices increases BOM count, PCB area, and power consumption (~350 mW each vs. ~500 mW total for ADV7612), but offers better thermal distribution and input isolation. The ADV7612 simplifies firmware control with shared configuration registers and reduced I²C traffic. However, the ADV7611BSWZ-P provides more flexibility in layout when inputs are physically separated. Choose the ADV7612 for compact dual-input designs; use dual ADV7611BSWZ-P units when input spacing or redundancy is critical.
How should the exposed pad (EP) on the 64-LQFP-EP package of the ADV7611BSWZ-P be thermally and electrically connected to ensure reliable operation and meet MSL 3 handling requirements?
The exposed pad on the ADV7611BSWZ-P must be soldered directly to a grounded thermal plane on the PCB using a stencil with 50–70% aperture coverage to avoid voiding. This connection serves as the primary thermal path (θJA ≈ 38°C/W with proper grounding) and electrical ground reference. Use multiple thermal vias (≥9, 0.3 mm diameter) under the pad to a bottom-layer ground plane. For MSL 3 compliance, bake the tray-packed components at 125°C for 24 hours if exposed to >30°C/60% RH ambient for more than 168 hours before reflow. Inadequate pad soldering increases junction temperature, degrading HDMI receiver sensitivity and increasing bit error rates.
Is the ADV7611BSWZ-P suitable for replacing the older ADV7610 in an existing HDMI receiver design, and what firmware or hardware modifications are required?
The ADV7611BSWZ-P is a drop-in compatible upgrade to the ADV7610 in most cases, sharing the same pinout, package, and I²C register map. However, the ADV7611BSWZ-P includes enhanced equalization and improved jitter tolerance, which may require recalibration of the input termination resistors (typically 100 Ω differential) and updated EDID handling in firmware. Additionally, the ADV7611BSWZ-P supports deeper color depths (up to 4:4:4 16-bit), so ensure downstream video processors can handle increased data rates. No hardware changes are typically needed, but firmware should be updated to leverage new status flags and error reporting features in the ADV7611BSWZ-P.
What are the limitations of using the ADV7611BSWZ-P in high-resolution, high-refresh-rate applications such as 4K60 4:4:4, and how does it compare to newer HDMI 2.0 receivers?
The ADV7611BSWZ-P supports up to 4K30 4:4:4 or 4K60 4:2:0 via HDMI 1.4b, but cannot handle full 4K60 4:4:4 (which requires 18 Gbps bandwidth and HDMI 2.0). Attempting to use it beyond its specified TMDS clock limit (340 MHz) results in signal dropouts, color subsampling artifacts, or failure to lock. For 4K60 4:4:4 applications, consider the ADV7625 or ADV7632. The ADV7611BSWZ-P remains suitable for 1080p60, 4K30, and broadcast set-top box applications where bandwidth demands are moderate and cost sensitivity is high.
How does the ADV7611BSWZ-P handle hot-plug detect (HPD) signaling, and what external circuitry is needed to ensure reliable HDMI source detection in projector or KVM switch applications?
The ADV7611BSWZ-P provides a configurable HPD output pin that must be driven to the HDMI connector’s HPD line through a level shifter or buffer. The internal HPD logic is controlled via I²C, but the output driver is open-drain and requires a 1 kΩ to 10 kΩ pull-up resistor to 5 V (HDMI specification). In multi-port or KVM applications, use a GPIO expander or analog switch to manage HPD signaling per port. Without proper pull-up and ESD protection (e.g., TVS diodes rated for HDMI), false disconnects or damage from cable insertion transients can occur. The ADV7611BSWZ-P does not include internal HPD voltage translation, so external level shifting is mandatory for 5 V compliance.
What are the recommended decoupling capacitor values and placement strategies for the ADV7611BSWZ-P to minimize noise on the 1.8 V core and 3.3 V I/O supplies in high-speed video environments?
Use a combination of 10 µF (X5R, 0805), 1 µF, and 0.1 µF ceramic capacitors placed as close as possible to each VDD and VDDIO pin pair on the ADV7611BSWZ-P. The 1.8 V core supply is particularly sensitive to high-frequency noise from the internal PLL and TMDS clock recovery circuits. Place the 0.1 µF capacitors within 2 mm of the pins, with short, direct traces to ground. Avoid daisy-chaining ground connections—use a solid ground plane. Inadequate decoupling leads to increased jitter, reduced eye diagram margin, and intermittent HDMI lock failures, especially at higher resolutions.
Can the ADV7611BSWZ-P be used in automotive infotainment systems, and what qualifications or alternative parts should be considered for AEC-Q100 compliance?
The ADV7611BSWZ-P is not AEC-Q100 qualified and lacks automotive-grade reliability testing, making it unsuitable for direct use in automotive infotainment systems. It does not meet requirements for extended temperature operation, thermal cycling, or long-term reliability under vibration and humidity stress. For automotive HDMI reception, consider the ADV7625-A or ADV7632-A, which are AEC-Q100 Grade 2 qualified and support similar functionality. Migrating to an automotive-grade receiver requires redesign of power supply, thermal management, and EMC filtering, but ensures compliance with ISO 16750 and other automotive standards.
