The TDK Corporation C0603C0G1E6R2B is a high-precision ceramic multilayer capacitor (MLCC) designed for versatile electronic applications, offering exceptional performance in compact form factors. This miniature surface-mount capacitor is engineered with remarkable stability and reliability, featuring a low 6.2 pF capacitance and a tight ±0.1 pF tolerance that ensures precise electrical characteristics.
Specifically tailored for general-purpose electronic designs, this capacitor leverages C0G/NP0 temperature coefficient technology, which provides outstanding temperature stability across a wide -55°C to 125°C operating range. Its ultra-compact 0201 (0603 metric) package measures just 0.60mm x 0.30mm, making it ideal for space-constrained electronic assemblies where miniaturization is critical.
The component is rated for 25V and supports surface mount installation, offering engineers a robust solution for noise suppression, signal filtering, and decoupling in various electronic circuits. Its ceramic construction with exceptional dielectric properties ensures consistent performance in demanding environments, from consumer electronics to industrial and automotive applications.
Key advantages include its minimal size, precise capacitance, wide temperature tolerance, and high reliability. The device is packaged in a tape and reel format, facilitating automated assembly processes and ensuring consistent, reliable integration into complex electronic systems.
Equivalent alternative models might include similar MLCC capacitors from manufacturers like Murata, Samsung Electro-Mechanics, and Yageo, offering comparable specifications in the 0201/0603 metric package with C0G/NP0 characteristics.
This capacitor represents a precision electronic component engineered to meet stringent performance requirements across diverse technological applications, providing engineers with a reliable, high-performance solution for sophisticated electronic design challenges.

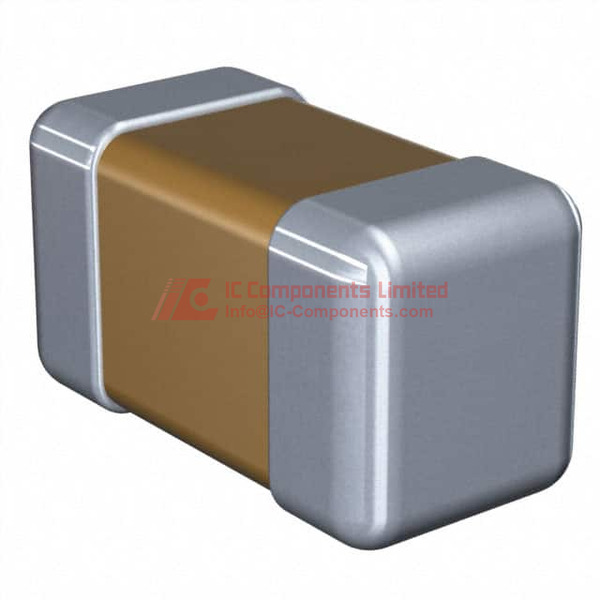

C0603C0G1E6R2B (1)
C0603C0G1E6R2B Key Technical Attributes
Capacitance 6.2 pF
Rated Voltage 25 V
Tolerance ±0.1 pF
C0603C0G1E6R2B Packing Size
Package Type Tape & Reel (TR)
Material Multilayer Ceramic Capacitor (MLCC)
Size 0.024" L x 0.012" W (0.60 mm x 0.30 mm)
Pin Configuration Surface Mount Technology (SMT)
Thermal Characteristics Temperature Coefficient C0G (NP0), Operating Temperature -55°C to 125°C
Electrical Properties Stable capacitance with low loss tangent and negligible voltage dependency
C0603C0G1E6R2B Application
Suitable for general-purpose applications requiring high stability and low loss capacitors such as filtering, timing, and coupling in electronic circuits
C0603C0G1E6R2B Features
This TDK C series capacitor offers excellent temperature stability with a C0G/NP0 dielectric that ensures near-zero capacitance change across the entire operating temperature range. The tight tolerance of ±0.1 pF provides precision in circuit design. Its multilayer ceramic construction allows for high reliability and long service life. The small 0201 package enables high-density mounting suitable for compact electronic devices. The rated voltage of 25V ensures safe operation under typical low voltage conditions. Additionally, the component exhibits low dielectric absorption, excellent insulation resistance, and negligible piezoelectric effects, making it ideal for precision analog and RF applications.
