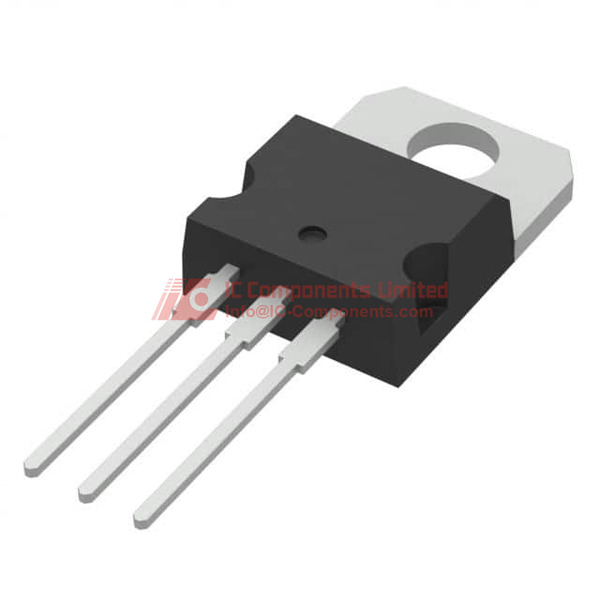

L7908CV-DG

In Stock 25580 pcs Reference Price(In US Dollars)
1+
$0.2087
Manufacturer Part Number:
L7908CV-DG
Manufacturer / Brand
STMicroelectronics
Part of Description:
IC REG LINEAR -8V 1.5A TO220
Datasheets:
L7908CV-DG(1).pdfL7908CV-DG(2).pdfL7908CV-DG(3).pdf
Lead Free Status / RoHS Status:
ROHS3 Compliant
Stock Condition:
New original, 25580 pcs Stock Available.
ECAD Model:
Ship From:
Hong Kong
Shipment Way:
DHL/Fedex/TNT/UPS

Inquiry Online

Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Info@IC-Components.com
Part Number
Manufacturer
Require Quantity
Target Price(USD)
Company Name
Contact Name
E-mail
Phone
Message
Please enter Verify Code and click "Submit"
Part Number L7908CV-DG
Manufacturer / Brand STMicroelectronics
Stock Quantity 25580 pcs Stock
Category Integrated Circuits (ICs) > Power Management (PMIC) - Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Description IC REG LINEAR -8V 1.5A TO220
Lead Free Status / RoHS Status: ROHS3 Compliant
RFQ L7908CV-DG Datasheets L7908CV-DG Details PDF
L7908CV-DG Details PDF for FR.pdf
L7908CV-DG Details PDF for KR.pdf
L7908CV-DG Details PDF for DE.pdf
L7908CV-DG Details PDF for ES.pdf
L7908CV-DG Details PDF for IT.pdf
Voltage Dropout (Max) 1.1V @ 1A (Typ)
Voltage - Output (Min/Fixed) -8V
Voltage - Output (Max) -
Voltage - Input (Max) -35V
Supplier Device Package TO-220
Series -
Protection Features Over Temperature, Short Circuit
Package / Case TO-220-3
Package Tube
PSRR 60dB (120Hz)
Output Type Fixed
Output Configuration Negative
Operating Temperature 0°C ~ 125°C
Number of Regulators 1
Mounting Type Through Hole
Current - Quiescent (Iq) 3 mA
Current - Output 1.5A
Control Features -
Base Product Number L7908
