Home > Products > Integrated Circuits (ICs) > Embedded - Microcontrollers > PIC16F724-I/PT
Microchip Technology

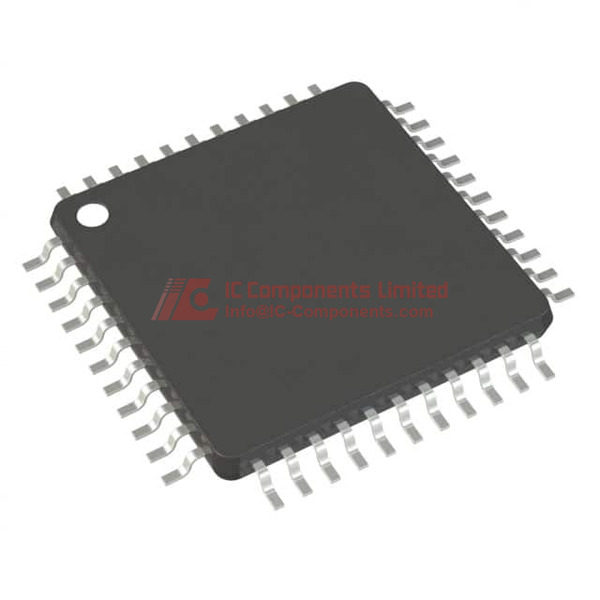

150~C04-076~PT~44.jpg ImageView larger image
Image may be representation.
See specs for product details.

PIC16F724-I/PT

In Stock 3988 pcs Reference Price(In US Dollars)
1+
$24.6673
Manufacturer Part Number:
PIC16F724-I/PT
Manufacturer / Brand
Microchip Technology
Part of Description:
IC MCU 8BIT 7KB FLASH 44TQFP
Datasheets:
PIC16F724-I/PT(1).pdfPIC16F724-I/PT(2).pdfPIC16F724-I/PT(3).pdfPIC16F724-I/PT(4).pdfPIC16F724-I/PT(5).pdfPIC16F724-I/PT(6).pdfPIC16F724-I/PT(7).pdfPIC16F724-I/PT(8).pdf
Lead Free Status / RoHS Status:
ROHS3 Compliant
Stock Condition:
New original, 3988 pcs Stock Available.
ECAD Model:
Ship From:
Hong Kong
Shipment Way:
DHL/Fedex/TNT/UPS

Inquiry Online

Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Info@IC-Components.com
Part Number
Manufacturer
Require Quantity
Target Price(USD)
Company Name
Contact Name
E-mail
Phone
Message
Please enter Verify Code and click "Submit"
Part Number PIC16F724-I/PT
Manufacturer / Brand Microchip Technology
Stock Quantity 3988 pcs Stock
Category Integrated Circuits (ICs) > Embedded - Microcontrollers
Description IC MCU 8BIT 7KB FLASH 44TQFP
Lead Free Status / RoHS Status: ROHS3 Compliant
RFQ PIC16F724-I/PT Datasheets PIC16F724-I/PT Details PDF
PIC16F724-I/PT Details PDF for KR.pdf
PIC16F724-I/PT Details PDF for IT.pdf
PIC16F724-I/PT Details PDF for ES.pdf
PIC16F724-I/PT Details PDF for DE.pdf
PIC16F724-I/PT Details PDF for FR.pdf
Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
Supplier Device Package 44-TQFP (10x10)
Speed 20MHz
Series PIC® XLP™ 16F
RAM Size 192 x 8
Program Memory Type FLASH
Program Memory Size 7KB (4K x 14)
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Package / Case 44-TQFP
Package Tray
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Number of I/O 36
Mounting Type Surface Mount
EEPROM Size -
Data Converters A/D 14x8b
Core Size 8-Bit
Core Processor PIC
Connectivity I²C, SPI, UART/USART
Base Product Number PIC16F724
