The LAN8720A from Micrel/Microchip Technology is a sophisticated Ethernet physical layer (PHY) transceiver designed for high-performance network connectivity solutions. This integrated circuit provides robust and efficient network interface capabilities, specifically engineered for implementing reliable Ethernet communications across various embedded systems and networking applications.
The transceiver supports full-duplex operation and utilizes the Reduced Media Independent Interface (RMII) protocol, enabling seamless and efficient data transmission between network controllers and physical media. With a flexible supply voltage range of 1.6V to 3.6V, the device offers broad compatibility with different system architectures and power management requirements.
Engineered for industrial and commercial applications, the LAN8720A features a compact 24-pin SQFN (4x4) surface-mount package, making it ideal for space-constrained design environments. Its robust thermal performance is demonstrated by an operating temperature range of 0°C to 85°C, ensuring reliable functionality in diverse environmental conditions.
Key advantages include low power consumption, high-speed data transmission capabilities, and compliance with RoHS3 environmental standards. The transceiver provides two dedicated drivers and receivers, facilitating efficient bidirectional communication and network integration.
Potential application areas encompass industrial automation, telecommunications equipment, networking infrastructure, embedded systems, consumer electronics, and IoT devices requiring reliable Ethernet connectivity. The device is particularly suitable for designs demanding compact, energy-efficient network interface solutions.
Alternative or equivalent models in the market include the DP83848, KSZ8081, and RTL8201F transceivers, which offer similar Ethernet PHY functionalities with variations in specific performance characteristics and package configurations.
The LAN8720A represents a versatile, compact, and reliable solution for implementing robust network interfaces across a wide range of electronic systems and applications.
LAN8720A-CP-TR-ABC Key Technical Attributes
Manufacturer Part Number: LAN8720A-CP-TR-ABC
Package / Case: 24-SQFN (4x4)
Voltage Supply Range: 1.6V ~ 3.6V
LAN8720A-CP-TR-ABC Packing Size

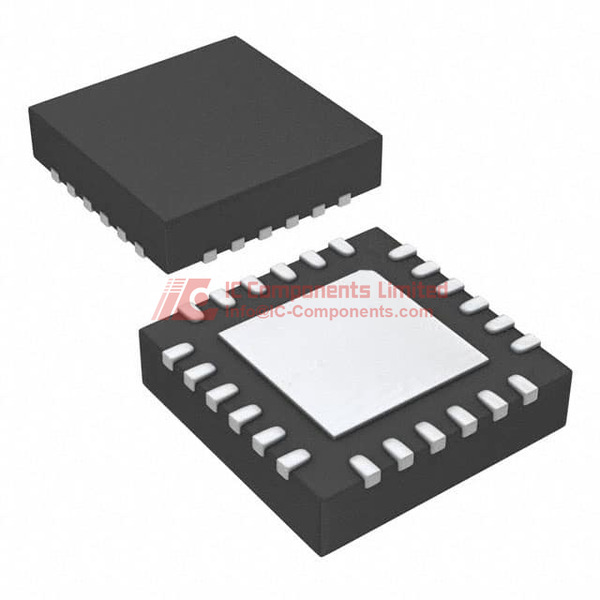

This product features a compact 24-SQFN (4x4 mm) surface mount package, ideal for space-constrained applications. The package offers an exposed pad to enhance thermal dissipation. It is supplied in Tape & Reel format, making it suitable for automated assembly processes in high-volume manufacturing. The pin configuration ensures reliable connectivity in interface designs, while the use of RoHS3 compliant, environmentally safe materials further adds to its suitability for modern electronics.
LAN8720A-CP-TR-ABC Application
Designed for use in Ethernet transceiver applications, the LAN8720A-CP-TR-ABC is an optimal solution for interfacing microcontrollers or processors with physical Ethernet layers via RMII (Reduced Media Independent Interface) protocol. It is widely deployed in industrial automation, consumer electronics, home networking equipment, and IoT devices requiring compact and efficient Ethernet PHY solutions.
LAN8720A-CP-TR-ABC Features
The LAN8720A-CP-TR-ABC provides full duplex capability, supporting simultaneous transmit and receive operations for robust network performance. It integrates advanced signal integrity techniques to minimize electromagnetic interference, and supports auto-negotiation for speed and duplex modes, simplifying network integration. The IC supports 10/100 Mbps Ethernet connectivity via RMII, reducing I/O requirements and lowering overall system complexity. The device operates within a temperature range of 0°C to 85°C, ensuring reliability in most environments. The transceiver architecture is optimized for low-power consumption, contributing to overall energy efficiency in end applications. Internal protection mechanisms, including surge protection and ESD robustness, are built-in to safeguard against common electrical hazards.
LAN8720A-CP-TR-ABC Quality and Safety Features
The LAN8720A-CP-TR-ABC complies with the latest RoHS3 standards, guaranteeing the absence of hazardous substances in its construction. The design incorporates multiple safety features, such as thermal shutdown and overload protection, which preserve device integrity during adverse operating conditions. Certification and quality controls meet industry requirements to assure high reliability and safety in mission-critical applications.
LAN8720A-CP-TR-ABC Compatibility
Fully compliant with RMII protocol standards, this IC offers seamless compatibility with a wide range of microcontrollers and processors. It is broadly supported across development environments in both industrial and consumer settings. The 24-SQFN package is widely accepted in modern PCB layouts, ensuring straightforward integration into new and existing designs.
LAN8720A-CP-TR-ABC Datasheet PDF
We encourage customers to access our website for the most authoritative and up-to-date datasheet for the LAN8720A-CP-TR-ABC. Downloading the datasheet on the current product page ensures you receive comprehensive information, including electrical characteristics, usage recommendations, detailed pin diagrams, and application notes which support accurate and reliable implementation of the device.
