Home > Products > Integrated Circuits (ICs) > Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps > MAX40100ANT+T

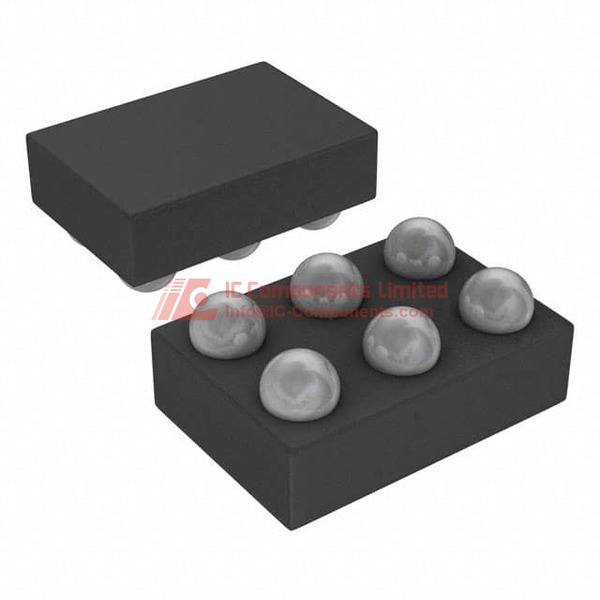

6-WLP 21-0463.jpg ImageView larger image
Image may be representation.
See specs for product details.

MAX40100ANT+T

In Stock 35400 pcs Reference Price(In US Dollars)
1+
$0.4274
Manufacturer Part Number:
MAX40100ANT+T
Manufacturer / Brand
Analog Devices Inc./Maxim Integrated
Part of Description:
IC OPAMP ZERO-DRIFT 1 CIRC 6WLP
Datasheets:
MAX40100ANT+T(1).pdfMAX40100ANT+T(2).pdfMAX40100ANT+T(3).pdfMAX40100ANT+T(4).pdfMAX40100ANT+T(5).pdf
Lead Free Status / RoHS Status:
ROHS3 Compliant
Stock Condition:
New original, 35400 pcs Stock Available.
ECAD Model:
Ship From:
Hong Kong
Shipment Way:
DHL/Fedex/TNT/UPS

Inquiry Online

Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Info@IC-Components.com
Part Number
Manufacturer
Require Quantity
Target Price(USD)
Company Name
Contact Name
E-mail
Phone
Message
Please enter Verify Code and click "Submit"
Part Number MAX40100ANT+T
Manufacturer / Brand Analog Devices Inc./Maxim Integrated
Stock Quantity 35400 pcs Stock
Category Integrated Circuits (ICs) > Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP ZERO-DRIFT 1 CIRC 6WLP
Lead Free Status / RoHS Status: ROHS3 Compliant
Voltage - Supply Span (Min) 1.6 V
Voltage - Supply Span (Max) 5.5 V
Supplier Device Package 6-WLP (1.08x0.73)
Slew Rate 0.7V/µs
Series -
Package / Case 6-XFBGA, WLPBGA
Package Tape & Reel (TR)
Output Type Rail-to-Rail
Operating Temperature -40°C ~ 125°C
Number of Circuits 1
Mounting Type Surface Mount
Gain Bandwidth Product 1.5 MHz
Current - Supply 66µA
Current - Input Bias 80 pA
Base Product Number MAX40100
Amplifier Type Zero-Drift

Packaging & ESD
