The MAX40658ETA+ is a high-performance transimpedance amplifier integrated circuit manufactured by Analog Devices/Maxim Integrated, designed specifically for converting current signals to voltage outputs in precision measurement and optical communication applications. This single-circuit amplifier belongs to the linear amplifiers category within instrumentation, operational amplifiers, and buffer amplifiers, offering exceptional signal conditioning capabilities for photodiode and other current-source applications.
The device addresses critical design challenges in high-speed optical receivers and precision current measurement systems where maintaining signal integrity while achieving wide bandwidth performance is essential. Traditional amplifier solutions often struggle with the trade-off between gain, bandwidth, and noise performance when interfacing with photodiodes or other current sources, but this transimpedance amplifier provides an optimized solution that maintains excellent signal fidelity across a broad frequency range.
Key specifications include an impressive 520 MHz gain bandwidth product that enables high-frequency signal processing, while operating from a single 3.3V supply with 21mA current consumption for efficient power management. The amplifier features differential output architecture that provides superior common-mode noise rejection and improved signal integrity in noisy environments. The device operates reliably across an industrial temperature range of -40°C to 85°C, making it suitable for demanding environmental conditions.
The compact 8-TDFN (3x3mm) surface-mount package with exposed pad provides excellent thermal performance and minimal parasitic effects, crucial for high-frequency applications. This small form factor enables dense board layouts while maintaining optimal electrical performance. The package is RoHS3 compliant, meeting current environmental regulations for lead-free manufacturing.
Primary advantages include exceptional bandwidth performance that supports high-data-rate optical communication systems, low noise characteristics essential for precision measurements, and the differential output configuration that enhances system-level noise immunity. The single 3.3V supply operation simplifies power supply design and reduces overall system complexity, while the wide operating temperature range ensures reliable performance across various application environments.
The amplifier demonstrates broad compatibility with standard photodiodes, avalanche photodiodes, and other current-output sensors commonly used in optical receivers, medical instrumentation, and industrial measurement systems. Its differential output interface readily connects to modern analog-to-digital converters and subsequent signal processing stages without requiring additional level-shifting circuitry.
Application areas encompass high-speed fiber optic communication receivers where maintaining signal integrity at multi-gigabit data rates is critical, precision optical measurement instruments requiring low-noise current-to-voltage conversion, medical diagnostic equipment utilizing optical sensors, industrial automation systems with photodiode-based sensing, and scientific instrumentation demanding high-bandwidth current measurement capabilities. The device also finds application in lidar systems, optical time-domain reflectometry equipment, and high-resolution spectroscopy instruments.
Regarding equivalent models, the MAX40658 family may include variants with different package options or slight specification differences, though the specific alternatives would depend on the exact performance requirements. Similar transimpedance amplifiers from other manufacturers include the Texas Instruments OPA380 series, which offers comparable bandwidth and current-to-voltage conversion capabilities, and the Analog Devices ADA4817 family that provides high-speed amplification suitable for optical receiver applications. Broadcom's AFBR series and Maxim's other transimpedance amplifiers like the MAX3665 and MAX3266 could serve as alternatives depending on specific bandwidth, gain, and package requirements. When selecting equivalent models, designers should carefully compare gain bandwidth product, input current noise, supply voltage requirements, and package thermal characteristics to ensure optimal performance in their specific application.
MAX40658ETA+ (1)
MAX40658ETA+ Key Technical Attributes
The MAX40658ETA+ is a high-performance transimpedance amplifier (TIA) designed to convert input current to output voltage with exceptional accuracy and bandwidth. Operating from a single 3.3V supply, this device provides a differential output and is optimized for low noise and high gain bandwidth, making it suitable for precise signal amplification in instrumentation and measurement systems. With a gain bandwidth product of 520 MHz, the amplifier can handle fast-changing signals, ensuring high-fidelity data transmission.
MAX40658ETA+ Packing Size

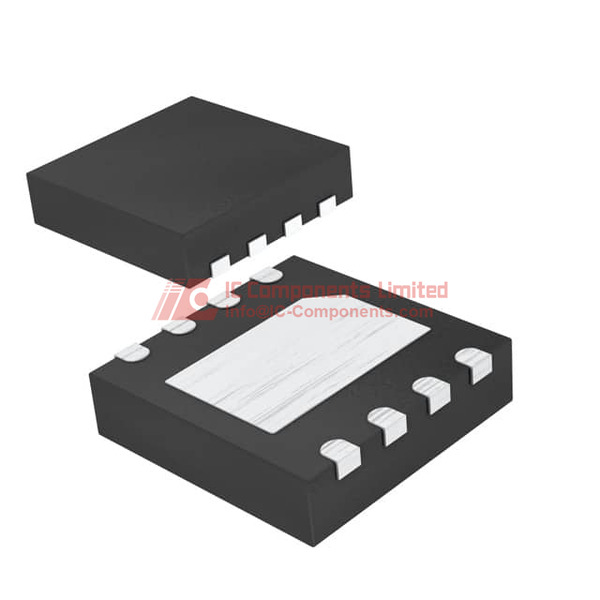

This product features an 8-TDFN (3x3 mm) surface-mount package with an exposed pad that enhances thermal dissipation. The compact, lead-free ROHS3-compliant TDFN (Thin Dual Flat No-lead) package supports high-density PCB designs and offers excellent mechanical stability. The pin configuration facilitates straightforward routing for differential output and supply connections, and the exposed pad should be soldered to the PCB ground plane for optimal thermal and electrical performance. The tube packaging format allows for safe and efficient handling during automated assembly.
MAX40658ETA+ Application
MAX40658ETA+ is ideally suited for high-speed optical receivers, LiDAR and photodiode signal amplification, industrial process controls, and other applications where low noise and high-speed current-to-voltage conversion is necessary. Its single-channel design supports integration into multi-channel data acquisition systems and precision medical or scientific instruments requiring accurate analog front-ends.
MAX40658ETA+ Features
The product integrates a high-speed, low-noise architecture, supporting a 520 MHz gain bandwidth that enables accurate amplification of nanosecond-scale current pulses. The differential output reduces susceptibility to external noise and supports longer signal transmission distances with minimal degradation. With a consistent supply voltage of 3.3V and 21mA supply current, MAX40658ETA+ ensures stable operation across an extended temperature range (-40°C to 85°C), and the ROHS3 compliance guarantees environmental safety. The package’s exposed pad not only aids in heat dissipation but also improves grounding and noise immunity. The product supports a variety of power and signal integrity requirements commonly found in advanced sensor and data acquisition designs.
MAX40658ETA+ Quality and Safety Features
MAX40658ETA+ is built in accordance with the latest environmental and electrical safety standards as evidenced by its RoHS3 compliance, ensuring it is free from hazardous substances. The device’s robust design offers protection against over-temperature scenarios when the exposed pad is used properly for heat dissipation. The precise and reliable electrical characteristics are backed by acclaimed Analog Devices / Maxim Integrated quality control, ensuring low drift, high linearity, and long operating life.
MAX40658ETA+ Compatibility
This amplifier is compatible with a wide range of analog and mixed-signal processing systems that require high-speed, low-noise transimpedance amplification. It is particularly suitable for modern industrial, medical, and communication platforms where board space and precision signal processing are priorities. The 8-TDFN footprint matches many standard surface-mount layouts and is easily handled by modern automated pick-and-place machines.
MAX40658ETA+ Datasheet PDF
For the most comprehensive and up-to-date technical information, performance graphs, and application guidelines on the MAX40658ETA+, customers are strongly encouraged to download the authoritative datasheet PDF available directly on our website. This document is your best source for in-depth insights into device operation, recommended layouts, and application circuits.
Quality Distributor
IC-Components proudly serves as a premium distributor of Analog Devices / Maxim Integrated products, including the MAX40658ETA+. When you purchase from us, you are assured top-tier quality, genuine inventory, and expert support. We invite customers to request a quote on our website today and experience our industry-leading service and pricing for yourself.
