The LP2951ACMM-3.3 is a linear voltage regulator integrated circuit (IC) manufactured by Luminary Micro/Texas Instruments. As a member of the PMIC (Power Management Integrated Circuit) - Voltage Regulators - Linear category, this product is designed to provide a fixed 3.3V output voltage or an adjustable output voltage ranging from 1.24V to 29V, with a maximum output current of 100mA.
One of the key features of the LP2951ACMM-3.3 is its robust protection mechanisms, including overcurrent, overtemperature, and short-circuit protection, ensuring reliable and safe operation. The device is housed in an 8-VSSOP (Very-Thin Shrink Small Outline Package) package, making it suitable for space-constrained applications.
The LP2951ACMM-3.3 operates within a wide temperature range of -40°C to 125°C, making it suitable for a variety of environments. It has a low quiescent current of 120μA and a maximum voltage dropout of 0.6V at 100mA, contributing to efficient power management and minimizing energy waste.
This voltage regulator IC is primarily used in applications that require a stable and reliable power supply, such as portable electronics, industrial equipment, and automotive systems. It is designed to be easily integrated into surface-mount circuit boards, providing a convenient and space-saving solution for power management.
While the LP2951ACMM-3.3 is the specific model number, there are several equivalent or alternative models available from Texas Instruments that offer similar functionalities and specifications. These include the LP2951ACM-3.3, LP2951ACM-5.0, and LP2951ACM-ADJ, among others. These variants may differ in output voltage, package, or specific features, allowing designers to choose the most suitable option for their application requirements.

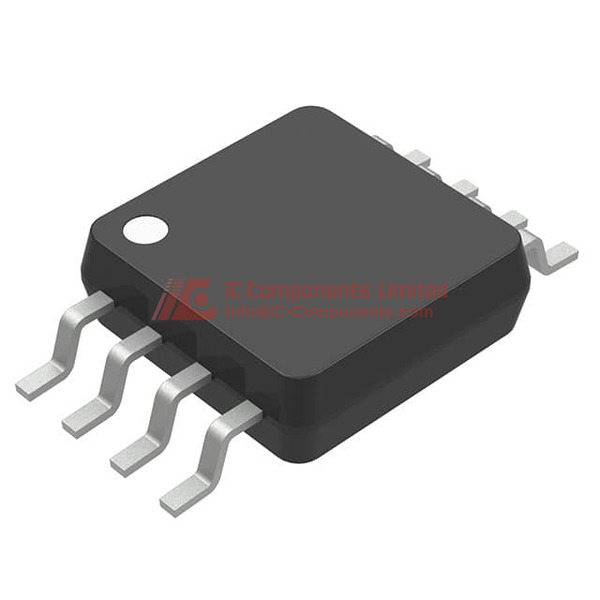

LP2951ACMM-3.3 (1)
LP2951ACMM-3.3 Key Technical Attributes
Manufacturer Part Number: LP2951ACMM-3.3
Manufacturer: Luminary Micro / Texas Instruments
Main Category: Integrated Circuits (ICs)
Small Classification: PMIC - Voltage Regulators - Linear
LP2951ACMM-3.3 Packing Size
Package Type: 8-VSSOP
Material: MSOP-8
Size: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Configuration: Tape & Reel (TR)
LP2951ACMM-3.3 Application
Ideal for usage in electronics requiring voltage regulation, compatible across various applications due to its thermal and electrical characteristics.
LP2951ACMM-3.3 Features
The LP2951ACMM-3.3 offers a linear voltage regulation, ensuring a steady voltage output of either a fixed 3.3V or an adjustable range between 1.24V to 29V with a current capability of 100mA. It has a low dropout voltage of 0.6V at 100mA load, which benefits its efficiency. The device supports an operating temperature range from -40°C to 125°C, making it suitable for harsh environments.
LP2951ACMM-3.3 Quality and Safety Features
This IC incorporates protection against overcurrent, overheating, and short circuits to enhance reliability and safety in operations. It also features a Moisture Sensitivity Level (MSL) of 1, indicating it can handle exposure to unlimited moisture during the manufacturing phase.
LP2951ACMM-3.3 Compatibility
The LP2951ACMM-3.3 is designed for surface mounting and is compliant with the 8-VSSOP physical footprint and electrical specifications. It is suitable for electronic applications needing accurate voltage regulation.
LP2951ACMM-3.3 Datasheet PDF
Our website provides the most authoritative datasheet for the Luminary Micro / Texas Instruments LP2951ACMM-3.3. For detailed, accurate information and technical drawings, it is recommended to download this datasheet directly from our product page.
