The CM1406-08DE is a sophisticated RC (Pi) filter designed by AMI Semiconductor/onsemi, specifically engineered for high-performance electromagnetic interference (EMI) suppression in mobile device data lines. This advanced discrete semiconductor device offers comprehensive signal integrity protection through its innovative 2nd-order low-pass filter topology.
Primarily targeting mobile communication and data transmission applications, the filter provides exceptional electromagnetic compatibility by delivering 30dB attenuation across the 800MHz to 3GHz frequency range. Its compact 16-WFDFN exposed pad package, measuring just 0.157" x 0.063" (4.00mm x 1.60mm), enables seamless integration into space-constrained electronic designs.
The filter features eight independent channels with consistent electrical characteristics, including a 200-ohm resistance and 15pF capacitance. Its robust design supports reliable operation across a wide temperature range from -40°C to 85°C, making it suitable for demanding electronic environments. Built-in electrostatic discharge (ESD) protection enhances the device's durability and performance reliability.
Key advantages include its surface-mount configuration, minimal footprint, high-frequency noise suppression, and comprehensive ESD protection. The filter's center/cutoff frequency of 105MHz ensures effective signal conditioning while maintaining signal integrity in complex electronic systems.
Alternative or equivalent models might include similar RC filters from manufacturers like Murata, TDK, and Würth Elektronik, though the specific CM1406 series offers unique characteristics that set it apart in precision and performance.
Ideal applications encompass mobile devices, telecommunications equipment, wireless communication systems, and other high-frequency electronic platforms requiring advanced signal filtering and electromagnetic interference mitigation.
CM1406-08DE Key Technical Attributes
RC (Pi) filter
2nd order, 8 channels
200 Ohms, 15pF, cutoff frequency 105MHz
CM1406-08DE Packing Size

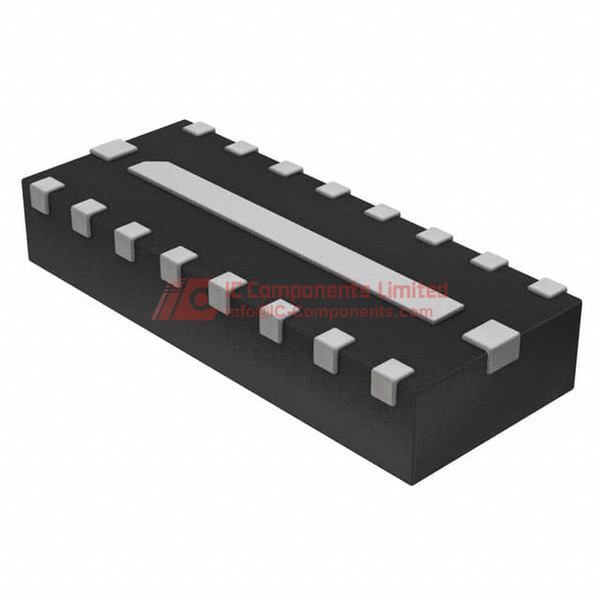

The CM1406-08DE is delivered in Tape & Reel (TR) packaging, offering efficient automated assembly and handling for high-volume manufacturing. The device utilizes a compact 16-WFDFN Exposed Pad package, with physical dimensions measuring 0.157 inches (4.00mm) in length and 0.063 inches (1.60mm) in width, and a height of 0.031 inches (0.79mm). Surface mount technology allows for streamlined PCB placement. Internal pin configuration supports eight independent filter channels, each with an RC configuration, and the low-profile design promotes excellent space-saving for densely populated designs. The device features robust thermal management capabilities through the exposed pad, which enhances heat dissipation and supports stable operation within an extended -40°C to 85°C temperature range. Electrical properties include 200Ω channel resistance, 15pF capacitance, and a typical attenuation value of 30dB within the 800MHz to 3GHz frequency band.
CM1406-08DE Application
The CM1406-08DE is specifically tailored for protecting data lines in mobile devices such as smartphones, tablets, or wearable electronics. Its advanced filtering and ESD suppression capabilities make it a fundamental choice for high-speed signal integrity and safeguarding sensitive integrated circuits from transient threats. The RC (Pi) low-pass filter topology effectively removes radio frequency interference and noise, ensuring reliable communication performance in complex, multi-signal environments.
CM1406-08DE Features
This device integrates second-order RC filtering (Pi configuration) across eight channels into a single, miniature SMD package. Each channel combines 200Ω resistance with 15pF capacitance to form a highly effective low-pass filter, with a cutoff frequency precisely targeted at 105MHz. The attenuation characteristic reaches 30dB in the 800MHz to 3GHz range, substantially suppressing unwanted high-frequency signals, enhancing system EMC/EMI immunity. Fully compliant with ESD protection standards, the product prevents electrostatic discharges from reaching vulnerable system components. The exposed pad design ensures enhanced thermal dissipation, supporting reliable long-term operation under demanding temperature conditions, while the compact WFDFN package saves valuable PCB real estate. The unit is entirely surface mount compatible, facilitating efficient automated assembly and allowing for easy integration into modern electronic designs. Its part numbering also allows for rapid identification and clear traceability in logistics and production.
CM1406-08DE Quality and Safety Features
The CM1406-08DE meets stringent quality standards, including robust ESD protection integrated into each filter channel to ensure the safety of downstream circuits. The component maintains stable RC characteristics across its full operating temperature, providing consistent filtering and protection even in harsh or variable environments. Its SMD construction enhances mechanical reliability by reducing susceptibility to stress and vibration. Compliance with widely recognized RoHS directives, lead-free materials, and halogen-free composition ensure the component is environmentally responsible while meeting global quality expectations.
CM1406-08DE Compatibility
Engineered for broad compatibility, the CM1406-08DE can be seamlessly used in electronic systems employing high-speed data lines, especially those following industry-standard package footprints. Its 16-WFDFN Exposed Pad package and standard surface-mount profile are widely supported by contemporary PCB assembly processes, making it ideal for integration into mobile, IoT, consumer, automotive, and industrial electronics requiring RC filter arrays and ESD protection in tight spaces.
CM1406-08DE Datasheet PDF
For comprehensive technical details, performance graphs, recommended application circuits, and authoritative design information, please download the official datasheet directly from our website. Our platform ensures you are accessing the latest and most accurate documentation for the CM1406-08DE—use the download link on this page for your reference and design assurance.
