The ADL5590ACPZ-R7 is a sophisticated RF modulator developed by Analog Devices, designed for high-performance wireless communication applications in the 869MHz-960MHz frequency range. This advanced signal relay device offers exceptional signal processing capabilities, making it ideal for telecommunications, wireless networking, and RF signal transmission systems.
The modulator features a compact 36-LFCSP-VQ (6x5.75) package, engineered for surface mount applications, which provides excellent space efficiency and thermal management. With a supply voltage range of 4.75V to 5.25V and a modest current consumption of 170 mA, the device delivers robust performance while maintaining energy efficiency.
Key performance specifications include a P1dB (compression point) of 16dBm, an output power of 5.7dBm, and an impressively low noise floor of -156.6dBm/Hz. These characteristics ensure high-quality signal transmission with minimal distortion and interference, making it suitable for sophisticated RF communication infrastructure.
The modulator is particularly well-suited for applications requiring precise signal modulation in the UHF band, including cellular communication systems, wireless sensor networks, and advanced telemetry equipment. Its design addresses critical challenges in RF signal processing, such as maintaining signal integrity and minimizing noise across complex communication environments.
Compatibility and versatility are enhanced by its standardized packaging and robust electrical characteristics, allowing seamless integration into various wireless communication platforms. The device's RoHS compliance further underscores its commitment to environmental sustainability and modern electronics manufacturing standards.
While direct equivalent models are not explicitly listed, similar RF modulators from Analog Devices in the ADL series or comparable offerings from manufacturers like Qorvo, Skyworks, and Maxim Integrated may provide alternative solutions for comparable RF signal processing requirements.
ADL5590ACPZ-R7 Key Technical Attributes
Manufacturer Part Number ADL5590ACPZ-R7
RF Frequency Range 869MHz to 960MHz
Output Power 5.7 dBm
P1dB Compression Point 16 dBm
Supply Voltage 4.75V to 5.25V
Supply Current 170 mA
Noise Floor -156.6 dBm/Hz
Test Frequency 940 MHz
Function RF Modulator
ADL5590ACPZ-R7 Packing Size

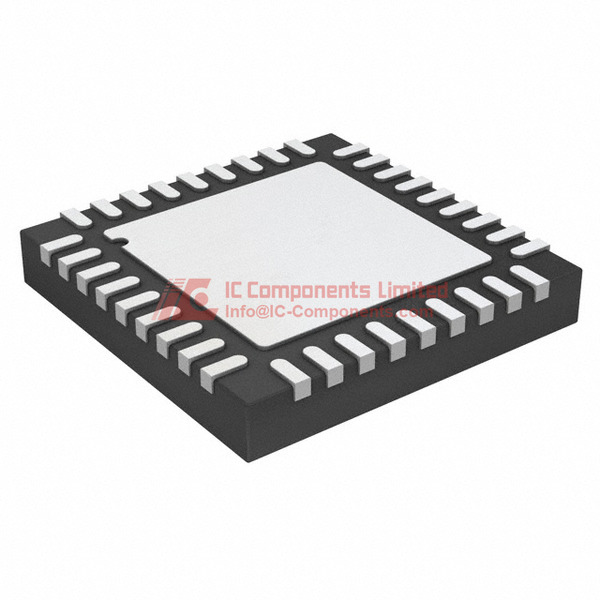

Package Type 36-VFQFN Exposed Pad, Chip Scale Package (CSP)
Package Dimensions 6 mm x 5.75 mm
Pin Configuration 36 pins, Lead Frame Chip Scale Package in 36-LFCSP-VQ format
Mounting Type Surface Mount Technology (SMT)
Packaging Method Tape and Reel (TR) for automated assembly
Material Construction Molded plastic encapsulation with exposed thermal pad for heat dissipation
Thermal Characteristics Enhanced heat dissipation via exposed pad design suitable for high-frequency operation
Electrical Properties Designed for low noise, high linearity and stable operation in RF signal modulation
ADL5590ACPZ-R7 Application
Optimized for use in RF communication systems operating within 869 MHz to 960 MHz bands
Commonly employed in wireless infrastructure, two-way radios, and IoT devices
Ideal for signal modulation in narrowband RF transmitters and receivers
Used for LTE, GSM, and other wireless communication standards that require precise RF modulation
Suitable for integration in compact, surface-mounted designs requiring reliable modulator function
ADL5590ACPZ-R7 Features
High linearity with a P1dB compression point of 16 dBm ensures minimal signal distortion under high power levels
Low noise floor of -156.6 dBm/Hz enhances signal clarity and reduces interference in sensitive RF applications
Wide supply voltage range of 4.75V to 5.25V supports robust operation across varied power environments
Compact 36-VFQFN exposed pad package minimizes board space, improves thermal performance and supports surface mounting
Efficient power consumption with a supply current of 170 mA facilitating energy-efficient circuit design
High output power capability at 5.7 dBm supports stronger signal transmission and improved coverage
Tape and reel packaging streamlines high-volume automated manufacturing and assembly processes
Robust electrical characteristics enable stable performance at test frequency 940 MHz with consistent modulation quality
ADL5590ACPZ-R7 Quality and Safety Features
Manufactured by Analog Devices, Inc., a world-leading semiconductor company with rigorous quality controls
RoHS compliant ensuring environment-friendly design and adherence to hazardous substance regulations
Encapsulation designed to protect the die from mechanical stress, moisture, and contaminants
Thermal design inclusive of an exposed pad ensures efficient heat dissipation, preventing overheating and extending device lifetime
Product undergoes stringent electrical and environmental testing to meet industry standards and reliability requirements
Reliable surface mount packaging minimizes solder joint failure and enhances mechanical stability during operation
ADL5590ACPZ-R7 Compatibility
Compatible with standard surface mount PCB assembly processes and industry-standard soldering profiles
Designed for seamless integration into RF front-end modules and communication systems within its specified frequency range
Interoperable with common wireless standards such as GSM, LTE, and proprietary narrowband RF solutions using similar supply voltages and interface configurations
Pin configuration and package provide direct replacement capability for similar 36-pin LF-CSP devices in legacy or new applications
ADL5590ACPZ-R7 Datasheet PDF
For the most authoritative and comprehensive technical information, please visit our website to download the latest datasheet PDF for the ADL5590ACPZ-R7. This datasheet includes detailed electrical characteristics, application guidelines, pin configurations, and evaluation board information that will assist in precise product implementation. We highly recommend customers access the datasheet provided on the current webpage to ensure the use of up-to-date and accurate technical data.
