The PSS20S92F6-AG PSS20S92F6-AG Powerex Inc. MOD IPM 6-PAC 20A 600V DIP In Stock: 2156 pcs from Mitsubishi is a powerful device designed to manage electricity in complex machines. It's built to handle high energy needs and comes packed with safety features to prevent damage. This article will explain why this device is ideal for tough jobs in industries like energy and manufacturing, showing how it works.

Catalog

1. PSS20S92F6-AG Overview

2. Integrated Drive & Protection Functions

3. Internal Circuit of PSS20S92F6-AG

4. Example of Application Circuit of PSS20S92F6-AG

5. PSS20S92F6-AG Technical Details

6. PSS20S92F6-AG Features

7. PSS20S92F6-AG Applications

8. PSS20S92F6-AG Installation Guidelines

9. Similar Parts of PSS20S92F6-AG

10. PSS20S92F6-AG Package Outlines

11. Manufacturer Details

12. Conclusion

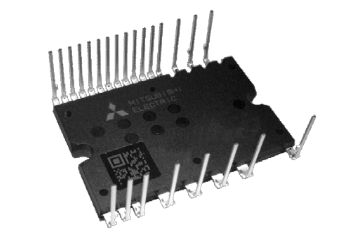

PSS20S92F6-AG

PSS20S92F6-AG Overview

The PSS20S92F6-AG PSS20S92F6-AG Powerex Inc. MOD IPM 6-PAC 20A 600V DIP In Stock: 2156 pcs from Mitsubishi is a robust intelligent power module (IPM) tailored for 3-phase inverter applications, featuring integrated IGBT devices with a 20A current rating and a design suited for 600V systems. This module is equipped with built-in gate drive circuitry and a suite of protection features, including overcurrent, short-circuit protection, Undervoltage lockout, and a fault signal output, ensuring a high level of reliability and functionality. Its compact, PCB-mountable package with integrated heatsink capability makes it perfectly suited for various applications such as industrial motor drives, HVAC systems, pumps, fans, and servo controls.

If you're seeking dependable and efficient power solutions for your business, the PSS20S92F6-AG offers an excellent opportunity. Place your bulk orders now to take advantage of this advanced technology in your systems!

Integrated Drive & Protection Functions

Function	Description
For P-side	Drive circuit, High voltage high-speed level shifting, Control supply under-voltage (UV) protection
For N-side	Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC)
Fault signaling	Corresponding to SC fault (N-side IGBT), UV fault (N-side supply), and OT fault
Temperature output	Outputting LVIC temperature by analog signal ( PSS20S92F6-AG PSS20S92F6-AG Powerex Inc. MOD IPM 6-PAC 20A 600V DIP In Stock: 2156 pcs only)
Input interface	3, 5V line, Schmitt trigger receiver circuit (High Active)
UL Recognized	UL1557, File E323585

Internal Circuit of PSS20S92F6-AG

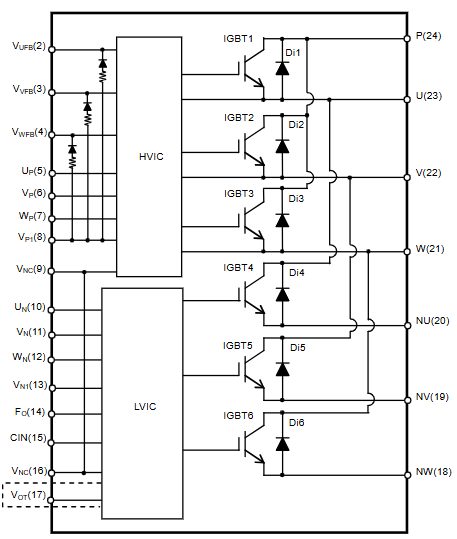

The internal circuit of the PSS20S92F6-AG PSS20S92F6-AG Powerex Inc. MOD IPM 6-PAC 20A 600V DIP In Stock: 2156 pcs illustrates a highly integrated design that combines power and control elements for efficient 3-phase motor drive applications. At the heart of the module are six IGBT transistors (IGBT1–IGBT6), each paired with a fast recovery diode (Di1–Di6), forming a three-phase inverter bridge. These switches are controlled by two key blocks: the HVIC (High Voltage Integrated Circuit) and LVIC (Low Voltage Integrated Circuit).

The HVIC manages the high-side IGBTs, using isolated gate drive signals and protection mechanisms for each phase output (U, V, W). It receives input signals through control pins (U-F, V-F, W-F) and ensures safe switching with features like undervoltage lockout. The LVIC is responsible for controlling the low-side IGBTs, processing signals from input terminals (UIN, VIN, WIN), and protection feedback (Fc, CIN). It also monitors fault conditions and generates fault output signals (VFO).

Example of Application Circuit of PSS20S92F6-AG

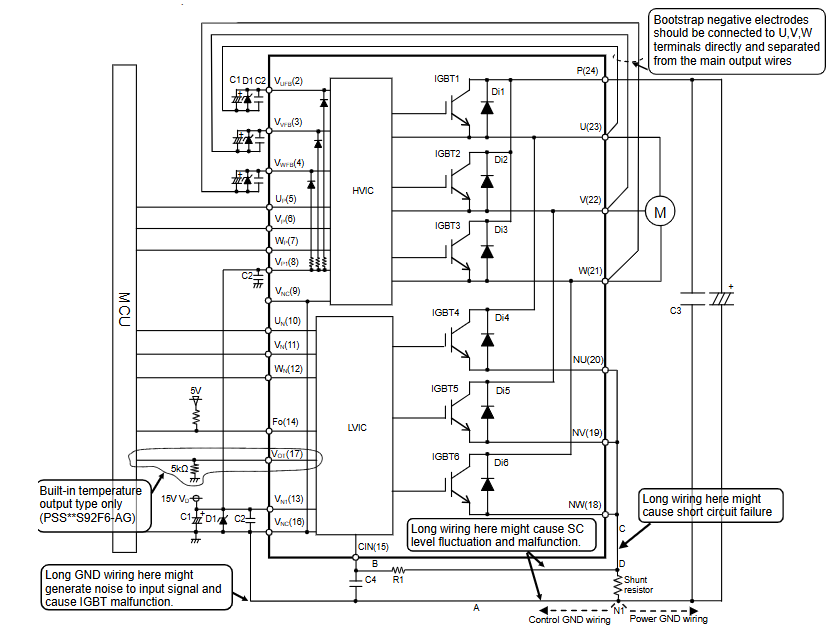

The example application circuit of the PSS20S92F6-AG PSS20S92F6-AG Powerex Inc. MOD IPM 6-PAC 20A 600V DIP In Stock: 2156 pcs demonstrates how the module is integrated into a 3-phase motor drive system. The circuit shows the connection of the IGBT inverter bridge to the motor terminals (U, V, W), powered by a DC supply across terminals P and the negative rails (NU, NV, NW). The high-voltage side is driven by the HVIC, while the low-voltage side is managed by the LVIC, both receiving control signals from a microcontroller (MCU).

Main components like bootstrap capacitors (C1, C2) are placed to ensure proper gate drive supply for the high-side IGBTs. Capacitor C3 represents the DC bus smoothing capacitor. The diagram also highlights critical wiring considerations, warning that long ground or output wiring may induce noise, short circuits, or signal fluctuations, potentially causing malfunction. Proper routing of bootstrap and ground lines is emphasized to maintain stable operation.

PSS20S92F6-AG Technical Details

Maximum Ratings

Symbol	Parameter	Condition	Ratings	Unit
INVERTER PART
V_CC	Supply voltage	Applied between P-NU, NV, NW	450	V
V_CC(surge)	Supply voltage (surge)	Applied between P-NU, NV, NW	500	V
V_CES	Collector-emitter voltage	—	600	V
±I_c	Each IGBT collector's current	T_C= 25°C	20	A
±I_cp	Each IGBT collector's current (peak)	T_C= 25°C, less than 1ms	40	A
P_C	Collector dissipation	T_C= 25°C, per 1 chip	33.3	W
T_j	Junction temperature	—	-30 ~ +150	°C
CONTROL (PROTECTION) PART
V_DD	Control supply voltage	Applied between V_P1–V_NC, V_H–V_NC	20	V
V_DB	Control supply voltage	Applied between U_RES-U, V_RES-V, W_RES-W	20	V
V_IN	Fault input voltage	Applied between U_P, V_P–V_PC, U_N, V_N–V_NC	-0.5 ~ V_D+0.5	V
V_FO	Fault output voltage	Applied between F_O–V_NC	-0.5 ~ V_D+0.5	V
I_FO	Fault output current	Sink current at F_O terminal	1	mA
V_SC	Current sensing input voltage	Applied between CIN–V_NC	-0.5 ~ V_D+0.5	V
TOTAL SYSTEM
V_CC(PROT)	Self-protection supply voltage limit (Short circuit protection capability)	V_D = 13.5 ~ 16.5V, Inverter Part, T_j = 125°C, non-repetitive, less than 2µs	400	V
T_C	Module case operation temperature	The measurement point of T_C	-30 ~ +100	°C
T_stg	Storage temperature	—	-40 ~ +125	°C
V_ISO	Isolation voltage	60Hz, Sinusoidal, AC 1min, between connected all pins and heat sink plate	1500	Vrms

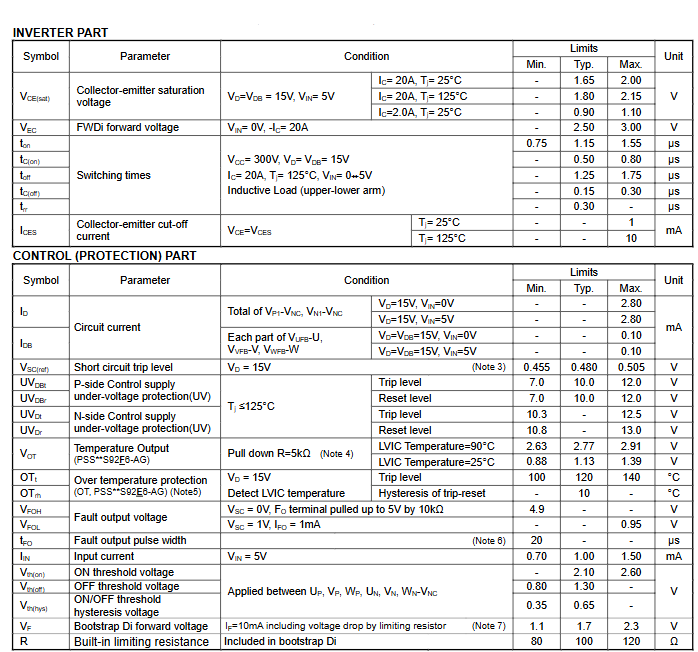

Electrical Characteristics

PSS20S92F6-AG Features

High Voltage Tolerance

The module is capable of handling high voltages, making it suitable for applications in industrial power supplies and inverters.

Enhanced Thermal Performance

It includes an advanced thermal management system that ensures reliable operation even under high-temperature conditions. This feature is crucial for maintaining performance and longevity in demanding environments.

Integrated Protection Features

This module comes equipped with multiple protection features, such as over-current, over-voltage, under-voltage, and thermal shutdown, which safeguard the device and the system it is part of from potential damage.

High-Speed Switching

The PSS20S92F6-AG PSS20S92F6-AG Powerex Inc. MOD IPM 6-PAC 20A 600V DIP In Stock: 2156 pcs supports high-speed switching, which enhances the efficiency of power conversion and reduces energy losses. This is particularly beneficial in applications requiring frequent power adjustments.

Low On-Resistance

With its low on-resistance, the module minimizes conduction losses, which improves overall efficiency and performance in power applications.

Compact Design

Its compact design enables integration into smaller and more space-constrained applications, providing greater flexibility in system design.

Easy Integration

The module features user-friendly interfaces that facilitate easy integration into various circuit designs, reducing development time and simplifying assembly processes.

PSS20S92F6-AG Applications

Industrial Motor Drives

The module is used in industrial motor drives where high voltage and efficient power management are crucial. Its high-speed switching capabilities enable precise control over motor speed and torque in heavy machinery.

Renewable Energy Systems

In renewable energy applications such as solar inverters and wind turbine converters, the PSS20S92F6-AG PSS20S92F6-AG Powerex Inc. MOD IPM 6-PAC 20A 600V DIP In Stock: 2156 pcs helps in efficiently converting and controlling the power extracted from renewable sources, optimizing energy output.

Uninterruptible Power Supplies (UPS)

For UPS systems, reliability and efficiency are paramount. The module's integrated protection features and high-speed switching enhance the reliability and efficiency of UPS systems, ensuring stable power supply during outages.

Electric Vehicle (EV) Chargers

The compact design and high efficiency of the PSS20S92F6-AG make it suitable for use in electric vehicle charging stations, where space optimization and energy efficiency are important.

Power Factor Correction (PFC) Modules

It is also utilized in power factor correction modules to improve the efficiency of power systems by reducing the phase difference between voltage and current, enhancing the overall power quality.

PSS20S92F6-AG Installation Guidelines

• Ensure the installation area is clean and free of dust or debris to avoid any contamination on the module.

• Verify that the mounting surface is flat and thermally conductive to enhance heat dissipation.

• Use thermal interface materials, such as thermal grease or pads, to improve heat transfer from the module to the heatsink.

• Secure the module onto the heatsink using appropriate fasteners, ensuring even pressure distribution to avoid physical stress.

• Connect the power terminals following the polarity guidelines.

• Apply the correct torque to terminal screws as specified in the datasheet to ensure reliable electrical connections.

• Keep the power module away from high-voltage components to minimize electromagnetic interference.

• Ensure adequate clearance around the module for air circulation, aiding in cooling during operation.

Similar Parts of PSS20S92F6-AG

• FF150R12Ke3g FF150R12Ke3g INFINEON IGBT Modules In Stock: 36200 pcs

• CM300DY-24H CM300DY-24H Powerex Inc. IGBT MOD 1200V 300A 2100W In Stock: 40200 pcs

• PM50RLA120 PM50RLA120 Powerex Inc. MOD IPM L-SER 7PAC 1200V 50A In Stock: 62 pcs

• FZ1200R12HP4 FZ1200R12HP4 INFINEON IGBT Modules In Stock: 92100 pcs

• SPMWHT541MD5WAP0S0

PSS20S92F6-AG Package Outlines

Terminal No.	Code
1-A	NC (V_NC)
1-B	NC (V_P1)
2	V_DB
3	V_RES
4	V_FREE
5	U_P
6	V_P
7	W_P
8	V_NC
9	V_UN *1
10	V_N
11	W_N
12	U_H
13	V_H
14	F_O
15	CIN
16	V_NC *1
17	NC / V_OT *2
18	V_NC
19	NV
20	NW
21	NU
22	W
23	U
24	P
25	NC

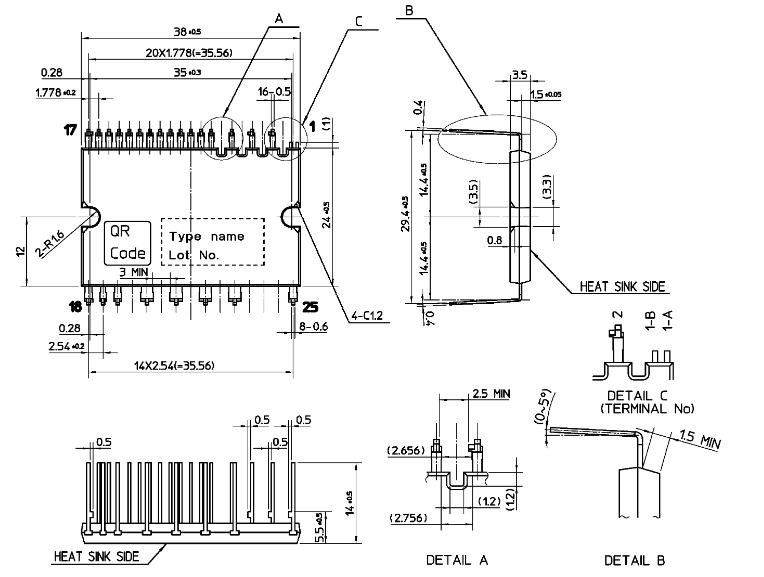

The package outline diagram for the PSS20S92F6-AG PSS20S92F6-AG Powerex Inc. MOD IPM 6-PAC 20A 600V DIP In Stock: 2156 pcs shows the physical structure and key mechanical specifications of the module, which is designed for easy mounting and reliable heat dissipation. The module has a rectangular form factor with clearly marked terminal positions and pin arrangements. Terminal pins are placed with precise 2.54 mm spacing, totaling 20 pins in a straight line for secure and stable connections to the PCB. The module height, including the heat sink interface, is approximately 29.4 mm, allowing for compact installation in industrial power circuits.

The side views show the module’s thermal management design, with a finned structure at the base to enhance heat dissipation. Screw holes with countersunk areas (4-C1.2) are provided for secure attachment to a heat sink. The detailed sections (A, B, and C) show the curvature and positioning of the pins, ensuring proper spacing and mechanical clearance. Terminal markings 1-A, 1-B, and 2 help prevent wiring mistakes. Additionally, the flat surfaces are reserved for QR codes, type names, and lot numbers for easy identification during installation and maintenance.

Manufacturer Details

Mitsubishi a leading manufacturer in the semiconductor industry, specializes in the development and production of advanced power modules like the PSS20S92F6-AG PSS20S92F6-AG Powerex Inc. MOD IPM 6-PAC 20A 600V DIP In Stock: 2156 pcs . Their capabilities extend to integrating IGBT technology, which ensures high efficiency and reliability in power electronics applications. This focus on quality and innovation makes the PSS20S92F6-AG a preferred choice for applications requiring robust power management solutions.

Conclusion

The PSS20S92F6-AG PSS20S92F6-AG Powerex Inc. MOD IPM 6-PAC 20A 600V DIP In Stock: 2156 pcs is top-notch for managing high power safely and efficiently. It fits perfectly into various machines, from industrial equipment to energy systems, making operations smooth and reliable. Adding this device to your offerings could mean better performance and more happy customers. Consider stocking up on the PSS20S92F6-AG to keep up with the latest in power management technology.
