The MRA4005T3G is a general-purpose single rectifier diode manufactured by onsemi (formerly AMI Semiconductor), designed to provide reliable power conversion in a compact surface-mount package. This discrete semiconductor component falls within the diodes-rectifiers-single category and is engineered to address common design challenges including space constraints on PCBs, thermal management requirements, and the need for dependable rectification in medium-voltage applications.
This device features a maximum DC reverse voltage rating of 600V and handles an average rectified current of 1A, making it suitable for various power supply and voltage regulation tasks. The diode exhibits a maximum forward voltage drop of 1.1V at 1A current, which represents a reasonable trade-off between efficiency and performance for standard recovery applications. With a reverse leakage current of just 10µA at 600V, it maintains excellent blocking characteristics when reverse-biased. The component utilizes standard recovery technology with switching speeds greater than 500ns at currents above 200mA, appropriate for line-frequency rectification and general-purpose switching applications.
Housed in a DO-214AC SMA (Surface Mount Assembly) package, this RoHS3-compliant component is designed for surface-mount installation, facilitating automated assembly processes and enabling high-density circuit layouts. The operating junction temperature range spans from -55°C to 175°C, ensuring reliable performance across demanding environmental conditions from extreme cold to high-temperature industrial environments.
The primary advantages of this rectifier include its compact footprint for space-efficient designs, robust voltage handling capability for medium-voltage circuits, low leakage current for improved efficiency during blocking states, and wide temperature tolerance for diverse operating environments. It's supplied in tape and reel packaging with quantities of 820,100 units, making it ideal for high-volume manufacturing operations.
This diode finds application in AC-to-DC power supplies, battery charging circuits, voltage regulation modules, industrial control systems, consumer electronics, automotive electronics, and general rectification tasks where standard recovery speeds are acceptable.
Equivalent and alternative models include the 1N4005 series in through-hole packages, the S1G through S1M series from various manufacturers offering similar ratings in SMA packages, Vishay's VS-1EGP60 series, Diodes Incorporated's S1A-S1M family, and Fairchild/onsemi's RS1A-RS1M series, all providing comparable 600V, 1A rectification capabilities with standard recovery characteristics.
MRA4005T3G Key Technical Attributes
Voltage - DC Reverse (Vr) (Max): 600V
Current - Average Rectified (Io): 1A
Surface Mount Package: DO-214AC, SMA
MRA4005T3G Packing Size

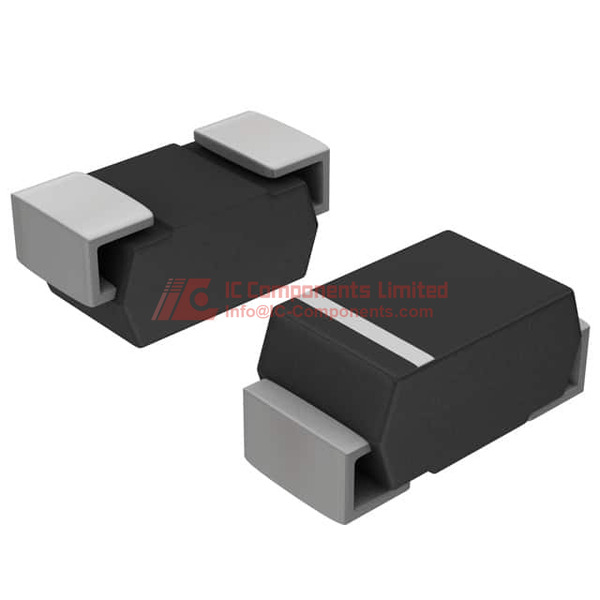

The MRA4005T3G diode is delivered in the industry-standard SMA (DO-214AC) package, making it ideal for high-density PCB layouts and automated production. Its tape & reel packaging supports large-volume installations, while the physical dimensions ensure compatibility with compact circuit boards requiring surface-mount components. This device features a well-defined pin configuration for simple placement and soldering, and the SMA case offers excellent thermal efficiency to dissipate heat during operation.
MRA4005T3G Application
This general-purpose rectifier diode is widely used in switched-mode power supplies, battery chargers, signal rectification circuits, and reverse polarity protection for industrial electronics, consumer devices, and automotive systems. Its robust electrical specifications enable reliable performance in both low and high-voltage environments.
MRA4005T3G Features
The MRA4005T3G boasts a maximum continuous reverse voltage of 600V and a steady average forward current of 1A, offering strong protection against voltage surges and transients. Fast recovery time (>500ns) improves efficiency in high-speed switching circuits, and its low forward voltage (1.1V @ 1A) enhances power savings in end applications. The diode exhibits minimal reverse leakage current, making it suitable for circuits sensitive to energy loss and ensuring stable operation over a wide temperature range from -55°C to +175°C. RoHS3 compliance guarantees adherence to stringent environmentally friendly manufacturing standards.
MRA4005T3G Quality and Safety Features
Engineered for high reliability, the MRA4005T3G operates safely within extreme temperature ranges and harsh conditions, reducing the risk of thermal runaway and breakdown. Its surface-mount design supports secure connections on PCBs, minimizing mechanical stress and vibration-related failures. Full RoHS3 compliance assures users of its low toxicity and safety in eco-conscious applications.
MRA4005T3G Compatibility
This rectifier diode is universally compatible with standard SMA surface-mount sockets and is well-suited for integration into existing designs using DO-214AC footprints. As part of the MRA4005 base series, it maintains consistent electrical and physical parameters for streamlined replacement or upgrade processes.
MRA4005T3G Datasheet PDF
We provide the most authoritative datasheet for the MRA4005T3G on our website, enabling customers to access comprehensive electrical characteristics, application guidance, and design recommendations. For detailed product specifications and trusted technical documentation, please download the datasheet directly from this page.
