The NXP Semiconductors MK20DN512ZVMC10 is a high-performance 32-bit microcontroller from the Kinetis K20 series, designed to meet demanding embedded system requirements. Built around the ARM Cortex-M4 core, this microcontroller delivers robust processing capabilities with a 100MHz clock speed and advanced computational features.
Engineered for versatility, the microcontroller offers comprehensive connectivity options including CAN bus, USB, UART, SPI, and SD interfaces, making it ideal for complex communication-intensive applications. Its integrated peripherals include DMA, PWM, watchdog timer, and low-voltage detection, providing developers with flexible system design capabilities.
The device features substantial onboard memory with 512KB of Flash program memory and 128KB of RAM, enabling sophisticated software implementations across various industrial and consumer electronics domains. Designed for reliability, it operates across an extended temperature range of -40°C to 105°C and supports a supply voltage between 1.71V and 3.6V.
Key technical highlights include 86 I/O pins, advanced data converters with 38x16-bit analog-to-digital and 2x12-bit digital-to-analog capabilities, and an internal oscillator. The microcontroller is packaged in a compact 121-MAPBGA (8x8) format, making it suitable for space-constrained designs.
Potential application areas include automotive electronics, industrial control systems, consumer devices, and embedded computing solutions requiring high-performance, energy-efficient processing. Its lead-free, RoHS-compliant design ensures environmental sustainability and broad market compatibility.
Equivalent or alternative models in the Kinetis series include the MK20DX256, MK22FN512, and MK64FN1M0, which offer similar architectural features with variations in memory size, clock speed, and specific peripheral configurations.
The microcontroller's robust design, comprehensive feature set, and flexible connectivity make it an excellent choice for engineers seeking a powerful, efficient embedded processing solution across multiple application domains.
MK20DN512ZVMC10 Key Technical Attributes
ARM Cortex-M4 Core Processor
32-Bit Core Size
Speed: 100MHz
MK20DN512ZVMC10 Packing Size

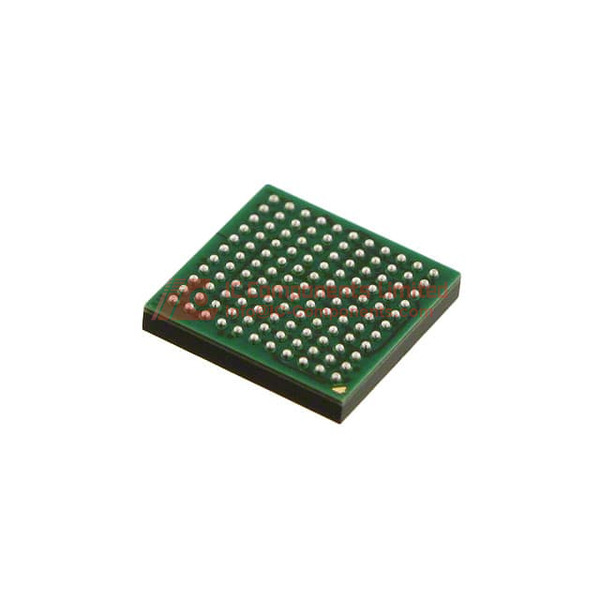

121-MAPBGA (8x8) Package
Material: Tray
Operating Temperature: -40°C ~ 105°C (TA)
MK20DN512ZVMC10 Application
Embedded Microcontroller for Industrial Controls, Consumer Electronics, Automotive systems
MK20DN512ZVMC10 Features
The MK20DN512ZVMC10 microcontroller by NXP Semiconductors/Freescale is equipped with a 32-bit ARM Cortex-M4 processor. It maintains a clock speed of 100MHz and includes advanced connectivity interfaces like CANbus, EBI/EMI, I²C, IrDA, SD, SPI, UART/USART, USB, and USB OTG. For applications requiring data processing, it includes peripherals such as DMA, IS, LVD, POR, PWM, WDT, and data converters featuring A/D 38x16b and D/A 2x12b. The microcontroller operates on a voltage supply between 1.71 V to 3.6 V and supports an extensive I/O number of 86. It showcases a generous program memory size of 512KB (512K x 8) with FLASH memory technology.
MK20DN512ZVMC10 Quality and Safety Features
Lead-free / RoHS Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
MK20DN512ZVMC10 Compatibility
Compatible with industrial-grade requirements for robust thermal and security features. Suitable for high reliability applications in automotive, consumer electronics, and industrial automation.
MK20DN512ZVMC10 Datasheet PDF
Access the most authoritative, comprehensive datasheet for the MK20DN512ZVMC10 directly from our website. We recommend downloading the detailed PDF to assist in your project planning and execution.
