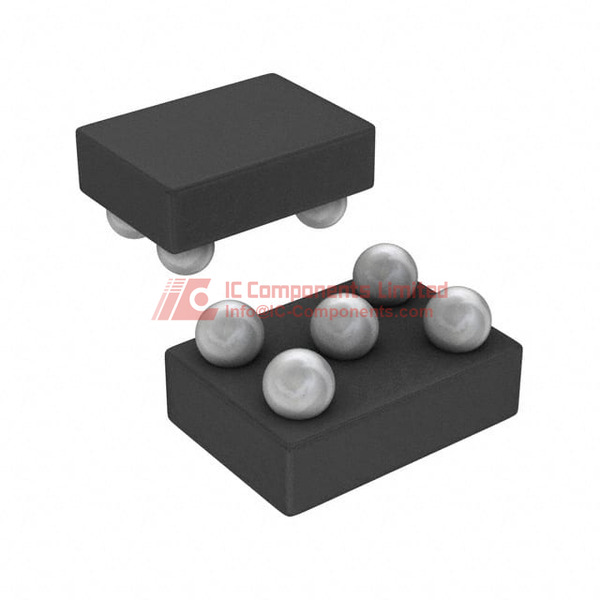

5-DSBGA-YZU.jpg ImageView larger image
Image may be representation.
See specs for product details.

TPS79918YZUR

In Stock 44400 pcs Reference Price(In US Dollars)
1+
$0.3527
Manufacturer Part Number:
TPS79918YZUR
Manufacturer / Brand
Texas Instruments
Part of Description:
IC REG LINEAR 1.8V 200MA 5DSBGA
Datasheets:
TPS79918YZUR(1).pdfTPS79918YZUR(2).pdfTPS79918YZUR(3).pdfTPS79918YZUR(4).pdfTPS79918YZUR(5).pdfTPS79918YZUR(6).pdf
Lead Free Status / RoHS Status:
ROHS3 Compliant
Stock Condition:
New original, 44400 pcs Stock Available.
ECAD Model:
Ship From:
Hong Kong
Shipment Way:
DHL/Fedex/TNT/UPS

Inquiry Online

Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Info@IC-Components.com
Part Number
Manufacturer
Require Quantity
Target Price(USD)
Company Name
Contact Name
E-mail
Phone
Message
Please enter Verify Code and click "Submit"
Part Number TPS79918YZUR
Manufacturer / Brand Texas Instruments
Stock Quantity 44400 pcs Stock
Category Integrated Circuits (ICs) > Power Management (PMIC) - Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Description IC REG LINEAR 1.8V 200MA 5DSBGA
Lead Free Status / RoHS Status: ROHS3 Compliant
RFQ TPS79918YZUR Datasheets TPS79918YZUR Details PDF
TPS79918YZUR Details PDF for FR.pdf
TPS79918YZUR Details PDF for KR.pdf
TPS79918YZUR Details PDF for IT.pdf
TPS79918YZUR Details PDF for ES.pdf
TPS79918YZUR Details PDF for DE.pdf
Voltage Dropout (Max) 0.18V @ 200mA
Voltage - Output (Min/Fixed) 1.8V
Voltage - Output (Max) -
Voltage - Input (Max) 6.5V
Supplier Device Package 5-DSBGA
Series -
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Package / Case 5-UFBGA, DSBGA
Package Tape & Reel (TR)
PSRR 70dB ~ 38dB (100Hz ~ 100kHz)
Output Type Fixed
Output Configuration Positive
Operating Temperature -40°C ~ 125°C
Number of Regulators 1
Mounting Type Surface Mount
Current - Quiescent (Iq) 60 µA
Current - Output 200mA
Control Features Enable
Base Product Number TPS79918
