The LM27342QMYX/NOPB is a high-performance, integrated circuit (IC) that functions as a Buck Switching Regulator. This PMIC (Power Management Integrated Circuit) device is designed to provide a positive, adjustable output voltage of up to 18V and a maximum output current of 2A.

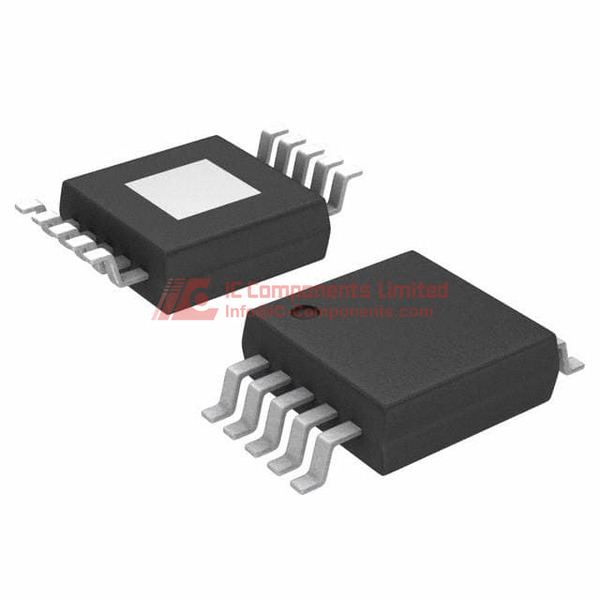

Manufactured by Luminary Micro / Texas Instruments, this IC is part of the Automotive, AEC-Q100 series, making it suitable for a range of automotive and industrial applications that require a reliable and efficient DC-DC conversion solution. The device is housed in a 10-MSOP-PowerPad package, which offers a compact footprint and enhanced thermal management through the exposed pad.
The key features of the LM27342QMYX/NOPB include:
- Positive Adjustable Output Voltage: Ranging from 1V to 18V, providing flexibility for various system requirements.
- High Output Current Capability: Delivering up to 2A of output current, enabling the device to power a wide range of loads.
- High Switching Frequency: Operating at 2MHz, allowing for the use of smaller external components and improved transient response.
- Wide Input Voltage Range: Accepts input voltages from 3V to 20V, making it compatible with a variety of power sources.
- Automotive and Industrial Qualification: Designed to meet the stringent requirements of the AEC-Q100 standard, ensuring reliable performance in harsh environments.
- RoHS Compliance: Lead-free and RoHS-compliant, making it environmentally friendly.
The LM27342QMYX/NOPB is well-suited for applications that require efficient and reliable DC-DC conversion, such as:
- Automotive electronics: Power supplies for infotainment systems, driver assistance modules, and various other vehicle subsystems.
- Industrial automation and control systems: Powering sensors, controllers, and other electronic components.
- Medical devices: Providing power to portable and wearable medical equipment.
- General-purpose power supplies: Suitable for a wide range of applications that require a compact, high-performance DC-DC converter.
Equivalent or alternative models to the LM27342QMYX/NOPB include:
1. LM27342QMYXR/NOPB: Identical to the LM27342QMYX/NOPB, but with a different packaging option (Tape & Reel).
2. LM27342QMYX: Similar to the LM27342QMYX/NOPB, but without the "/NOPB" suffix, indicating a lead-containing version.
3. LM27342QMYXE/NOPB: Identical to the LM27342QMYX/NOPB, but with an extended operating temperature range of -40°C to 150°C.
4. LM27342QMYX-1.8/NOPB: Variant with a fixed output voltage of 1.8V instead of the adjustable range.
5. LM27342QMYX-3.3/NOPB: Variant with a fixed output voltage of 3.3V instead of the adjustable range.
These equivalent models may offer slightly different features or packaging options to cater to specific design requirements, but they share the core functionality and performance characteristics of the LM27342QMYX/NOPB.
LM27342QMYX/NOPB Key Technical Attributes
Manufacturer Part Number: LM27342QMYX/NOPB
Manufacturer: Luminary Micro / Texas Instruments
Main Category: Integrated Circuits (ICs)
LM27342QMYX/NOPB Packing Size
Packing Type: Tape & Reel (TR)
Package Material: 10-MSOP-PowerPad
Thermal Characteristics: Operating Temperature -40°C ~ 125°C (TJ)
Electrical Properties: Voltage - Input (Max): 20V, Current - Output: 2A
LM27342QMYX/NOPB Application
Used primarily as a Voltage Regulator in DC DC Switching applications
Suitable for automotive applications compliant with AEC-Q100 standards
LM27342QMYX/NOPB Features
The LM27342QMYX/NOPB is a Buck Switching Regulator IC designed for step-down voltage regulation. It is capable of handling an input voltage up to 20V and provides an adjustable output voltage from 1V to 18V. The output current capability is up to 2A. The device operates at a switching frequency of 2MHz, promoting efficient energy conversion and minimized external component size. It is available in a compact 10-MSOP package with an exposed pad for enhanced thermal management.
LM27342QMYX/NOPB Quality and Safety Features
The device adheres to RoHS compliance, indicating it is lead-free.
Moisture Sensitivity Level (MSL) is rated at 3 (168 Hours), ensuring stability and reliability under various environmental conditions.
LM27342QMYX/NOPB Compatibility
Compatible with a wide range of input voltages (from 3V to 20V)
Efficient for applications requiring up to 2A of output current.
LM27342QMYX/NOPB Datasheet PDF
For detailed and authoritative specifications and operational guidelines, download the most reliable datasheet PDF for LM27342QMYX/NOPB directly from our website on the current product page.
