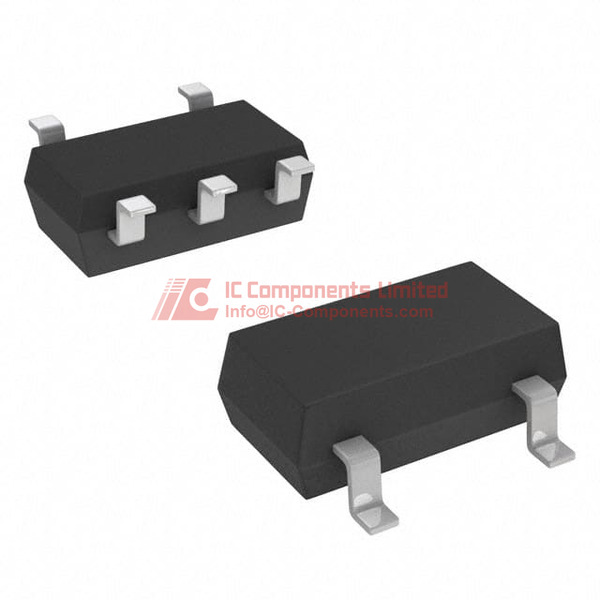

SOT25.jpg ImageView larger image
Image may be representation.
See specs for product details.

SP6213EC5-L-2-85

Manufacturer Part Number:
SP6213EC5-L-2-85
Manufacturer / Brand
MaxLinear, Inc.
Part of Description:
IC REG LINEAR 2.85V 100MA SC70-5
Datasheets:
SP6213EC5-L-2-85(1).pdfSP6213EC5-L-2-85(2).pdf
Lead Free Status / RoHS Status:
RoHS Compliant
Stock Condition:
New original, 25486 pcs Stock Available.
ECAD Model:
Ship From:
Hong Kong
Shipment Way:
DHL/Fedex/TNT/UPS

Inquiry Online

Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Info@IC-Components.com
Part Number
Manufacturer
Require Quantity
Target Price(USD)
Company Name
Contact Name
E-mail
Phone
Message
Please enter Verify Code and click "Submit"
Part Number SP6213EC5-L-2-85
Manufacturer / Brand MaxLinear, Inc.
Stock Quantity 25486 pcs Stock
Category Integrated Circuits (ICs) > Power Management (PMIC) - Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Description IC REG LINEAR 2.85V 100MA SC70-5
Lead Free Status / RoHS Status: RoHS Compliant
RFQ SP6213EC5-L-2-85 Datasheets SP6213EC5-L-2-85 Details PDF
SP6213EC5-L-2-85 Details PDF for FR.pdf
SP6213EC5-L-2-85 Details PDF for KR.pdf
SP6213EC5-L-2-85 Details PDF for IT.pdf
SP6213EC5-L-2-85 Details PDF for DE.pdf
SP6213EC5-L-2-85 Details PDF for ES.pdf
Voltage Dropout (Max) 0.5V @ 100mA
Voltage - Output (Min/Fixed) 2.85V
Voltage - Output (Max) -
Voltage - Input (Max) 6V
Supplier Device Package SC-70-5
Series -
Protection Features Over Current, Over Temperature
Package / Case 5-TSSOP, SC-70-5, SOT-353
Package Bulk
PSRR 70dB ~ 40dB (100Hz ~ 400kHz)
Output Type Fixed
Output Configuration Positive
Operating Temperature -40°C ~ 125°C
Number of Regulators 1
Mounting Type Surface Mount
Current - Supply (Max) 250 µA
Current - Quiescent (Iq) 125 µA
Current - Output 100mA
Control Features Enable
