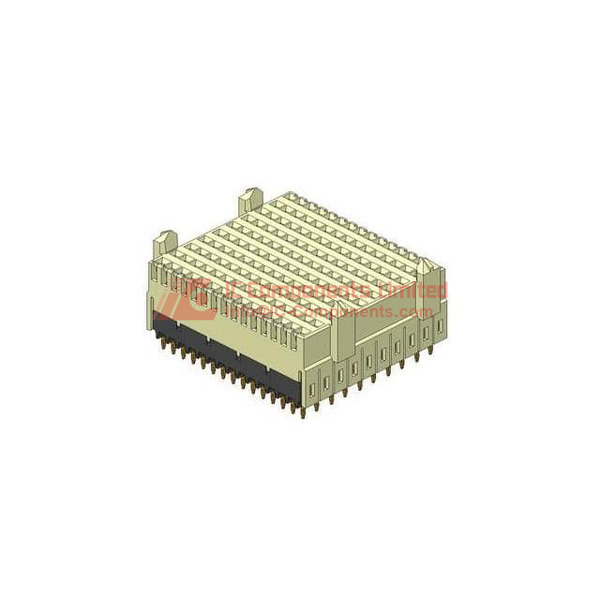

The Amphenol Aorora 10124470-102LF is a high-performance backplane connector designed for specialized interconnect applications requiring robust signal integrity and reliable data transmission. As a receptacle-style connector within the Connectors and Interconnects category, specifically classified under Backplane Connectors - Specialized, this component addresses critical design challenges in high-speed digital systems where maintaining signal quality across multiple connections is paramount.
This female socket receptacle features 150 positions arranged in a 15-row by 10-column configuration with a compact 0.079-inch (2.00mm) pitch, enabling high-density board-to-board connections while maximizing space efficiency on printed circuit boards. The connector belongs to the Airmax VS2 series and is specifically engineered for daughtercard applications, making it ideal for modular system architectures where expansion cards or secondary boards need to interface with main backplanes. The through-hole mounting type with press-fit termination provides exceptional mechanical stability and eliminates the need for soldering, simplifying assembly processes while ensuring reliable electrical connections that can withstand mechanical stress and vibration.
Key specifications include gold contact finish for superior conductivity and corrosion resistance, an operating temperature range of -55°C to 85°C for demanding environmental conditions, and UL94 V-0 material flammability rating ensuring compliance with stringent safety standards. The connector's black and natural color scheme provides clear visual identification during assembly and maintenance. With all 150 positions loaded, this high-speed connector style delivers comprehensive connectivity for complex signal routing requirements. The product is RoHS compliant, meeting environmental regulations, and comes packaged in bulk quantities of 10,300 units, making it suitable for high-volume manufacturing operations.
Primary advantages include its high-density design that maximizes board real estate utilization, press-fit termination that reduces assembly time and costs, gold-plated contacts ensuring long-term reliability, and wide operating temperature range supporting deployment in harsh industrial and aerospace environments. This connector is particularly well-suited for telecommunications equipment, data center infrastructure, industrial automation systems, medical devices, and aerospace applications where high-speed data transfer and system modularity are essential. Equivalent or alternative models may include other Airmax VS2 series variants with different position counts or similar high-speed backplane connectors from manufacturers like TE Connectivity, Molex, or Samtec offering comparable pitch, position count, and performance specifications.
10124470-102LF Key Technical Attributes
Connector Type: Receptacle, Female Sockets
Number of Positions: 150
10124470-102LF Packing Size
Package: Bulk
Package / Case: Bulk
Material: High-performance thermoplastic, black and natural in color
10124470-102LF Application
This product is designed for high-speed data transmission and is ideal for daughtercard usage in advanced backplane systems. It is commonly found in telecommunications infrastructure, data centers, networking equipment, and high-end computing environments where reliable, high-density interconnect is critical.
10124470-102LF Features
The Amphenol Aorora 10124470-102LF connector embodies a robust set of features tailored for specialized high-speed interconnect applications. With 150 fully loaded positions arranged in 15 rows and 10 columns, and a fine pitch of 2.00mm, it allows for highly dense board layouts. The connector employs a press-fit termination, facilitating secure and efficient installation onto PCBs without soldering, minimizing thermal stress and assembly time. It is also engineered with a UL94 V-0 flammability rating, ensuring outstanding fire resistance. The gold-plated contacts deliver superior conductivity, high corrosion resistance, and enhanced signal integrity, essential for high-frequency and high-speed signal transmission. Its through-hole mounting type delivers robust mechanical retention, making it suitable for environments subject to vibration or shock. The Airmax VS2 series is distinguished by advanced high-speed signal capabilities, supporting data rates necessary for state-of-the-art digital systems.
10124470-102LF Quality and Safety Features
The connector is manufactured to strict quality guidelines and achieves RoHS compliance, ensuring it is free from hazardous substances. The V-0 flammability rating from UL94 provides enhanced safety against fire hazards in demanding applications. The gold contact plating guarantees reliable electrical connections and long operational life, even in harsh conditions. Its press-fit design adds another layer of security by allowing for rework or replacement without damage to the PCB, supporting sustainable assembly and maintenance procedures.
10124470-102LF Compatibility
The 10124470-102LF model from the Airmax VS2 series is highly versatile and fits seamlessly into a wide range of high-speed backplane and daughtercard interconnect systems. It is fully compatible with other components in the Airmax VS2 range, offering scalable solutions for expanding system requirements. The connector's standard dimensions and compliant mounting type facilitate integration into existing PCB layouts with minimal modification.
10124470-102LF Datasheet PDF
Our website offers the most authoritative and comprehensive datasheet for the Amphenol Aorora 10124470-102LF. We strongly encourage customers to download the official datasheet from this page to access the latest specifications, mechanical drawings, detailed electrical characteristics, and recommended usage guidelines for optimal design integration.
