The AVX 08051U101JAT2A is a high-performance ceramic capacitor designed for precision electronic applications, particularly in radio frequency (RF), microwave, and high-frequency circuits. This surface-mount multilayer ceramic capacitor (MLCC) offers exceptional reliability and performance in compact electronic designs.
Engineered with a C0G/NP0 temperature coefficient, the capacitor demonstrates remarkable stability across a wide operating temperature range from -55°C to 125°C, making it ideal for demanding electronic environments. The component features a low 100 pF capacitance with a tight ±5% tolerance, ensuring consistent electrical characteristics critical for sensitive electronic systems.
The capacitor's ultra-low equivalent series resistance (ESR) makes it particularly suited for high-frequency applications where signal integrity and minimal energy loss are paramount. Its compact 0805 (2012 Metric) package measures just 2.01mm x 1.25mm, with a maximum thickness of 1.15mm, enabling dense and space-efficient circuit design.
Constructed with surface-mount technology, this capacitor is rated for 100V and provides robust performance in RF, microwave, and high-frequency circuits. The component is packaged in a tape and reel format, facilitating easy integration into automated manufacturing processes and ensuring reliable component handling.
Designed to meet RoHS compliance standards, the capacitor represents a high-reliability solution for advanced electronic engineering, offering excellent electrical stability, compact dimensions, and superior performance in precision electronic applications.
While specific equivalent models are not explicitly detailed in the specifications, similar AVX or KYOCERA ceramic capacitors in the 0805 package with comparable C0G/NP0 characteristics would likely serve as alternative options for designers seeking comparable performance parameters.
08051U101JAT2A Key Technical Attributes
0805 package, 100V rated voltage, 100pF capacitance
C0G/NP0 dielectric, ±5% tolerance, ultra low ESR
Surface mount, MLCC, U series, RoHS information available upon request
08051U101JAT2A Packing Size

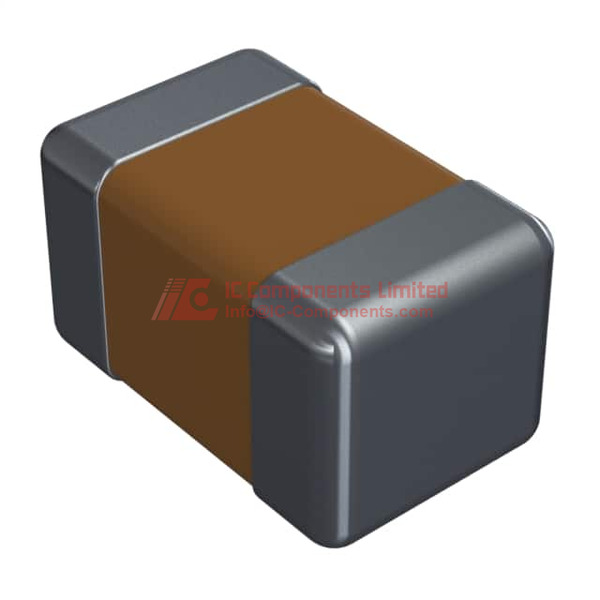

This product utilizes an 0805 (2012 Metric) surface-mount package, with dimensions of 0.079" in length by 0.049" in width (2.01mm x 1.25mm). The maximum thickness is 0.045" (1.15mm). It is supplied in tape & reel (TR) format for automated placement and is compliant with typical MLCC size and handling standards, ensuring compatibility with automated manufacturing processes. Electrical pin configuration is tailored for surface mount technology (SMT) with strong adherence to modern electronic assembly requirements. Its thermal performance is reliable, supporting operation from -55°C up to +125°C.
08051U101JAT2A Application
This AVX (KYOCERA AVX) ceramic capacitor, model 08051U101JAT2A, is engineered for high-performance applications such as RF, microwave, and high frequency circuits. It is well-suited for circuits that require precise capacitance stability, low equivalent series resistance (ESR), and consistent performance over a wide temperature range. Typical applications include filters, matching networks, oscillators, and timing circuits within broadcast, telecommunications, aerospace, and test equipment.
08051U101JAT2A Features
The 08051U101JAT2A is built with a C0G/NP0 dielectric, ensuring ultra-stable capacitance across temperature changes and applied voltage. The ±5% tolerance allows for dependable precision in demanding analog and RF circuitry. Ultra low ESR characteristics reduce signal loss and heat generation, which is essential in high-frequency power delivery scenarios. The MLCC (Multilayer Ceramic Chip Capacitor) construction supports robust electrical performance, high insulation resistance, and excellent reliability even under frequent temperature cycling and high operating voltages up to 100V. Its compact footprint makes it ideal for high-density printed circuit boards where board space is at a premium.
08051U101JAT2A Quality and Safety Features
This part meets AVX's rigorous quality standards with consistency in manufacturing and robust material selection. It operates safely within a wide temperature range of -55°C to +125°C, and its C0G/NP0 dielectric is known for non-polarity and resistance to electrical breakdown. The product’s RoHS compliance can be confirmed via inventory verification, supporting environmental and safety regulations in global markets.
08051U101JAT2A Compatibility
The 08051U101JAT2A matches industry-standard 0805 MLCC footprints and is directly compatible with automated SMT (surface-mount technology) lines and pick-and-place equipment. Its electrical and thermal properties allow seamless integration into legacy and modern RF/microwave designs, ensuring substitution flexibility with other C0G/NP0 and 100pF, 100V capacitors following JEDEC standards.
08051U101JAT2A Datasheet PDF
Our website provides the most authoritative and comprehensive datasheet for the AVX (KYOCERA AVX) 08051U101JAT2A ceramic capacitor. We highly recommend downloading the official datasheet directly from this page to ensure you have access to all engineering specifications, test conditions, recommended usage, and up-to-date compliance information for your application.
