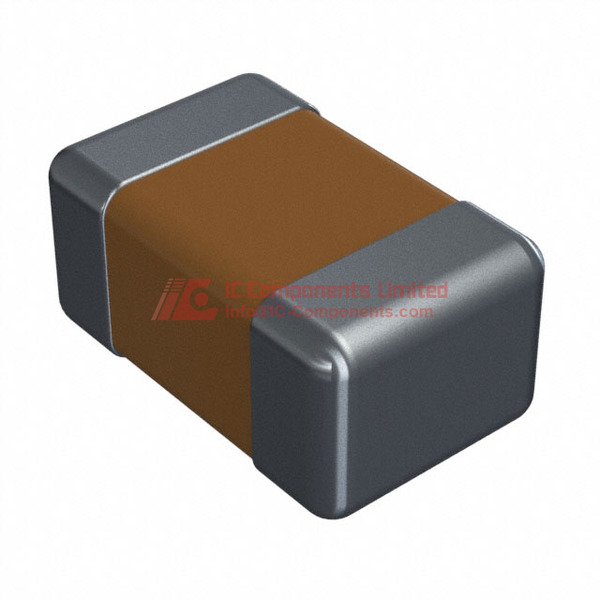

The AVX (KYOCERA AVX) 08051C331KAT2A is a high-performance ceramic capacitor designed for versatile electronic applications. This compact surface-mount multilayer ceramic capacitor (MLCC) offers exceptional reliability and precision for general-purpose electronic circuit design.
The capacitor features a robust 330pF capacitance rating with a ±10% tolerance, engineered to operate effectively across a wide temperature range from -55°C to 125°C. Its X7R temperature coefficient ensures stable performance under varying environmental conditions, making it suitable for diverse electronic systems.
Constructed with a compact 0805 (2012 Metric) package measuring 2.00mm x 1.25mm, this capacitor provides excellent space efficiency for modern electronic designs. The component is rated at 100V and manufactured using lead-free, RoHS-compliant processes, meeting contemporary environmental and regulatory standards.
Key advantages include its robust mechanical design, wide operational temperature range, and high-reliability performance. The surface-mount mounting type allows for easy integration into complex electronic circuits, supporting applications across telecommunications, consumer electronics, automotive systems, and industrial equipment.
The capacitor's tape and reel packaging facilitates streamlined manufacturing processes and ensures component protection during handling and assembly. Its small form factor and high-performance characteristics make it an ideal choice for engineers seeking compact, reliable capacitive solutions.
Equivalent models in the market might include similar X7R ceramic capacitors from manufacturers like Murata, TDK, and Samsung Electro-Mechanics, offering comparable specifications in the 0805 package size and voltage range.
08051C331KAT2A Key Technical Attributes
330pF | 100V | ±10% Tolerance | X7R | 0805 (2012 Metric)
08051C331KAT2A Packing Size

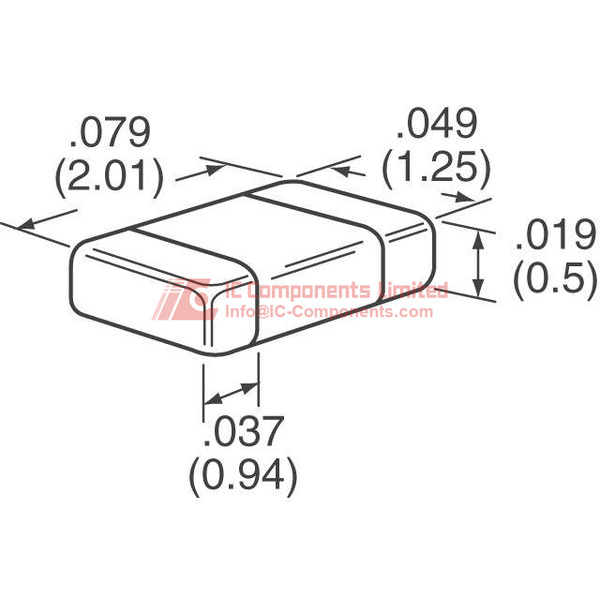

Tape & Reel (TR), 0805 Surface Mount, 0.079" x 0.049", 0.037" Max Thickness
Encapsulation
MLCC Ceramic, RoHS, Lead Free, Moisture Sensitivity Level: 1 (Unlimited)
08051C331KAT2A Application
This AVX (KYOCERA AVX) 08051C331KAT2A capacitor is particularly suitable for general-purpose circuit designs, filtering, signal coupling/decoupling, timing, and bypass applications in both consumer and industrial electronics. Its 100V rating makes it ideal for higher voltage circuits needing stable performance across a wide temperature range.
08051C331KAT2A Features
This capacitor boasts a 330pF capacitance value with a ±10% tolerance, utilizing the reliable and stable X7R dielectric, which ensures minimal variation in capacitance over -55°C to +125°C. The 0805 (2012 Metric) package allows for high-density board mounting, and its compact dimensions (2.00mm x 1.25mm, max thickness 0.94mm) are ideal for modern PCB layouts. It is supplied in tape & reel packaging for automated surface-mount assembly processes. With a rating of 100V, it handles substantial voltage stresses, making it versatile for both signal and power line applications. The MLCC construction offers excellent reliability, low ESR, low self-inductance, and a strong resistance to thermal and mechanical shocks. Its RoHS compliance, lead-free nature, and unlimited Moisture Sensitivity Level further guarantee environmental safety and long-term operational stability.
08051C331KAT2A Quality and Safety Features
This component is manufactured in compliance with the RoHS directive, ensuring it is free of hazardous substances such as lead. The unlimited moisture sensitivity level (MSL 1) ensures robust performance in environments with varying humidity. The X7R ceramic material maintains electrical properties even under rapid temperature changes, contributing to device reliability and system safety.
08051C331KAT2A Compatibility
The 08051C331KAT2A capacitor is compatible with a wide range of surface mount (SMD) manufacturing processes, suitable for both consumer and industrial electronics, including power management units, analog and digital circuit boards, and high-density PCB assemblies. Its standard 0805 package means it can be designed into existing footprints intended for 2012 metric code MLCCs.
08051C331KAT2A Datasheet PDF
Our website provides the most authoritative and detailed datasheet for the AVX (KYOCERA AVX) 08051C331KAT2A capacitor. We highly recommend that customers download the datasheet directly from the current product page to ensure you have access to comprehensive technical, mechanical, and application data.
