Dot Convention in Transformers for Accurate Circuit Analysis

The dot convention in transformers is a simple way to understand how voltage and current behave between coils. It helps identify polarity, phase, and current direction. By learning this concept, you can easily analyze circuits, avoid connection errors, and ensure transformers work correctly and safely.

Catalog

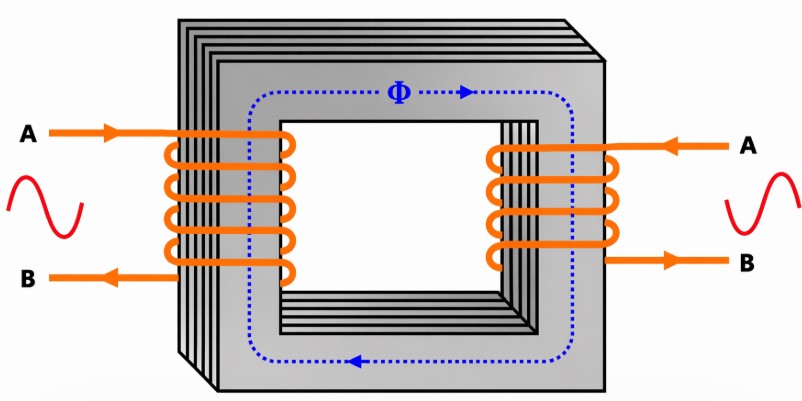

Figure 1. Dot Convention in Transformers

What Is Dot Convention in Transformers

The dot convention in transformers is a way to mark the ends of the coils to show their polarity. The dots tell you which ends of the windings act the same at the same time. If current enters the dotted end of one coil, the voltage in the other coil will be positive at its dotted end. This helps you easily understand how voltage and current are related between the two windings. The dot convention in transformers is a way of marking the windings to show their relative polarity.

Each coil has a dot placed at one terminal, and these dots indicate which ends of the windings have the same instantaneous polarity. In simple terms, if current enters the dotted terminal of one winding, the voltage induced in the other winding will be positive at its dotted terminal as well. This means both dotted ends behave similarly at the same moment.

Transformer Dot Convention Example

1. Current Enters Dotted End

Figure 2.  Current Enters Dotted End

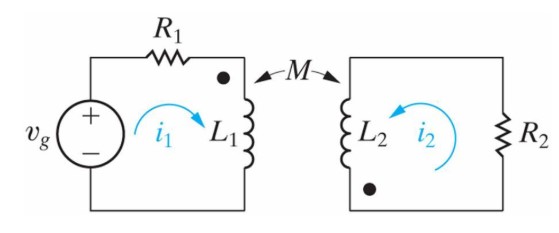

The two coils L₁ and L₂ that are magnetically coupled through mutual inductance M. The left circuit has a voltage source driving current i₁, while the right circuit has current i₂. Each coil has a dot, but they are placed on opposite ends. This means the coils have opposite polarity. When current flows in L₁, it creates a magnetic field that induces a voltage in L₂. Because the dots are opposite, the induced voltage in the second coil is reversed, so the effect is opposing, not aiding.

2. Current Enters Undotted End

Figure 3. Current Enters Undotted End

If current enters the undotted end of the primary winding, the induced voltage in the secondary reverses. The dotted end of the secondary becomes negative. → The polarity between the windings becomes opposite.

3. Same Polarity

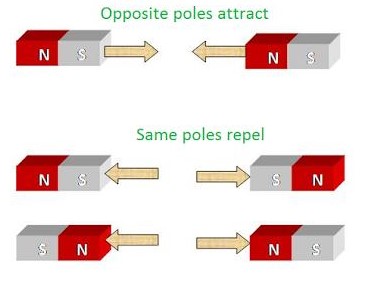

Figure 4. Same Polarity

When both windings follow the dot rule, their dotted ends increase and decrease together. → This means they are in phase and voltages add correctly in circuits.

4. Opposite Polarity

Figure 5. Opposite Polarity

When the current direction does not follow the dot rule, one dotted end is positive while the other is negative. → This means they are out of phase and voltages may cancel each other. The dot convention is used to determine voltage polarity and current direction in transformer circuits. It helps in proper connection of windings, prevents errors, and ensures correct operation when transformers are used in parallel or complex circuits.

Dot Convention in Circuit Analysis

Figure 6. Dot Convention in Circuit Analysis

In circuit analysis, dot convention shows which terminals of coupled coils have the same instantaneous polarity. That matters because it tells you whether induced voltages aid or oppose each other, whether two windings are in phase or out of phase, and whether a series connection produces voltage addition or cancellation. In transformer and coupled-inductor circuits, these markings are not just symbolic. They directly affect polarity assumptions, AC phase relationships, and the sign of the mutual voltage term in circuit equations.

Brief Rules

• If current enters the dotted terminal of one winding, the induced voltage at the dotted terminal of the other winding is positive.

• If two windings are connected dot-to-undot, their voltages aid each other. If they are connected dot-to-dot or undot-to-undot in the wrong series arrangement, the voltages can oppose each other.

• In coupled-inductor equations, the dot markings help determine whether the mutual term is added or subtracted.

Series Aiding vs Series Opposing Connections

Feature	Series Aiding Connection	Series Opposing Connection
Definition	Voltages add together	Voltages subtract from each other
Connection Method	Positive terminal of one source connected to negative of the next	Positive connected to positive (or negative to negative)
Resulting Voltage	Total voltage = sum of all source voltages	Total voltage = difference between voltages
Polarity Direction	Sources support each other	Sources oppose each other
Output Voltage Level	Higher than individual sources	Lower than the higher source
Typical Formula	( V{total} = V1 + V2 + ... )	( V{total} =
Use Case	When higher voltage is needed	When controlling or reducing voltage
Example	Two 6V batteries → 12V total	Two 6V batteries → 0V (if equal and opposing)
Effect on Current	Same current flows through all sources	Same current flows, but voltage reduced

How to Identify Dot Markings on Transformers?

Conclusion

The dot convention is an important tool for understanding and working with transformer circuits. It helps ensure correct polarity, proper connections, and accurate analysis. By following dot markings, you can prevent mistakes, improve circuit performance, and safely use transformers in different applications.
